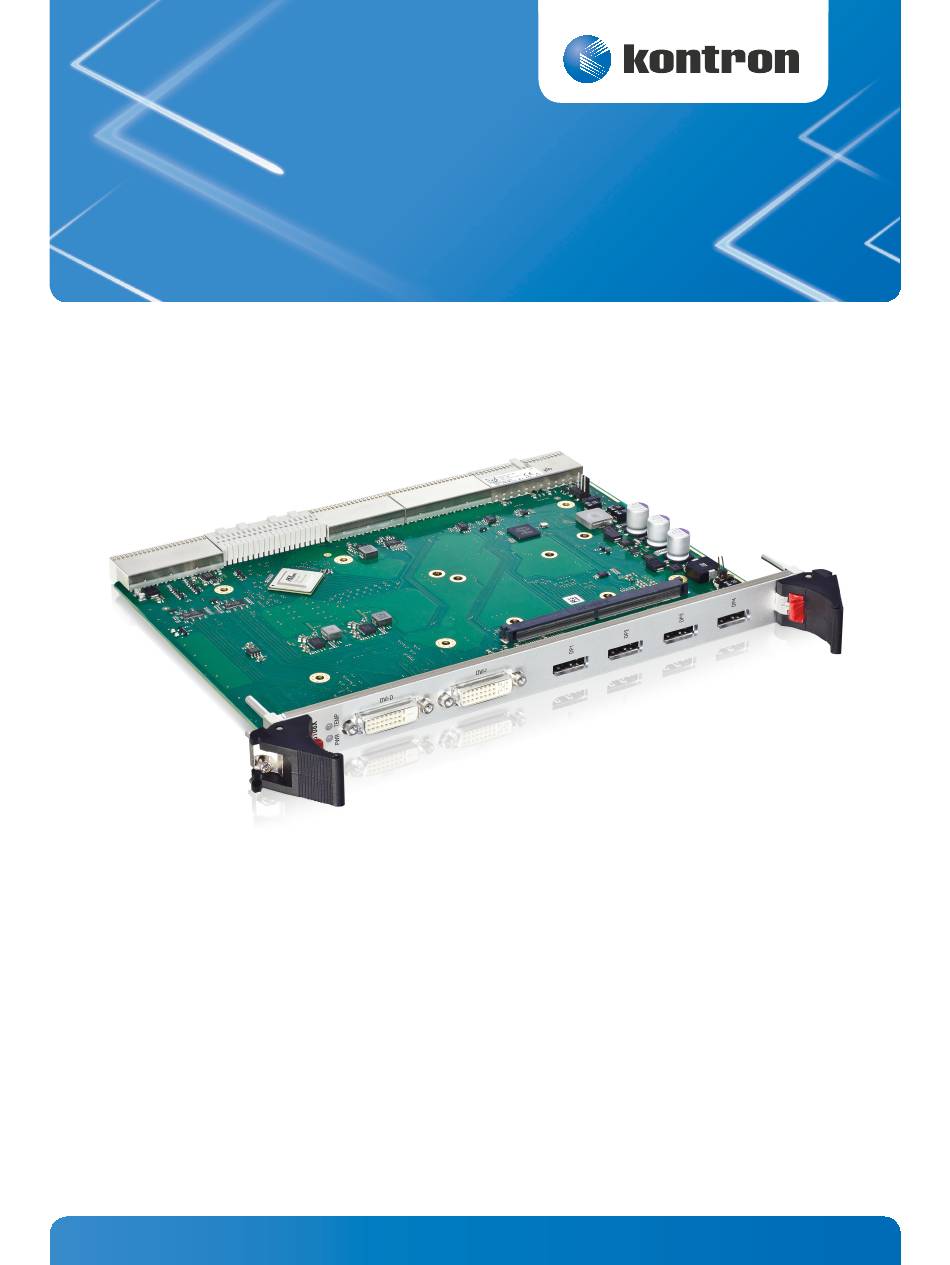

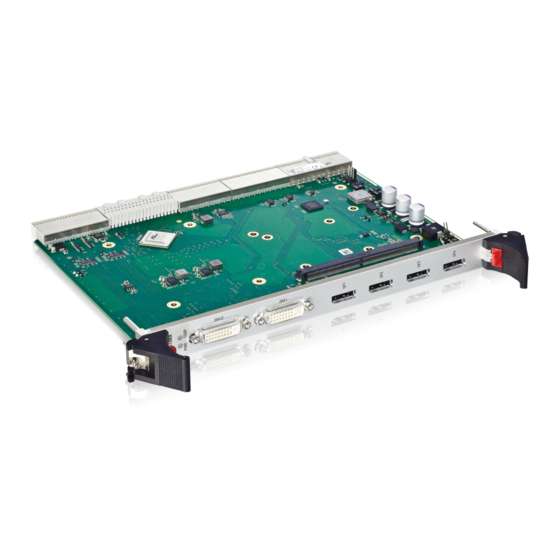

- Page 1 » User Guide « CP6108X/CP6-GPU8860 Doc. ID: 1056-9946, Rev. 1.0 Date: April 16, 2015 The pulse of innovation...
-
Page 2: Revision History
Disclaimer Copyright © 2015 Kontron AG. All rights reserved. All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Kontron and the Kontron logo and all other trademarks or registered trademarks are the property of their respective owners and are recognized. -
Page 3: Table Of Contents
User Guide CP6108X/CP6-GPU8860 Contents Revision History ......................2 Imprint ........................2 Disclaimer ........................2 Contents ........................3 Tables ........................5 Figures ........................6 Warranty ........................7 Proprietary Note ......................7 Trademarks ........................ 7 Environmental Protection Statement ................7 Introduction ..................8 Board Overview ................... - Page 4 User Guide CP6108X/CP6-GPU8860 Installation ..................25 Safety ...................... 25 General Instructions on Usage ............... 25 Board Installation ..................26 4.3.1 Board Insertion ..................26 4.3.2 Board Removal ................... 26 MXM3.0 Module Installation ................27 CP6-PU8860 ..................28 Overview....................28 Technical Specifications ................28 5.2.1...
-
Page 5: Tables
User Guide CP6108X/CP6-GPU8860 Tables CP6108X Main Specifications ................12 Standards ......................13 Related Publications ................... 14 Front Panel LEDs ....................15 Required and Optional Display Support ..............16 CP6108X Port Assignment ..................16 CompactPCI Connector J1 Pinout ................18 64-bit CompactPCI Connector J2 Pinout ..............19 CompactPCI Rear I/O Connector J3 Pinout .............. -
Page 6: Figures
User Guide CP6108X/CP6-GPU8860 Figures CP6108X Functional Block Diagram ................ 9 CP6108X Front Panel ..................10 CP6108X Board Layout (Top View) ................. 11 CompactPCI and ZDplus Connectors ............... 17 CP6-GPU8860 Board Layout (Top View) ..............29 www.kontron.com... -
Page 7: Warranty
Warranty This Kontron product is warranted against defects in material and workmanship for the warranty period from the date of shipment. During the warranty period, Kontron will at its discretion decide to repair or replace defective products. Within the warranty period, the repair of products is free of charge as long as warranty conditions are observed. -
Page 8: Introduction
CP6-GPU8860). The CP6-GPU8860 comes with an optimized passive cooling solu- tion, which is a reference for solutions to any other MXM3.0 type A module for use with the CP6108X. An active fansink is avoided on board level to increase system ruggedization for harsh environments. -
Page 9: Board Diagrams
1. 2 B o a r d D i a g r a m s The following diagrams provide additional information concerning board functionality and component layout. 1.2.1 Functional Block Diagram Figure 1: CP6108X Functional Block Diagram DVI x 2 12V EXT PCIe... -
Page 10: Front Panel
User Guide CP6108X/CP6-GPU8860 1.2.2 Front Panel Figure 2: CP6108X Front Panel Power Status LED PWR (green/orange/red): Power Status of the CP6108X/MXM module TEMP (green/orange/red): Temperature Status of the MXM module CP6108X PWR TEMP www.kontron.com... -
Page 11: Board Layout
User Guide CP6108X/CP6-GPU8860 1.2.3 Board Layout Figure 3: CP6108X Board Layout (Top View) PWR/ TEMP LEDs DVI-D PCIe Switch DVI-I MXM3.0 Type B Module MXM3.0 Type A Module www.kontron.com... -
Page 12: Technical Specification
Depending on the integrated MXM3.0 module, an appropriate heat sink for the module and the PCI Express switch as well as suf f icient airflow must be provided to ensure optimal operation and long-term reliability of the CP6108X. For further information, please contact Kontron. -
Page 13: Standards
1 (s) recover y time Note: Customers desiring to perform further environmental testing of the CP6108X must contact Kontron for assistance prior to performing any such testing. Boards without conformal coating must not be exposed to a change of temperature which can lead to condensation, as this may cause irreversible damage especially when the board is powered up again. -
Page 14: Related Publications
CompactPCI Systems PICMG 2.0, Rev. 3.0 CompactPCI Specif ication PICMG 2.20, Rev. 1.0 CompactPCI Packet Serial Mesh Backplane Specif ication Kontron CompactPCI Backplane Manual, ID 24229 PCI Express PCI Express Base Specif ication Revision 3.0 MXM Graphics Module, Mobile PCI Express Module Electromechanical Specif ication V3.1 R1.0... -
Page 15: Functional Description
2 .1 B o a r d I n te r f a c e s 2.1.1 Front Panel LEDs The CP6108X provides two LEDs on the front panel, one PWR LED for indicating the power status of the CP6108X/MXM module and one TMP LED for indicating the temperature status of the MXM module. -
Page 16: Mxm Interface
J11, for mounting an MXM3.0 type A or Type B module. The CP6108X allows multiple-display configuration depending on the GPU features. The following table indicates the minimum set of displays that an MXM3.0 module must support. However, the CP6108X is allowed to have no displays connected at all. -
Page 17: Compactpci And Zdplus Connectors
» J4 and J41 for high-speed serial I/O interconnection 2.1.5.1 CompactPCI Connector Keying ZDplus The CompactPCI connector J1 supports guide lugs to ensure a correct polarized mating. The CP6108X supports universal PCI VI/O signaling voltages. standard CompactPCI Standard CompactPCI: FEDCBAZ... -
Page 18: Compactpci Connectors J1 And J2 Pinout
User Guide CP6108X/CP6-GPU8860 2.1.5.2 CompactPCI Connectors J1 and J2 Pinout The CP6108X is provided with two 2 mm x 2 mm pitch female CompactPCI connectors, J1 and J2. Table 7: CompactPCI Connector J1 Pinout 3.3V V(I/O) 3.3V 3.3V 3.3V V(I/O) 3.3V... -
Page 19: Bit Compactpci Connector J2 Pinout
User Guide CP6108X/CP6-GPU8860 Table 8: 64-bit CompactPCI Connector J2 Pinout V(I/O) V(I/O) V(I/O) V(I/O) V(I/O) V(I/O) www.kontron.com... -
Page 20: Compactpci Rear I/O Connectors J3 And J5 Pinout
User Guide CP6108X/CP6-GPU8860 2.1.5.3 CompactPCI Rear I/O Connectors J3 and J5 Pinout Table 9: CompactPCI Rear I/O Connector J3 Pinout www.kontron.com... -
Page 21: Compactpci Rear I/O Connector J5 Pinout
User Guide CP6108X/CP6-GPU8860 Table 10: CompactPCI Rear I/O Connector J5 Pinout 12V_MXM 12V_MXM 12V_MXM 12V_MXM DVI2_TX0+ DVI2_TX0- 12V_MXM DVI2_TX2+ DVI2_TX2- 12V_MXM DVI2_TX1+ DVI2_TX1- HPD2 12V_MXM DVI2_TXC+ DVI2_TXC- 12V_MXM DVI2_DDC_SDA DVI2_DDC_SCL 12V_MXM DVI1_TX0+ DVI1_TX0- 12V_MXM DVI1_TX1+ DVI1_TX1- DVI1_TX2+ DVI1_TX2- 12V_MXM HPD1... -
Page 22: High-Speed Serial Zdplus Connectors J41 And J4 Pinout
PCI Express 3.0 interface operating at 8 GT/s as an end point (non transparent bridge). The CP6108X is compatible with all Kontron 6U CompactPCI passive backplanes that are compliant with the PICMG 2.20 specification. Table 12: High-Speed Serial ZDplus Connector J41 Pinout PE_RST# Res. -
Page 23: Power Considerations
C P 610 8 X Vo l t a g e Ra n ge s The CP6108X has been designed for optimal power input and distribution. Still it is necessary to ob- serve certain criteria essential for application stability and reliability. -
Page 24: Regulation
3 . 3 Powe r S u p p l y fo r th e M X M 3 . 0 M o d u l e The CP6108X provides up to 40 W for the MXM3.0 module. MXM3.0 modules consuming more than 40 W must be supplied with external +12 V voltage via the J5 connector. -
Page 25: Installation
4 . 2 G e n e r a l I n s t r u c t i o n s o n U s a g e In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. -
Page 26: Board Installation
CP6108X/CP6-GPU8860 4 . 3 B o a r d I n s t a l l a t i o n The CP6108X is designed for use in a peripheral slot. 4.3.1 Board Inser tion Prior to following the steps below, ensure that the safety requirements are met. -
Page 27: Mxm3.0 Module Installation
4 . 4 M X M 3 . 0 M o d u l e I n s t a l l a t i o n The CP6108X supports the installation of an MXM3.0 type A or type B module via the J11 connector. The MXM3.0 module must be physically installed on the CP6108X prior to installation of the CP6108X in the... -
Page 28: Cp6-Pu8860
The high-speed serial I/O interconnection (PICMG2.20) enables high data throughput via PCI Express® within the system. Data stream conversion by the CP6108X from x8 PCI Express 2.1 (MXM) to x8 or x4 PCI Express® 3.0 (system), if required, allows for maximum possible data bandwidth with respect to the capabilities of the selected CPU board in the system. -
Page 29: Cp6-Gpu8860 Board Layout
User Guide CP6108X/CP6-GPU8860 5 . 3 C P 6 - G P U 8 8 6 0 B o a r d L ay o u t Figure 5: CP6-GPU8860 Board Layout (Top View) PWR/ TEMP LEDs DVI-D Heat Sink... - Page 30 User Guide CP6108X/CP6-GPU8860 CORPORATE OFFICES Europe, Middle East & Africa North America Asia Pacific Lise-Meitner-Str. 3-5 14118 Stowe Drive 17 Building,Block #1, ABP. 86156 Augsburg Poway, CA 92064-7147 188 Southern West 4th Ring Road Germany Beijing 100070, P.R.China Tel.: + 49 (0) 821 / 4086 0 Tel.: + 1 888 294 4558...
