Summary of Contents for Kontron DIMM-PC/ETH+COM

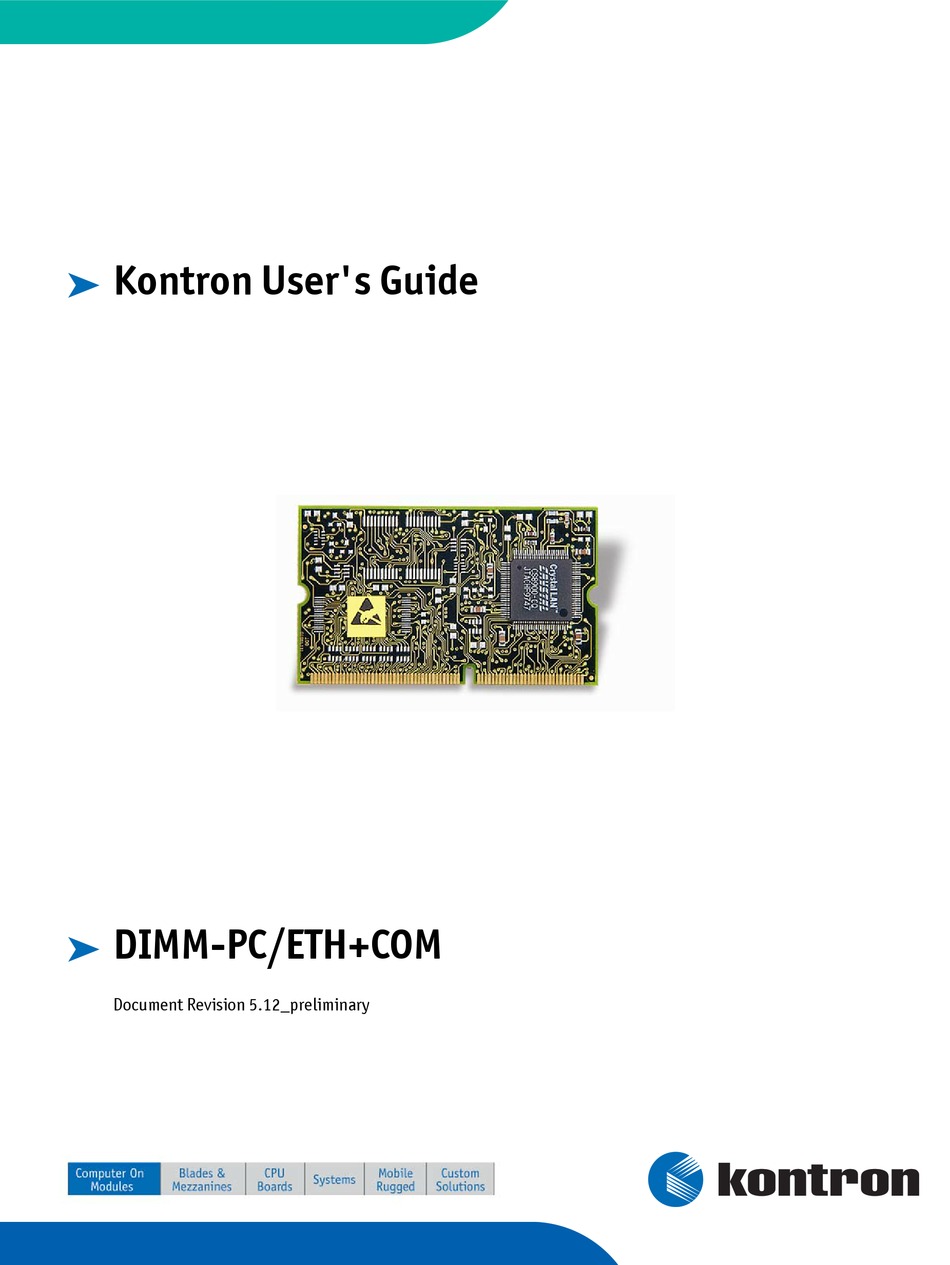

- Page 1 Kontron User's Guide ® DIMM-PC/ETH+COM ® Document Revision 5.12_preliminary...
- Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
DIMM-PC I/O Connector Pinout ................11 Ethernet Controller Pin Descriptions ..............13 Serial Port Pin Descriptions ................13 Ethernet Controller ....................14 Software Installation ..................14 CS8900 Configuration ..................14 Software and Driver Setup ................. 15 Technical Support .................... 15 Kontron User's Guide DIMM-PC/ETH+COM... - Page 4 Serial Ports .......................16 Software Installation ..................16 Serial Port Design Example ................16 7.2.1 Parts Description ..................... 17 Appendix A: DIMM-PC/ETH+COM Block Diagram .............18 Appendix B: Mechanical Dimensions ................19 Appendix C: Literature, Standards, and Links ..............20 10.1 PC/104 Bus ....................20 10.2...
-
Page 5: User Information
“as-is” and is subject to change without notice. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned. -
Page 6: Technical Support
Kontron Embedded Modules GmbH will not be responsible for any defects or damages to other products not supplied by Kontron Embedded Modules GmbH that are caused by a faulty Kontron Embedded Modules GmbH product. -
Page 7: Introduction

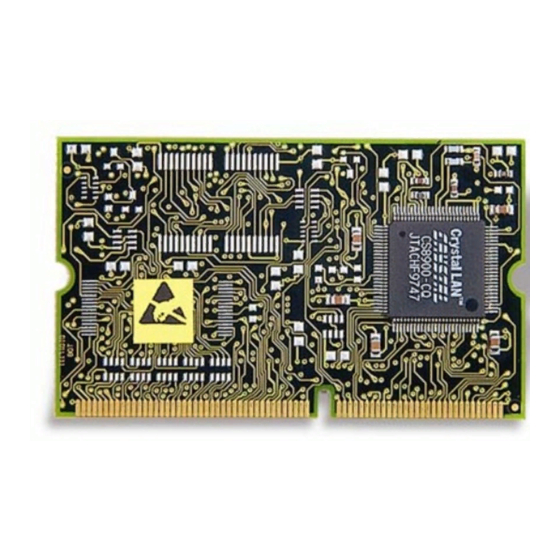

DIMM-PC/ETH+COM The DIMM-PC/ETH+COM is a DIMM-PC I/O module with two serial ports and one 10BaseT Ethernet interface. You can configure the serial ports to supplement the serial ports found on the DIMM-PC CPU module, which appear as COM3 and COM4. -
Page 8: Features
5V only power supply Mechanical Specifications 3.2.1 Dimensions Length x Width: 68 mm x 40.0 mm (1.57" x 2.68") ® Topside envelope is 4 mm from the PCB surface; bottomside envelope is 2 mm from ® the PCB surface. Kontron User's Guide DIMM-PC/ETH+COM... -
Page 9: Electrical Specifications
® 3.4.3 Shock 50G/20ms square wave maximum ® 3.4.4 Vibration 1G/0-600HZ; dwell not to exceed ® 3.4.5 Power ≈ 200mA (≈1W) ® 3.4.6 Altitude Operating: 0 – 3000 m ® Nonoperating: 0 – 5000 m ® Kontron User's Guide DIMM-PC/ETH+COM... -
Page 10: Resource List And I/O Map
The IRQ11 is unavailable if you use the DIMM-PC/486-I. I/O Address Available Comment 0300 – 030F Ethernet Selectable I/O address 02E8 – 02EF COM4 I/O address for COM4 03E8 – 03EF COM3 I/O address for COM3 Kontron User's Guide DIMM-PC/ETH+COM... -
Page 11: Connector Description
5 Connector description Connector description DIMM-PC I/O Connector Pinout The following tables provide information about the DIMM-PC I/O connector for the DIMM-PC/ETH+COM. Pin Number Signal Pin Number Signal BATT* RI4# MASTER# DCD4# DTR4# BALE DSR4# SD15 RTS4# CTS4# TXD4 / DO... - Page 12 P16* IRQ12 P15* SMEMR# P14* SA19 P13* IRQ11 P12* SMEMW# P11* P10* IRQ10 IOCHRDY SBHE# IOCS16# ZWS# MEMCS16# DRQ2 VPANEL* FPVEE* IRQ9 VDCLK* LLCLK* RSTDRV# LFS* IOCHCK# Note: * Signals are not supported on the DIMM-PC/ETH+COM. Kontron User's Guide DIMM-PC/ETH+COM...
-
Page 13: Ethernet Controller Pin Descriptions
Active low data terminal ready output DTR4# Active low data terminal ready output DCD3# Active low data carrier detect input DCD4# Active low data carrier detect input RI3# Active low ring indicator input RI4# Active low ring indicator input Kontron User's Guide DIMM-PC/ETH+COM... -
Page 14: Ethernet Controller
You can find the driver archive in the Ethernet.exe utility files. If you use a DIMM-PC/486-I module, IRQ5 and IRQ11 are unavailable. The CS8900 controller should use either IRQ10 or IRQ12. Kontron User's Guide DIMM-PC/ETH+COM... -
Page 15: Software And Driver Setup
The following table describes the parts used in the above schematic. Designator Used Description Manufacturer Order Number VALOR ST7011 LST7011 SMD 10Base-T transformer without choke 16PT-41S SMD LED red, SIEMENS LS S26-DO SMDLEDRED SOT-23 Shape TELEFUNKEN TLMR2200 Western socket, 5-555178-3 JBUWEST8R 8 positions, BERG 87180-088 right-angled Kontron User's Guide DIMM-PC/ETH+COM... -
Page 16: Serial Ports
Before using the serial ports, initialize the registers on the SMSC I/O controller on the DIMM- PC/ETH+COM module. JUMPtec provides a utility called DIO1I111.exe to assist you. The utility initializes the serial ports of the DIMM-PC/ETH+COM module to use I/O addresses 3E8 and 2E8, and IRQs 10 and 11 respectively. -
Page 17: Parts Description
The following table describes the parts used in the above schematics. Designator Used Description Manufacturer Order Number UMAX211 CMOS RS 232 driver and receiver SIPEX SP211 (B) CA UMAX483 RS-485 transceiver SIPEX SP483CN JSTDSUB9R DSUB-connector 9 pos. Riebensahm DRA09P11 Kontron User's Guide DIMM-PC/ETH+COM... -
Page 18: Appendix A: Dimm-Pc/Eth+Com Block Diagram
8 Appendix A: DIMM-PC/ETH+COM Block Diagram Appendix A: DIMM-PC/ETH+COM Block Diagram PC/104 Driver for COM3 Connector COM3 COM4 COM4 DIMM-PC/ ISA-BUS DIMM-PC COMBO2 10BaseT Ethernet Transformer Twisted Pair PERIPHERIE (BACKPLANE) Kontron User's Guide DIMM-PC/ETH+COM... -
Page 19: Appendix B: Mechanical Dimensions
9 Appendix B: Mechanical Dimensions Appendix B: Mechanical Dimensions R0.75mm R2mm free area on PCB for further fixing possibility on applikation 27.5mm R2.5mm 40mm 18mm 2.5mm gold plated gold plated 28.25mm 67.6mm front view side view Kontron User's Guide DIMM-PC/ETH+COM... -
Page 20: Appendix C: Literature, Standards, And Links
® 10.2 RS232C EIA-232-E Interface between data terminal equipment and data circuit-terminating ® equipment employing serial binary data interchange (ANSI/IEA-232-D). National Semiconductor's Interface Data Book includes several applications notes ® about RS232C that are available online. Kontron User's Guide DIMM-PC/ETH+COM... -
Page 21: Appendix D: Assembler Program
;--- configure registers --- dx, 370h ;initialize COM3 at the adress 3E8 al, 24h dx, al dx, 371h al, 0fah dx, al dx, 370h ; initialize COM4 at the adress 2E8 al, 25h dx, al dx, 371h Kontron User's Guide DIMM-PC/ETH+COM... - Page 22 ;--- finish the program with the DOS function 4Ch --------- ax, 4C00h ;loading function number, error code 0 ;call up DOS prog endp ;end of the PROG-Procedur ;== end =============================================================== code ends ;end of the CODE-Segment end prog Kontron User's Guide DIMM-PC/ETH+COM...
-
Page 23: Appendix E: Document Revision History
12 Appendix E: Document Revision History Appendix E: Document Revision History Version Date Edited by Changes 19.11.01 Initial release 18.01.02 Corrected manual part number. 11.06.07 Updated to new Kontron layout Kontron User's Guide DIMM-PC/ETH+COM...
