Summary of Contents for Kontron DIMM-PC/COM1

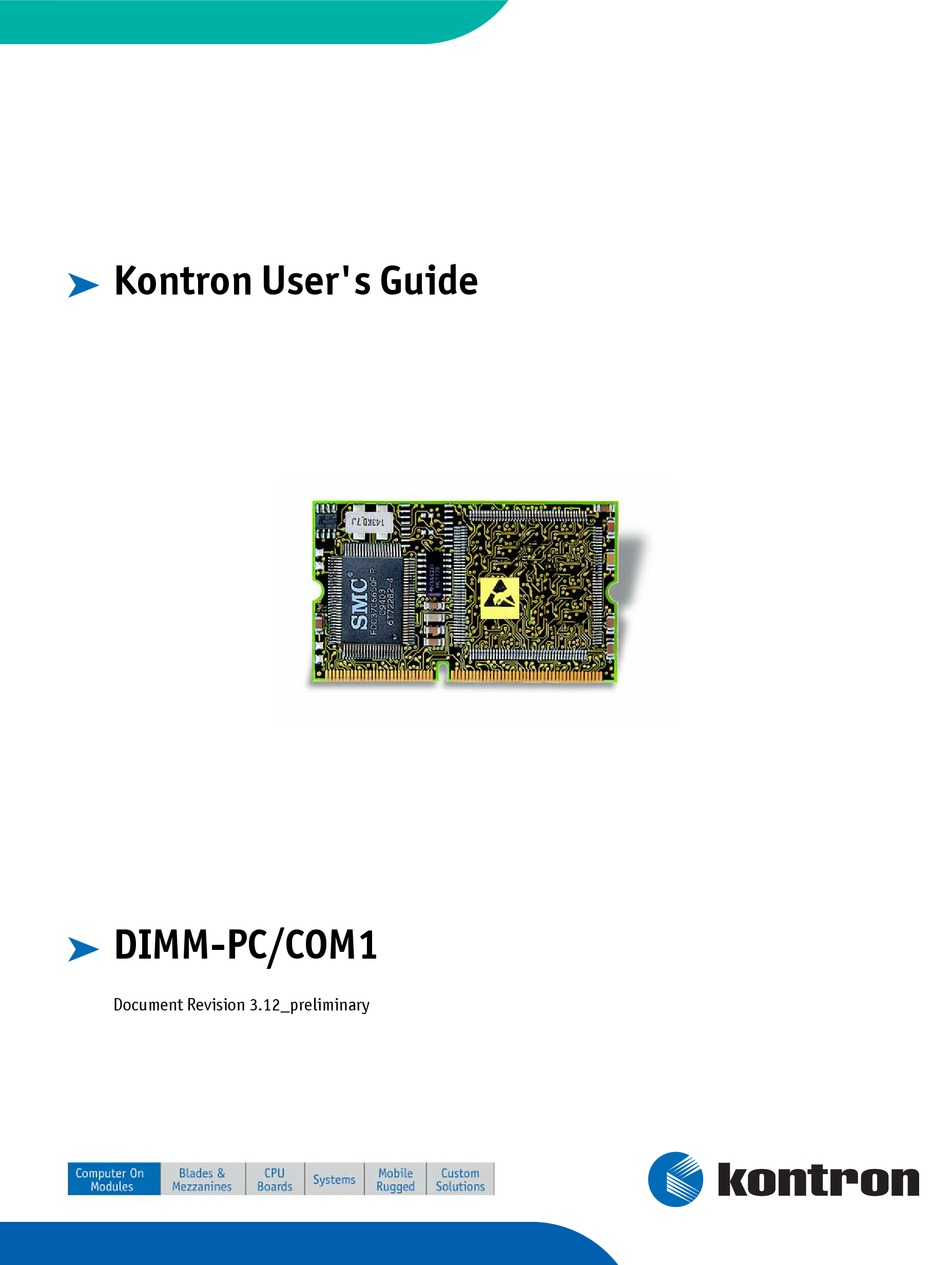

- Page 1 Kontron User's Guide ® DIMM-PC/COM1 ® Document Revision 3.12_preliminary...
- Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
DIMM-PC® I/O Connector Pinout ................ 11 Serial Port Pin Descriptions ................13 Serial Ports .......................14 Software Installation ..................14 Serial Port Design Example ................14 6.2.1 Parts Description ..................... 15 Appendix A: DIMM-PC®/COM1 Block Diagram ..............16 Kontron User's Guide DIMM-PC®/COM1... - Page 4 Table of Contents Appendix B: Mechanical Dimensions ................17 Appendix C: Literature, Standards, and Links ..............18 PC/104 Bus ....................18 RS232C ......................18 Appendix D: Assembler Program ..................19 Appendix E: Document Revision History ................21 Kontron User's Guide DIMM-PC®/COM1...
-
Page 5: User Information
“as-is” and is subject to change without notice. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned. -
Page 6: Technical Support
Kontron Embedded Modules GmbH will not be responsible for any defects or damages to other products not supplied by Kontron Embedded Modules GmbH that are caused by a faulty Kontron Embedded Modules GmbH product. -
Page 7: Introduction

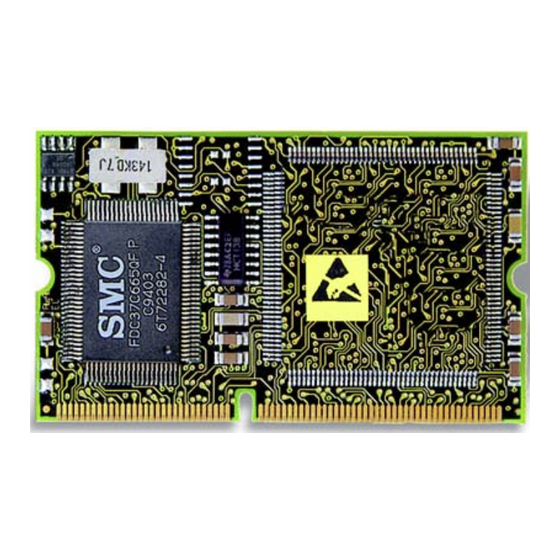

I/Os and peripherals. DIMM-PC®/COM1 The DIMM-PC®/COM1 is a DIMM-PC® I/O module with two serial ports. You can configure the serial ports to supplement the serial ports found on the DIMM-PC® CPU module, which appear as COM3 and COM4. Kontron User's Guide DIMM-PC®/COM1... -
Page 8: Features
® the PCB surface. Electrical Specifications 3.3.1 Supply Voltage 5V DC +/- 5% ® 3.3.2 Supply Voltage Ripple 100 mV peak to peak 0 - 20 MHz ® 3.3.3 Supply Current (typical) ≈ 100mA (≈1W) ® Kontron User's Guide DIMM-PC®/COM1... -
Page 9: Environmental Specifications
® 3.4.3 Shock 50G/20ms square wave maximum ® 3.4.4 Vibration 1G/0-600HZ; dwell not to exceed ® 3.4.5 Power ≈ 100mA (≈0,5W) ® 3.4.6 Altitude Operating: 0 – 3000 m ® Nonoperating: 0 – 5000 m ® Kontron User's Guide DIMM-PC®/COM1... -
Page 10: Resource List And I/O Map
Available if the serial port is uninitialized. COM3 The IRQ11 is unavailable if you use the DIMM-PC®/486-I. I/O Address Available Comment 02E8 – 02EF COM4 I/O address for COM4 03E8 – 03EF COM3 I/O address for COM3 Kontron User's Guide DIMM-PC®/COM1... -
Page 11: Connector Description
SD14 RXD4 / DI RI3# DACK#2 DCD3# SD13 DTR3# DSR3# IRQ3 RTS3# DRQ7 CTS3# DACK#7 TXD3 IRQ4 RXD3 SD12 IRQ5 *TXD+ *TXD- SD11 *RXD+ IRQ6 *RXD- *LNLED SD10 *LKLED IRQ7 SA10 MD14* MD13* SYSCLK MD12* SA11 Kontron User's Guide DIMM-PC®/COM1... - Page 12 P16* IRQ12 P15* SMEMR# P14* SA19 P13* IRQ11 P12* SMEMW# P11* P10* IRQ10 IOCHRDY SBHE# IOCS16# ZWS# MEMCS16# DRQ2 VPANEL* FPVEE* IRQ9 VDCLK* LLCLK* RSTDRV# LFS* IOCHCK# Note: * Signals are not supported on the DIMM-PC®/COM1. Kontron User's Guide DIMM-PC®/COM1...
-
Page 13: Serial Port Pin Descriptions
Active low data terminal ready output DTR4# Active low data terminal ready output DCD3# Active low data carrier detect input DCD4# Active low data carrier detect input RI3# Active low ring indicator input RI4# Active low ring indicator input Kontron User's Guide DIMM-PC®/COM1... -
Page 14: Serial Ports
OS in use. Serial Port Design Example In the schematic below, Serial Port 3 (COM3) performs as an RS232 interface. Serial Port 4 (COM4) performs as an RS484 interface. Kontron User's Guide DIMM-PC®/COM1... -
Page 15: Parts Description
The following table describes the parts used in the above schematics. Designator Used Description Manufacturer Order Number UMAX211 CMOS RS 232 driver and receiver SIPEX SP211 (B) CA UMAX483 RS-485 transceiver SIPEX SP483CN JSTDSUB9R DSUB-connector 9 pos. Riebensahm DRA09P11 Kontron User's Guide DIMM-PC®/COM1... -
Page 16: Appendix A: Dimm-Pc®/Com1 Block Diagram
7 Appendix A: DIMM-PC®/COM1 Block Diagram Appendix A: DIMM-PC®/COM1 Block Diagram DIMM-PC/COM1 DIMM-PC ISA-BUS PC/104 Connector Driver for COM3 and COM4 PERIPHERIE (BACKPLANE) Note: Kontron offers a starterkit for all DIMM-PC® and DIMM-PC®/IO applications. Please contact us for more information. Kontron User's Guide DIMM-PC®/COM1... -
Page 17: Appendix B: Mechanical Dimensions
8 Appendix B: Mechanical Dimensions Appendix B: Mechanical Dimensions R0.75mm R2mm free area on PCB for further fixing possibility on applikation 27.5mm R2.5mm 40mm 18mm 2.5mm gold plated gold plated 28.25mm 67.6mm front view side view Kontron User's Guide DIMM-PC®/COM1... -
Page 18: Appendix C: Literature, Standards, And Links
Embedded PCs, Markt&Technik GmbH, ISBN 3-8272-5314-4 (German) ® RS232C EIA-232-E Interface between data terminal equipment and data circuit-terminating ® equipment employing serial binary data interchange (ANSI/IEA-232-D). National Semiconductor's Interface Data Book includes several applications notes ® about RS232C that are available online. Kontron User's Guide DIMM-PC®/COM1... -
Page 19: Appendix D: Assembler Program
;--- configure registers --- dx, 370h ;initialize COM3 at the adress 3E8 al, 24h dx, al dx, 371h al, 0fah dx, al dx, 370h ; initialize COM4 at the adress 2E8 al, 25h dx, al dx, 371h Kontron User's Guide DIMM-PC®/COM1... - Page 20 ;--- finish the program with the DOS function 4Ch --------- ax, 4C00h ;loading function number, error code 0 ;call up DOS prog endp ;end of the PROG-Procedur ;== end =============================================================== code ends ;end of the CODE-Segment end prog Kontron User's Guide DIMM-PC®/COM1...
-
Page 21: Appendix E: Document Revision History
11 Appendix E: Document Revision History Appendix E: Document Revision History Version Date Edited by Changes 19.11.01 Initial release 18.01.02 Corrected manual part number. 12.06.07 Updated to new Kontron layout Kontron User's Guide DIMM-PC®/COM1...
