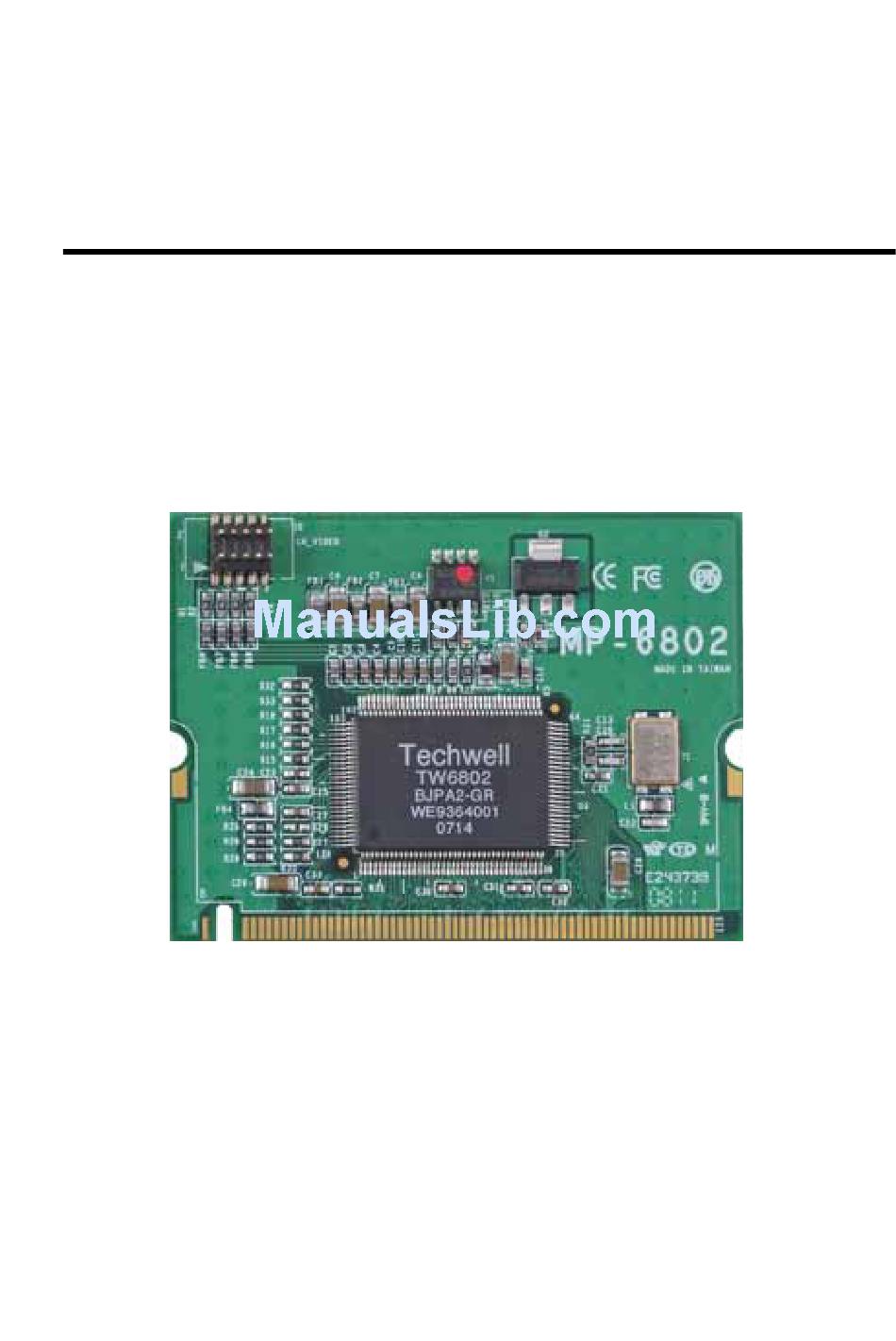

- Page 1 MP-6802 User’s Manual Edition: 1.2 2008/10/08...
- Page 2 MP-6802 User’s Manual Copyright The trademarks mentioned in the manual are legally registered to their respective companies. Disclaimer Notice The written content provided with this product in the property of Taiwan Commate. No part of this manual may be reproduced, copied, transmitted in any form or by any means without prior written permission of Taiwan Commate.
-
Page 3: Packing List
MP-6802 User’s Manual Packing List: Please check package component before you use our products. MP-6802 board Quick Installation Guide CD for manual and Demo drivers Cable Kit (Com Cable, Camera Cable) Cable Kit: Camera Cable X1 Com Cable X1... -
Page 4: Table Of Contents
MP-6802 User’s Manual Index Chapter 1 <Introduction> ............... 6 1.1 <General Information> ................ 6 1.2 <Connector Location>................. 7 1.21 <VIDEO Port> ................... 7 1.3 <Driver Settimg> ................. 8 1.4 <Sample Program> ................12 1.41 <Preview> ..................13 1.42 <Video Motion> ................15 1.42 <Video Motion>... - Page 5 MP-6802 User’s Manual (This Page is left for Blank)
-
Page 6: Chapter 1
MP-6802 User’s Manual Chapter 1 <Introduction> 1.1 <General Information> General Specification Form Factor 1 ~ 4 video input Mini-PCI Capture Card Video Decode Chipset One TW6802 Chipset Option Two 10bit video CMOS analog/ digit controller (ADCs) NTSC (M), NTSC (4.43), PAL (B, D, G, H, I), PAL (M),... -

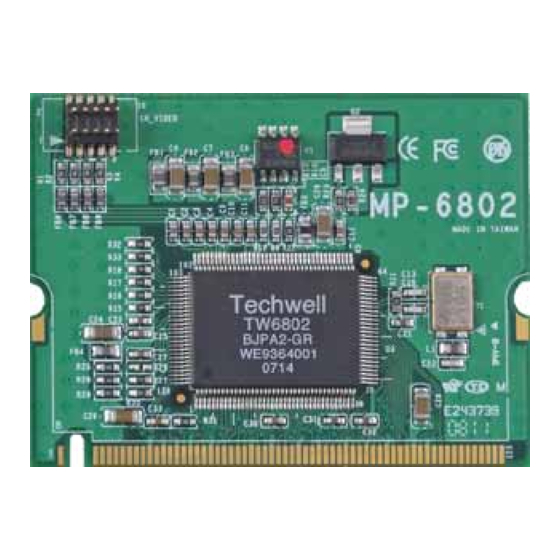

Page 7: Connector Location
MP-6802 User’s Manual 1.2 <Connector Location> 2 10 TW6802 1.21 <VIDEO Port> Connector: CN_VIDEO Type: 10-pin (5 x 2) connector Pin NO. Signals Pin NO. Signals VIDEO1 VIDEO2 VIDEO3 VIDEO4... -
Page 8: Driver Settimg
MP-6802 User’s Manual 1.3 <Driver Setting> 1. When completed the Hardware installation, Please select the file location X:\Driver\MP-6802\SETUP”. 2. Please choose “Next”. Contact Information... - Page 9 MP-6802 User’s Manual 3. Please choose “I accept the terms of the license agreement” the press “Next” 4. Please fill in “User Name” and ”Company Name” then press “Next”.
- Page 10 MP-6802 User’s Manual 5. Please choose “Install”. 6. Please TCC MP6802 D21 Capture and TCC6802A21 Audio Capture both choose “Continue Anyway”. Contact Information...
- Page 11 MP-6802 User’s Manual 7. Please choose “Yes, I want to restart my computer now.’’ the press ‘’Finish’’ 8. After driver install, please enter Device Manager, Driver Install OK!!
-
Page 12: Sample Program
MP-6802 User’s Manual 1.4 <Sample Program> 1. You can use COMMELL “TCCVDCApp” as your sample program to start your application or as a test application for learning the functionality of TCCDVC application and Dll library. User can find the execution application on desktop window or find the source code and execution files in directory C:\Profram Files\Commate\TCC6802\. -
Page 13: Preview
MP-6802 User’s Manual 1.41 <Preview> 1. If you Setting 0 Device as 4 Channels. The program show will be as following. - Page 14 MP-6802 User’s Manual Explanation of Sample program function Device ID: It is mean Techwell Chipset. One MP-6802 have 1 chipset, so, Then you can see “Channel No Setup” Device: 0. Channel ID: Per chip can support 4 Video input, So, Then you can select 0/1/2/3 for Video input.
-
Page 15: Video Motion
MP-6802 User’s Manual 1.42 <Video Motion> Please choose “Video Motion”, then you can see program interface as following. Enable: If user “ check ” this box, it will enable video motion detection. Action On Motion: If this box is checked, the registered call back function will be executed, when video motion is been detected. -
Page 16: Video Motion
MP-6802 User’s Manual 1.42 <Video Motion> Please choose ‘’Video Recording’’, then you can see program interface as following. Video Compressor: Enable video compressor link, the list box window will list all video compressor components in the system. The user can select its own video compressor from the list, if user has installed own video compressor. - Page 17 MP-6802 User’s Manual Audio Compressor: Enable audio compressor link, the list box window will list all audio compressor components in the system. The user can select its own audio compressor from the list, if user has installed own audio compressor.
-
Page 18: Contact Information
Address 8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC. Contact Information...
