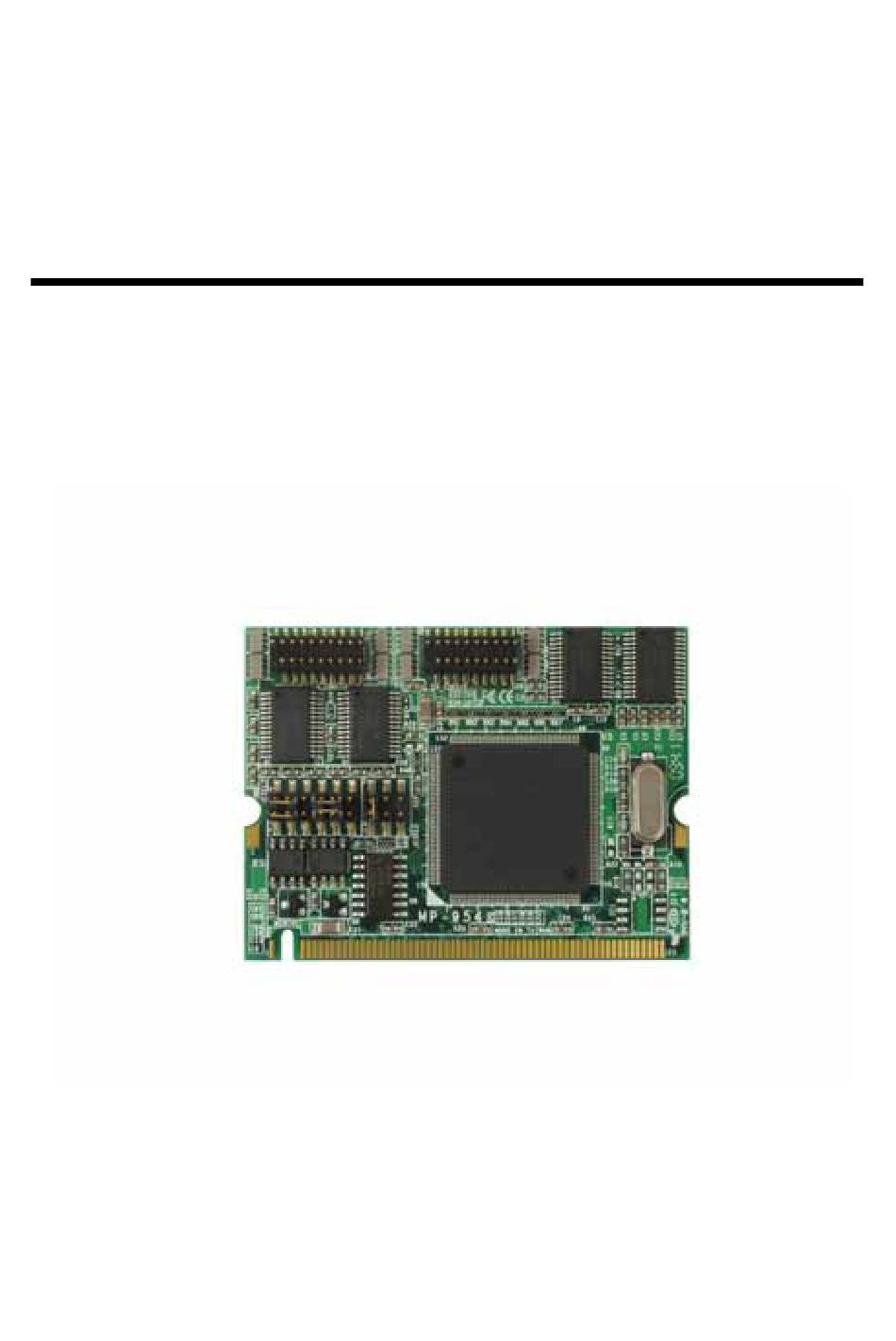

- Page 1 MP-954 User’s Manual Edition 1.1 2009/10/23...
- Page 2 MP-954 User’ s Manual Copyright Copyright 2009 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
MP-954 User＇ s Manual Packing List: Hardware: MP-954 Mini-PCI Card x1 Cable kit: Com port cable (OALES-BKU2) x 2 CD Content:: Drivers & User’s Manual... - Page 4 MP-954 User’ s Manual 1.0 <Product Specification> General Specification Form Factor Mini-PCI Type III B with 124-pin interface Controller OXFORD OXuPCI954 Features Four 16C950 High performance UART channels 1.1 <Connector Assignment> JCSEL1 CN_COM1/2 CN_COM3/4 JCSEL2 1.2 <Jumper Location & Reference>...
- Page 5 MP-954 User’ s Manual Connector: CN_COM1/2 Type: 20-pin (10x2 pitch=1.27x2.54mm) header Description Description DCD1- RX1- TX1- DTR1- DSR1- RTS1- CTS1- DCD2-/ RX2-/ 422TX-/485- 422TX+/485+ TX2-/422RX+ DTR2-/422RX- DSR2- RTS2- CTS2- Connector: CN_COM3/4 Type: 20-pin (10x2 pitch=1.27x2.54mm) header Description Description DCD3- RX3-...
- Page 6 MP-954 User’ s Manual 1.3 <Jumper Setting> JCSEL1 JCSEL2 RS-232 RS-485 RS-422 RS422/RS485 output form COM2...
- Page 7 MP-954 User’ s Manual 1.3 <Driver Setting> 1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ … 2. Please choose “Device Manager” 3. You can see other devices ”Other PCI Bridge Device” “PCI Serial Port”...
- Page 8 MP-954 User’ s Manual 4. Please choose “Other PCI Bridge Device” then press Update Driver 5. Please choose ”NO, not this time“...
- Page 9 MP-954 User’ s Manual 6. Install software for ”Other PCI Bridge Device” Please choose ”Install from a list or specific location” 7. Please choose “Search for the best driver in these location” Check “Include this location in the search” then press...
- Page 10 MP-954 User’ s Manual 8. Please select the file location ”C:\Driver\MP-954\windows\2000&XP&Vista\32bit” 9. Completing the hardware update wizard...
- Page 11 MP-954 User’ s Manual 10. Please choose “PCI Serial Port” then press Update Driver Step same as 5. ~ 9. 11. Install finish...
-
Page 12: Contact Information
Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC.
