- Page 1 MPX-954 User’s Manual Edition: 1.0 2009/10/30...
- Page 2 MPX-954 User’s Manual Copyright Copyright 2009 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright.
-
Page 3: Packing List
MPX-954 User’s Manual Packing List: Hardware： MPX-954 PCI Express mini Card x1 Cable Kit: Dual DB9 Cable X 2 (OALES-BKU2) CD Content： Drivers & User’s Manual... - Page 4 MPX-954 User’s Manual...
- Page 5 MPX-954 User’s Manual (This Page is left for Blank)

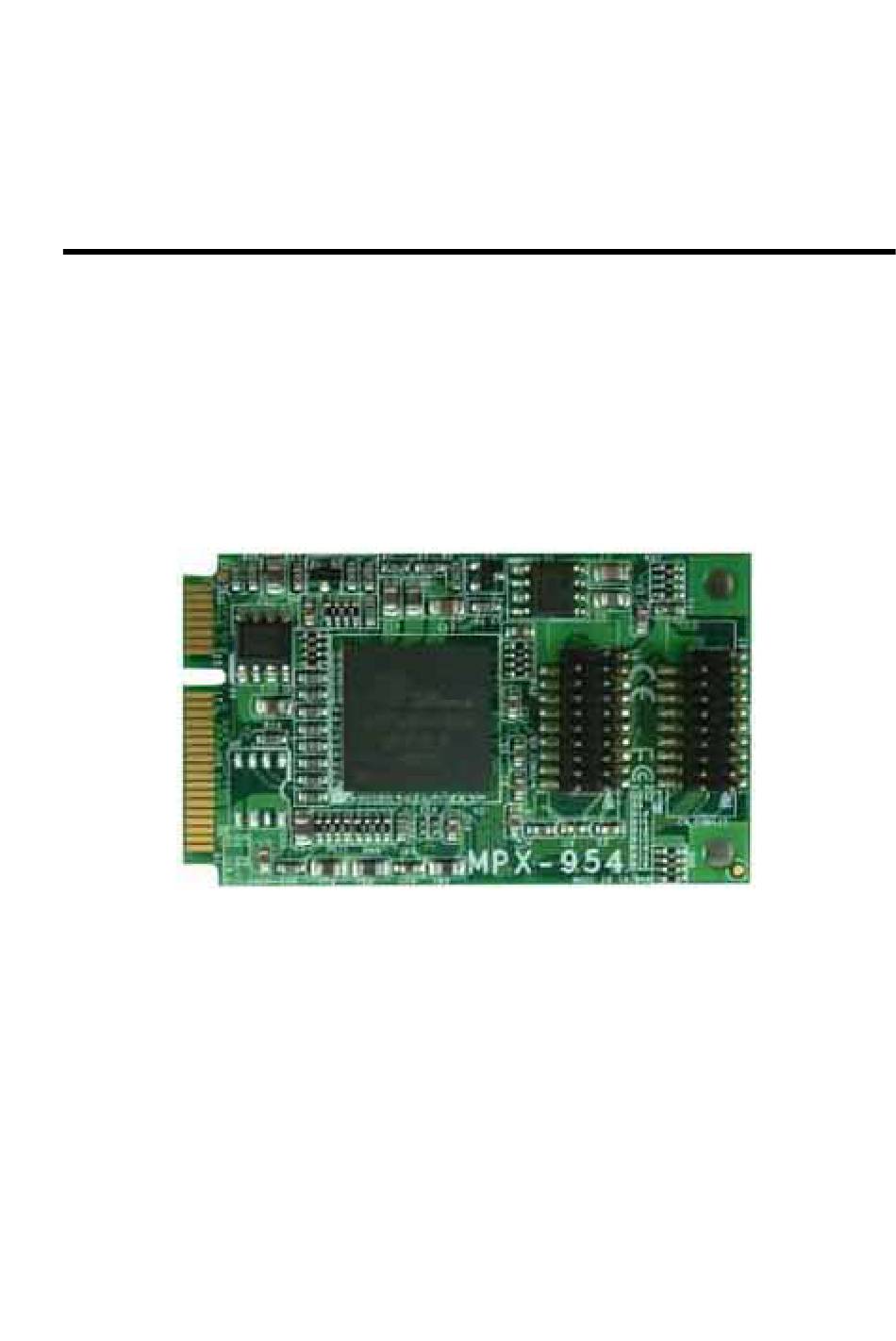

- Page 6 MPX-954 User’s Manual Chapter 1 <Introduction> 1.1 <General Specification> General Specification Form Factor PCI Express mini card Controller OXFORD OXPCIe954 Features Four 16C950 High performance UART channels 1.2 <Connector Assignment> CN_COM3/4 CN_COM1/2...
- Page 7 MPX-954 User’s Manual 1.21 <COM Port> Connector: CN_COM1/2 Type: 20-pin (10x2 pitch=1.27x2.54mm) header Description Description DCD1- RX1- TX1- DTR1- DSR1- RTS1- CTS1- DCD2- RX2- TX2- DTR2- DSR2- RTS2- CTS2- Connector: CN_COM3/4 Type: 20-pin (10x2 pitch=1.27x2.54mm) header Description Description DCD3- RX3-...
- Page 8 MPX-954 User’s Manual 1.3 <Driver Setting> 1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ … 2. Please choose “Device Manager” 3. You can see other devices ”PCI Serial Port”...
- Page 9 MPX-954 User’s Manual 4. Please choose “Other PCI Bridge Device” then press Update Driver 5. Please choose ”NO, not this time“...
- Page 10 MPX-954 User’s Manual 6. Install software for ”PCI Serial Port” Please choose ”Install from a list or specific location” 7. Please choose “Search for the best driver in these location” Check “Include this location in the search” then press “D:\Driver\MPX-954\MPX-954\x86”...
- Page 11 MPX-954 User’s Manual 9. Completing the hardware update wizard 10. Install finish...
-
Page 12: Contact Information
Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC.
