MPX-643
User's Manual
Edition 1.1
2010/01/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the MPX-643 and is the answer not in the manual?

Questions and answers

Related Manuals for Commell MPX-643

Summary of Contents for Commell MPX-643

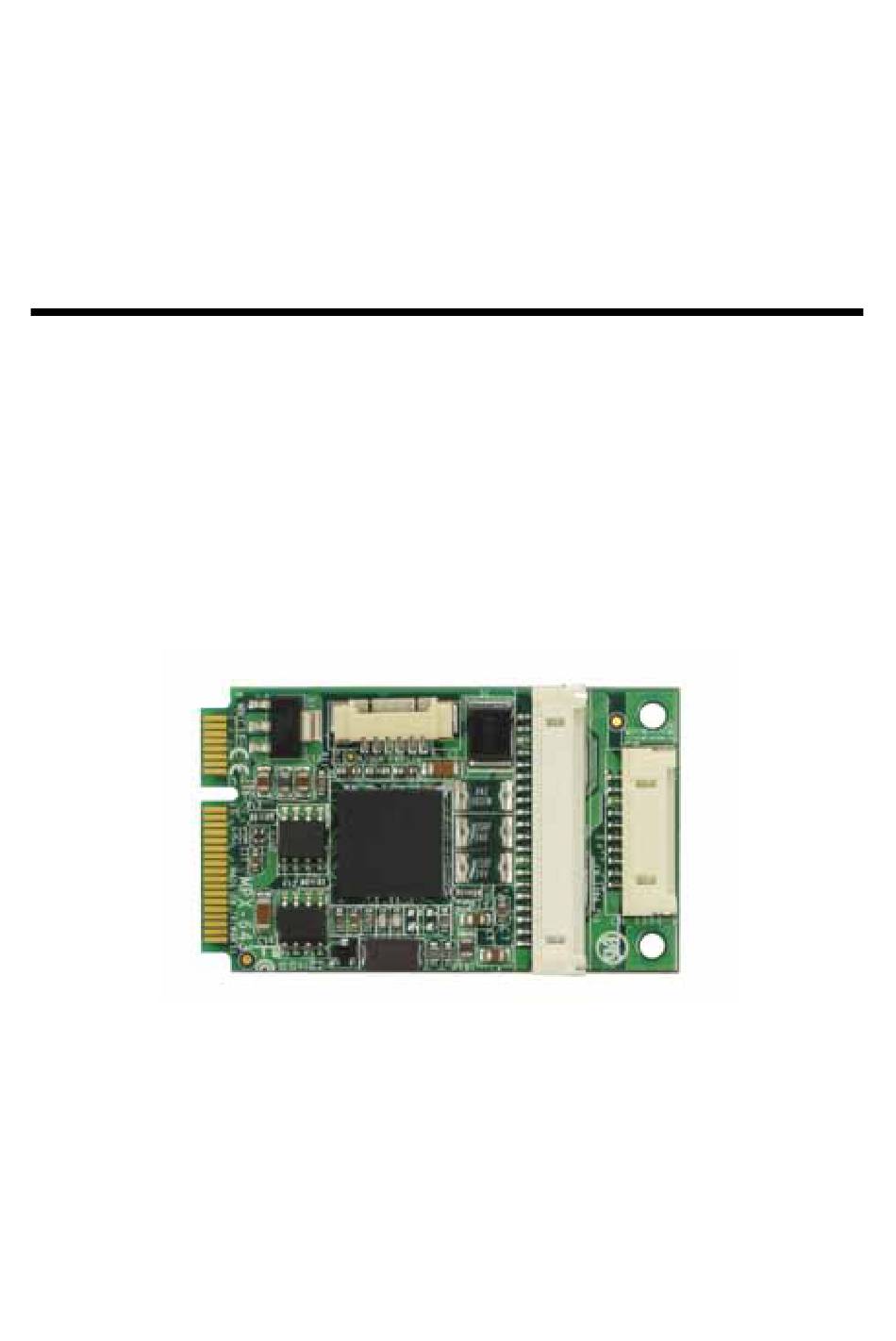

  • Page 1 MPX-643 User’s Manual Edition 1.1 2010/01/19...
  • Page 2 MPX-643 User’s Manual Copyright Copyright 2009 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    MPX-643 User’s Manual Packing List: Hardware: MPX-643 PCI Express mini card IEEE1394 Card x1 IO Module (ADP-1394) : Cable kit: DF14 10PIN for 1394A DF14 20PIN for 1394B 4PIN HSG to 6PIN for power (OALH10-L20) (OALH20-L20) (OAL4P-6) CD Content: User’s Manual...

  • Page 4: General Specification

    MPX-643 User’s Manual 1.0 <Product Specification> General Specification Form Factor PCI Express mini card Controller LSI FW643E2 Features 1 x IEEE1394A provides up to 400Mbps of transferring rate 2 x IEEE1394B provides up to 800Mbps of transferring rate Power Requirement +3.3V, (+12V / 1A for 1394 device)
  • Page 5 MPX-643 User’s Manual 1.1 <Component Placement> CN_1394_1 Single 1394A Port CN_1394_2/3 Dual 1394B Port CN_PWR 12V DC Power input CN_1394_1X 1394A 1394B CN_1394_2/3X...
  • Page 6 MPX-643 User’s manual 1.2 <Mechanical Drawing> MPX-643 unit: inch IO Module unit: inch...
  • Page 7 MPX-643 User’s Manual Bracket unit: mm...
  • Page 8 MPX-643 User’s manual 1.3 <Connector Reference> Connector: CN_1934_1 Type: DF14 10-pin pitch=1.25mm Description Description -TPB0 +TPB0 -TPA0 +TPA0 +12V Connector: CN_1394_2/3 Type: DF14 20-pin pitch=1.25mm Description Description -TPB1 +TPB1 -TPA1 +TPA1 +12V -TPB2 +TPB2 -TPA2 +TPA2 +12V Connector: CN_PWR Type: 1252 6-pin pitch=1.25nn...
  • Page 9 MPX-643 User’s Manual Connector: CN_1934_1X Type: DF14 10-pin pitch=1.25mm Description Description -TPB0X +TPB0X -TPA0X +TPA0X +12V Connector: CN_1394_2/3X Type: DF14 20-pin pitch=1.25mm Description Description -TPB1X +TPB1X -TPA1X +TPA1X +12V -TPB2X +TPB2X -TPA2X +TPA2X +12V...
  • Page 10 MPX-643 User’s manual 1.4 < Cable install > 1394A...
  • Page 11 MPX-643 User’s Manual 1394B...
  • Page 12 MPX-643 User’s manual POWER FINSH...

  • Page 13: Contact Information

    Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC.
