MP-954GPS
User's Manual
Edition 1.1
2009/10/23

Advertisement

loading
Need help?

Need help?

Do you have a question about the MP-954GPS and is the answer not in the manual?

Questions and answers

Related Manuals for Commell MP-954GPS

Summary of Contents for Commell MP-954GPS

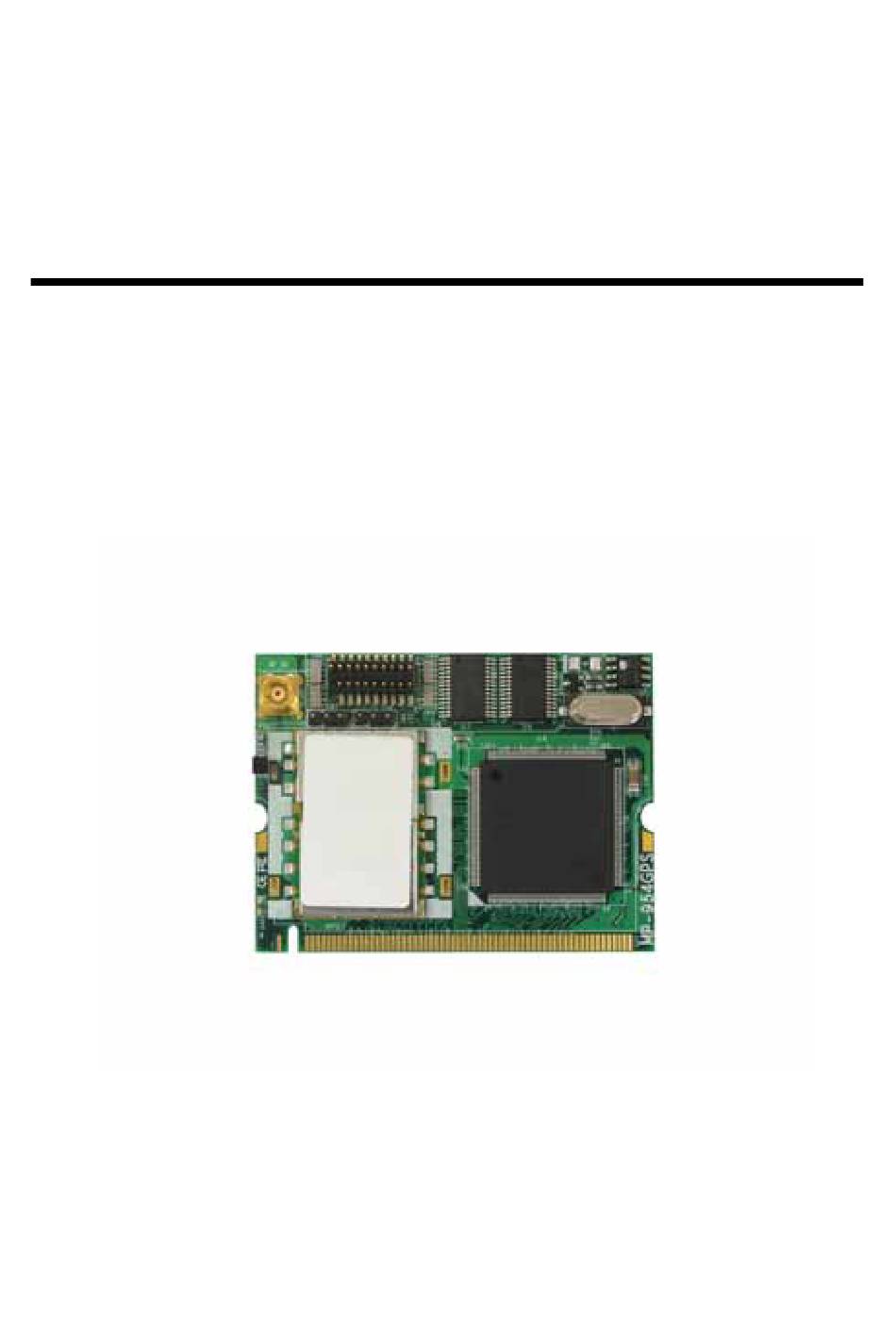

  • Page 1 MP-954GPS User’s Manual Edition 1.1 2009/10/23...
  • Page 2 MP-954GPS User Manual Copyright Copyright 2009 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

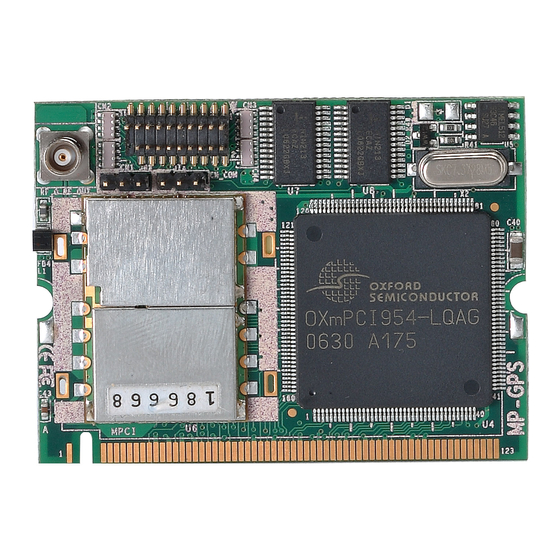

    MP-954GPS User Manual Packing List: Hardware: MP-954GPS Mini-PCI Card x1 Cable kit: Com port cable (OALES-BKU2) x 2 CD Content:: Drivers & User’s Manual...

  • Page 4: General Specification

    MP-954GPS User Manual 1.0 <Product Specification> General Specification Form Factor Mini-PCI Type III B with 124-pin interface Controller OXFORD OXuPCI954 Features Three 16C950 High performance UART channels First channel for GPS GPS Chipset SiRF Star III GPS Features Tracking Sensitivity: -159dBm...
  • Page 5 MP-954GPS User Manual Connector: CN_COM Type: 20-pin (10x2 pitch=1.27x2.54mm) header Description Description DCD1- RX1- TX1- DTR1- DSR1- RTS1- CTS1- DCD2- RX2- TX2- DTR2- DSR2- RTS2- CTS2- Connector: JRX Type: 3-pin (3x1 pitch=2.0mm) header Pin Description Pin Description Pin Description Connector: JTX Type: 3-pin (3x1 pitch=2.0mm) header...
  • Page 6 MP-954GPS User Manual 1.3 <Driver Setting> 1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ … 2. Please choose “Device Manager” 3. You can see other devices ”Other PCI Bridge Device” “PCI Serial Port”...
  • Page 7 MP-954GPS User Manual 4. Please choose “Other PCI Bridge Device” then press Update Driver 5. Please choose ”NO, not this time“...
  • Page 8 MP-954GPS User Manual 6. Install software for ”Other PCI Bridge Device” Please choose ”Install from a list or specific location” 7. Please choose “Search for the best driver in these location” Check “Include this location in the search” then press...
  • Page 9 MP-954GPS User Manual 8. Please select the file location ”C:\Driver\MP-954GPS\windows\2000&XP&Vista\32bit” 9. Hardware Installation ”Serial Bus Adapter” Press “Continue Anyway”...
  • Page 10 MP-954GPS User Manual 10. Completing the hardware update wizard 11. Please choose “PCI Serial Port” then press Update Driver step same as 5. ~ 9.
  • Page 11 MP-954GPS User Manual 11. Please choose “16C95x Serial Port” then press Update Driver Step same as 5. ~ 9. installing for ”Enhanced Communication Port” then press “Continue Anyway” 12. Install finish...

  • Page 12: Contact Information
