- Page 1 MPX-3132 User’s Manual Edition 1.1 2010/04/30...
- Page 2 MPX-3132 User’s Manual Copyright Copyright 2010 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
MPX-3132 User’s Manual Packing List: Hardware: MPX-7202 SATAII PCI Express mini card x1 Cable kit: DF14 10PIN for SATA x 2 (OALSATA7-H10) CD Content: Driver & User’s Manual... -
Page 4: General Specification

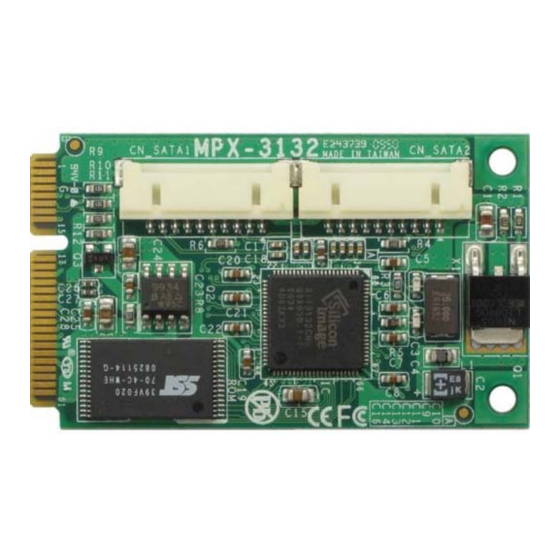

MPX-3132 User’s Manual 1.0 <Product Specification> General Specification Form Factor PCI Express mini card Controller Silicon Image 3132 Features 2 x SATAII provides up to 300MB/s of transferring rate (Supply RAID Function ) Accessories 1 x DF14 10-pin SATA Cable Dimensions ( W x D ) 30.00mm x 50.95mm... - Page 5 MPX-3132 User’s Manual 1.2 <Mechanical Drawing>...
- Page 6 MPX-3132 User’s manual 1.3 <Connector Reference> Connector: CN_SATA1/2 Type: DF14 10-pin pitch=1.25mm Description Description TXP0/1 TXN0/1 SATA_LED0/1 SATA_LED0#/1# RXN0/1 RXP0/1...
- Page 7 MPX-3132 User’s Manual 1.4 <SATA RAID Configuration> The board integrates Silicon Image 3132 with RAID function for Serial ATA II drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance.
- Page 8 MPX-3132 User’s manual 1.5 <SATA non-RAID Configuration > Please press <CTRL+S> to enter the RAID configuration menu. Select “Concatenation” in the Create RAID set. 2. Press “Y”...
- Page 9 MPX-3132 User’s Manual “Ctrl+E” to reset the system. 3. You will see a new message as picture1, then press (picture1) 4. Please Insert Windows XP CD, Please follow instructions to complete installation.
-
