Summary of Contents for Commell MPX-8188

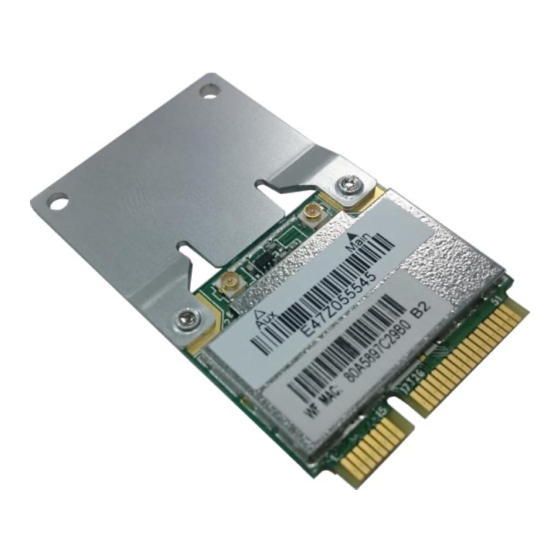

- Page 1 MPX-8188 IEEE 802.11b/g/n Wi-Fi Mini Card User’s Manual Edition 1.0 2016/03/17...
-
Page 2: Table Of Contents
MPX-8188 User’s Manual Index 1 <Product Overview> ............... 2 2 <Features> ................3 3 <Block Diagram> ..............3 4 <General Specifications> ............4 4.1 < Recommended Operating Conditions > ....5 4.2 < Logic Level Characteristics > ........5 4.3 < LED mode behavior > ..........5 4.4 <... -
Page 3:
PCI Express half mini Card. Compliant with the IEEE 802.11b/g/n standard, MPX-8188 uses Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), BPSK, QPSK, CCK and QAM baseband modulation technologies. -
Page 4:
MPX-8188 User’s Manual 2 <Features> High speed wireless connection up to 150 Mbps for Wi-Fi 2 antennas to support 1(Transmit) 1(Receive) diversity technology Support WLAN TX/RX diversity function Low power consumption and high performance ... -
Page 5:
MPX-8188 User’s Manual 4 <General Specifications> Product Description Host Interface PCI-E Major Chipset Realtek RTL8188EE Dimension 26.65mm x 29.85mm X3.05mm (Tolerance remark in mechanical drawing) WiFi VID/PID 10EC / 8179 WiFi SVID/SSID 1A3B / 1D38 Weight Antenna Standard U.FL connector 1: Ant1 : Wi-Fi TX/RX 2.:Ant2 : Wi-Fi TX/RX... -
Page 6: Recommended Operating Conditions
MPX-8188 User’s Manual 4.1 < Recommended Operating Conditions > Symbol Parameter Rating Unit Vdd33 I/O voltage 3.135~3.465 4.2 < Logic Level Characteristics > Vcc=+3.3V +/- 5% VIH (min)= 2.0V (v) VIL (max)= 0.9V (v) VIH=input high Voltage VIL=input low Voltage... -
Page 7: Power Up Sequencing
MPX-8188 User’s Manual 4.4 < Power UP Sequencing > 3.3V PVCRL CLKREQ# PVPGL PERST# PERST#CLK REFCLK RTL8188EE PCIe Bus Power Sequence The main power ramp up duration Power valid to CLKREQ# output active PVCRL Power valid to PERST# input inactive... -
Page 8: Power Consumption
MPX-8188 User’s Manual 4.5 < Power Consumption > Test Bed DELL Vostro 3450P Test OS Windows 8 Professional x64 Test AP D-LINK DIR-855 Driver version AZ_RTL8188CE_8188EE_8723AE_ Win8_2007.5.1024.2012_20121121 Test voltage 3.3V Item Disable ASPM Mode L1 Mode Note WLAN Module No 171.6 mA... -
Page 9:
MPX-8188 User’s Manual 5 <Pin-out Definition> Pin No. Definition Basic Description Type Power management event : open drain, active low WAKE# Use to reactivate the PCI Express slot’s main power rails and reference clocks. Connected internally to RTL8188EE. 3.3V/3.3AUX power supply 3.3V/3.3AUX... - Page 10 MPX-8188 User’s Manual Floating Pin, No connect to anything. Ground. Floating Pin, No connect to anything. PETN0 Differential receive. Input Floating Pin, No connect to anything. PETP0 Differential receive. Input Ground. Ground. Floating Pin, No connect to anything. Ground. Floating Pin, No connect to anything.
- Page 11 MPX-8188 User’s Manual -10-...
-
Page 12:
MPX-8188 User’s Manual 6 <Pin-out Definition> -11-... - Page 13 MPX-8188 User’s Manual RF connector -1 -12-...
-
Page 14: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -13-...
