  • Page 1 MP-954 User’s Manual Edition 1.0...
  • Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw...

  • Page 3: Packing List

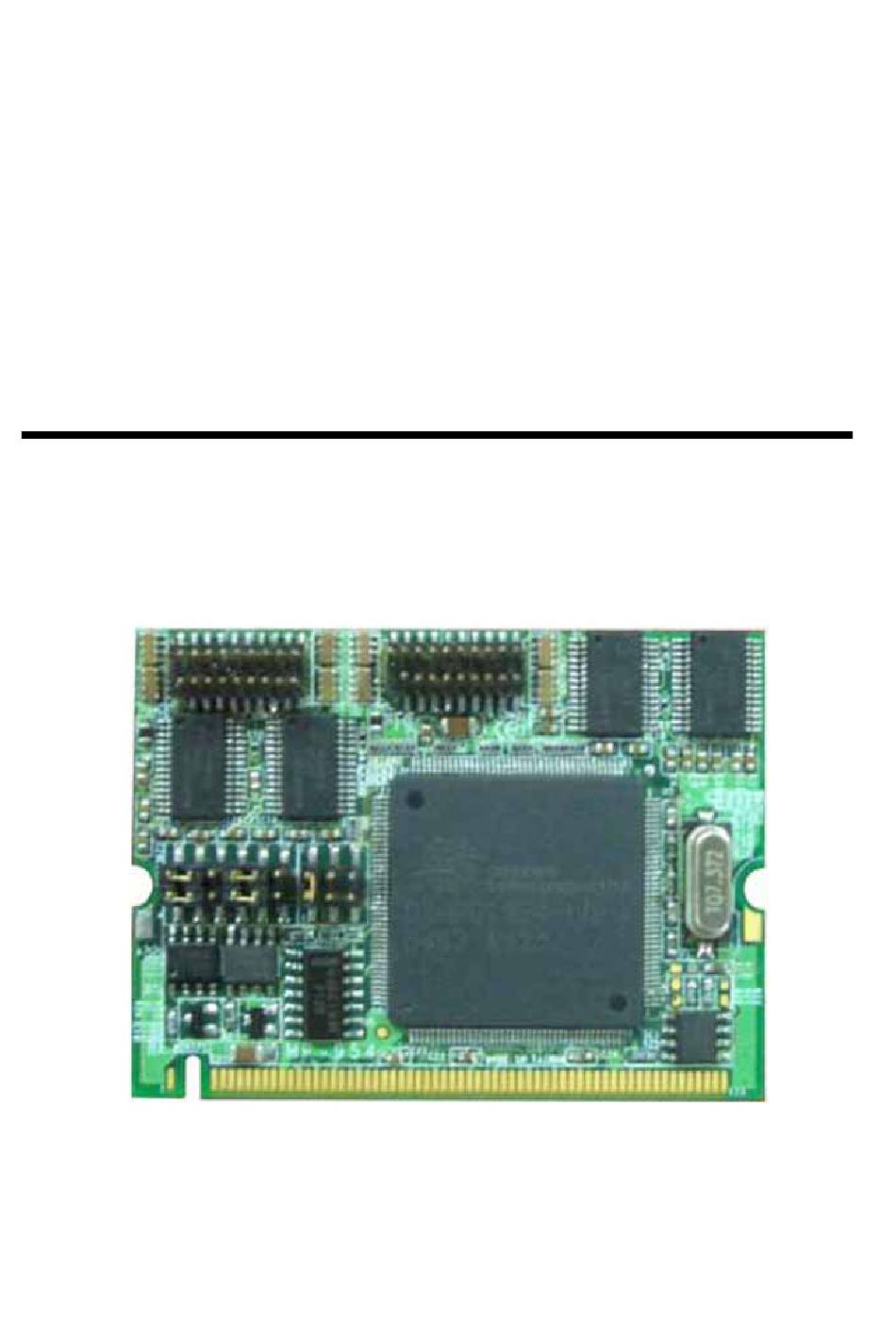

    Packing List: Hardware： MP-954 Mini-PCI Card x1 Cable Kit： COM port Cable x 2 CD Content： Drivers & User’s Manual 1.0 <Product Specification> General Specification Form Factor Mini-PCI TYPE III B Controller OXFORD OXmPCI954 Features Four 16C950 High performance UART channels...
  • Page 4 1.1 <Connector Location> JCSEL1 CN_COM1/2 CN_COM3/4 JCSEL2 1.2 <Jumper Location & Reference> JCSEL1 JCSEL2 CN_COM1/2/3/4 1.3 <Specifications> Specifications Form Factor Mini-PCI TYPEIIIB Controller OXmPCI954-LQ-A Accessories 2X10 com port cable X2...
  • Page 5 1.4<Jumper Setting> JCSEL1 JCSEL2 RS-232 RS-485 RS-422 RS422/485 output form COM2 1.5 <Driver Setting> 1. Please choose Device Manager...
  • Page 6 2. Then you can see Other devices 3. Please choose Other PCI Bridge Device then press Reinstall Driver...
  • Page 7 4. Please choose NO，not this tme press Next 5 . Please choose Install from a list on specific location.
  • Page 8 6 . Please select file location CDROM:\OXFORD\Ox954_V4_09 Press OK~ 7. After Other PCI Bridge Device Driver setting please choose PCI Serial Port then press mouse right key select properties...
  • Page 9 8. Please choose Reinstall Driver 9. Please choose NO，not this tme press Next...
  • Page 10 10. Please choose Install from a list on specific location press next 11. Please select file location CDROM:\OXFORD\Ox954_V4_09 Press OK...
  • Page 11 12. After driver install , please enter Device Manager then select PCI Communications Port (COM5) press properties. 13. Please select Data rate...
  • Page 12 14. Please press Detect Crystal Frequency. Then COM 6 7 8 all must press Detect Crystal Frequency.
  • Page 13 1.6< Connector Assignment > Connector: CN_COM1/2 Type: 20-pin (10 x 2) header Description Description DCD1- RXD1- TXD1- DTR1- Ground DSR1- RTS1- CTS1- RI1- DCD2-/422TX-/485- RXD2-/422TX+/485+ TXD2-/422RX+ DTR2-/422RX- Ground DSR2- RTS2- CTS2- RI2- Connector: CN_COM3/4 Type: 20-pin (10 x 2) header Description Description DCD3-...

  • Page 14: Contact Information
