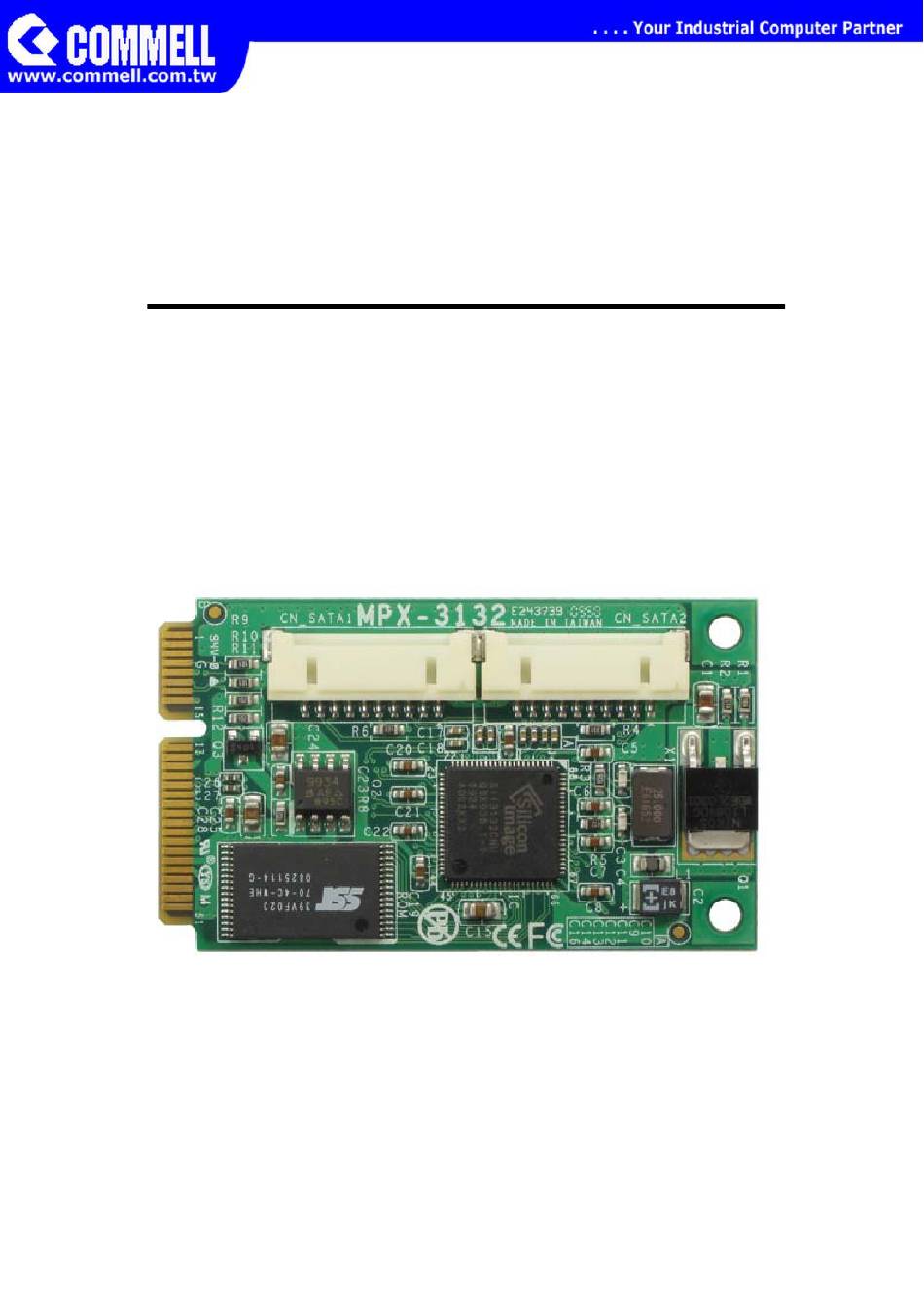

- Page 1 MPX-3132 User’s Manual Edition 1.11 2014/11/13...
- Page 2 MPX-3132 User’s Manual Copyright Copyright 2014, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Table Of Contents
MPX-3132 User’s Manual Index 1. <Product Specification & Packing List>..........1 2. <Mechanical Drawing> ................2 3. <Component Placement & Pin assignment> ..........3 4. <BIOS Configuration> ................4 5. <Install the operating system > ..............6 6. <SATA RAID Configuration> ..............8 Contact Information..................9... -
Page 4: Product Specification & Packing List
The specifications may be different as the actual production. For further product information please visit the website at http://www.commell.com.tw Packing List: Hardware: MPX-3132 SATAII PCIe mini card x 1 Cable Kit: DF14 10-Pin for SATA Cable x 2 (OALSATA7-H10)/ (1040123) -
Page 5: Mechanical Drawing
MPX-3132 User’s Manual 2. <Mechanical Drawing>... -
Page 6: Component Placement & Pin Assignment
MPX-3132 User’s Manual 3. <Component Placement & Pin assignment> CN_SATA1 CN_SATA2 Connector: CN_SATA1/2 Type: DF14 10-pin pitch=1.25mm Description Description TXP0/1 TXN0/1 SATA_LED0/1 SATA_LED0#/1# RXN0/1 RXP0/1... -
Page 7: Bios Configuration
MPX-3132 User’s Manual 4. <BIOS Configuration> Attention! This setting is only relatively new motherboard needs! Models are as follows ATX: AS-C74, AS-C76 Micro ATX: MS-C73, MS-C75 Mini ITX: LV-67F, LV-67G, LV-67H, LV-67I, LV-67J, LV-67K, LV-67L, LV-67M, LV-67N, LV-67O 3.5” :... - Page 8 MPX-3132 User’s Manual Here it must be based on different boards to set the PCIe speed to "GEN1". So that it can detect the Mini Card. AS-C74: PCIe7 AS-C76: PCIe7 MS-C73: PCIe3 MS-C75: PCIe3 LV-67F: PCIe3 LV-67G: PCIe7 LV-67H: Card1: PCIe3, Card2: PCIe5...
-
Page 9: Install The Operating System
MPX-3132 User’s Manual 5. <Install the operating system > When you enter the partition screen, you will find no detect hard drive. You need to click the "Load Driver" and plug in your flash drive (which have a MPX-3132's driver). - Page 10 MPX-3132 User’s Manual Click “Browse” and find your flash drive, choose your system type then click “OK”. Finally, the hard disk will show up.
-
Page 11: Sata Raid Configuration
MPX-3132 User’s Manual 6. <SATA RAID Configuration> This MiniCard only supports the following configurations: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. RAID 1 (Mirroring): Copies the data from first drive to second drive for data security, and if one drive fails, the system would access the applications to the workable drive. -
Page 12: Contact Information
Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website http://www.commell.com.tw E-Mail info@commell.com.tw (General Information) tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
