Summary of Contents for Commell MPX-574

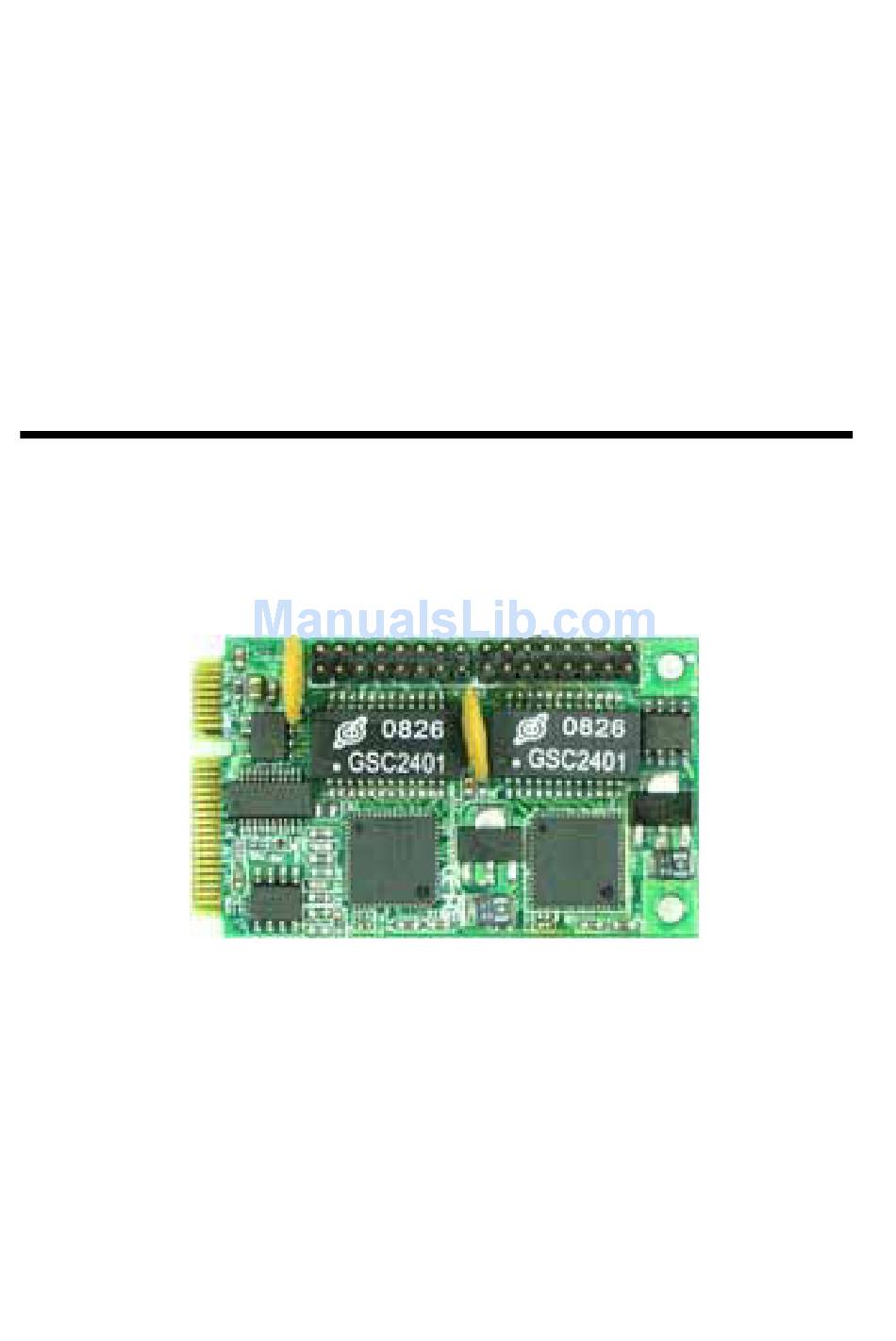

- Page 1 MPX-574 User’s Manual Edition 1.2 2009/11/10...
- Page 2 MPX-574 User’s Manual Copyright Copyright 2008 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
MPX-574 Use’s Manual Packing List: Hardware: MPX-574 Mini-PCI Express LAN Card x1 CD Content: Drivers & User’s Manual Product Specification General Specification Form Factor Mini-PCI Express with 52-pin interface Controller Intel 82574L Gigabit Ethernet Compliance IEEE 802.3 Ethernet interface for 1000Base-T, 100Base-TX, and 10Base-T applications (802.3, 802.3u,... -
Page 4: Mechanical Drawing
MPX-574 User’s Manual Mechanical Drawing MPX-574: LAN Adapter:... -
Page 5: Component Placement
MPX-574 Use’s Manual Component Placement MPX-574D: CN_LAN1 RJ45_1 MPX-574D2: CN_LAN2 CN_LAN1 15 1 RJ45_2 RJ45_1... -
Page 6: Connector Reference
Description RTD0+ RTD1+ RTD0- RTD1- RTD2+ RTD3+ RTD2- RTD3- Active Link100 Link Link1000 LAN Connector: RJ45_1/2 Connector Type: 16-pin (8 x 2) 2.0 x 2.0 mm header RJ45 10/100/1000Mbps connector (MPX-574) Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3-... - Page 7 Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC. Contact Information...
