E. Assembly
TOOLS NEEDED FOR ASSEMBLY:
Medium size flat blade or Philips/cross-point screwdriver, adjustable spanner or metric spanner set.
This barbecue requires two people for assembly. Please remove all packaging materials from all individual
parts before assembling. Please lay out all nuts and bolts and check lengths before assembling. Whilst
every care is taken during the manufacture of this product, care must be taken during the assembly in case
sharp edges are present.
 Excel 100T
1
C18
C14
 Excel 100T
2
C17
 Excel 200T
 Excel 200T
C13
C12
9
 Excel 300T

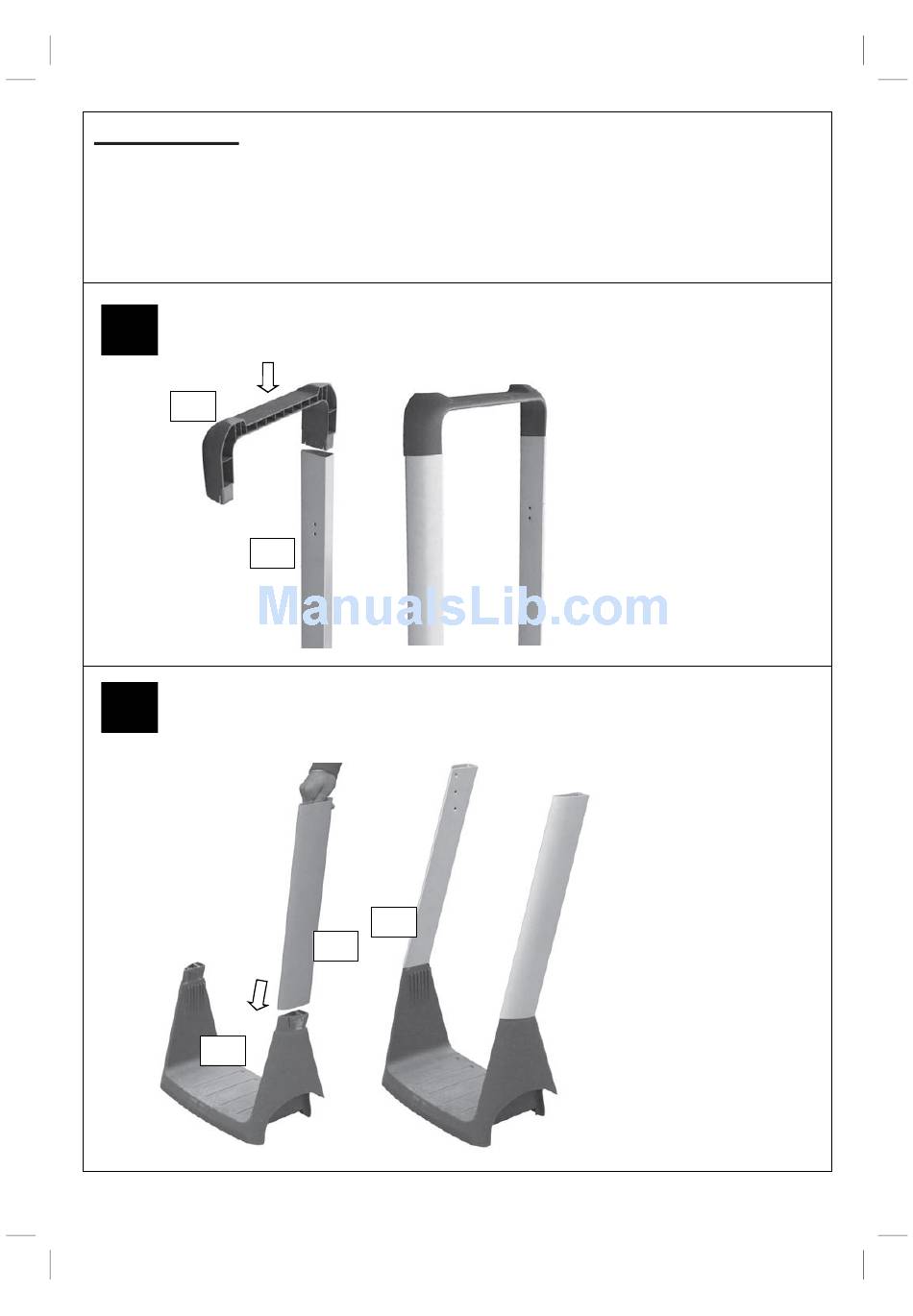

Attach the Right Front Leg
(C14) and Right Rear Leg
(C15) to the Leg End Loop
(C18). The legs are a push
fit onto the leg end loop. In
case of difficulty, they may
need tapping with a soft
faced mallet. Take care not
to damage the parts.
 Excel 300T
Attach the Left Front Leg
(C12) and Left Rear Leg
(C13) to the Gas Bottle
Holder (C17). The legs
are a push fit onto the gas
bottle holder. In case of
difficulty, they may need
tapping with a soft faced
mallet. Take care not to
damage the parts.
