Solectria Renewables PVI 3000 Installation And Operation Manual

Residential/commercial grid-tied photovoltaic inverter
Hide thumbs Also See for PVI 3000:
Table of Contents

Advertisement

Quick Links

PVI 3000/PVI 4000
PVI 5000/PVI 5300
INSTALLATION AND OPERATION MANUAL
Residential/Commercial
Grid-Tied Photovoltaic Inverter
© 2009, Solectria Renewables
Subject to Change REV 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVI 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Solectria Renewables PVI 3000

Summary of Contents for Solectria Renewables PVI 3000

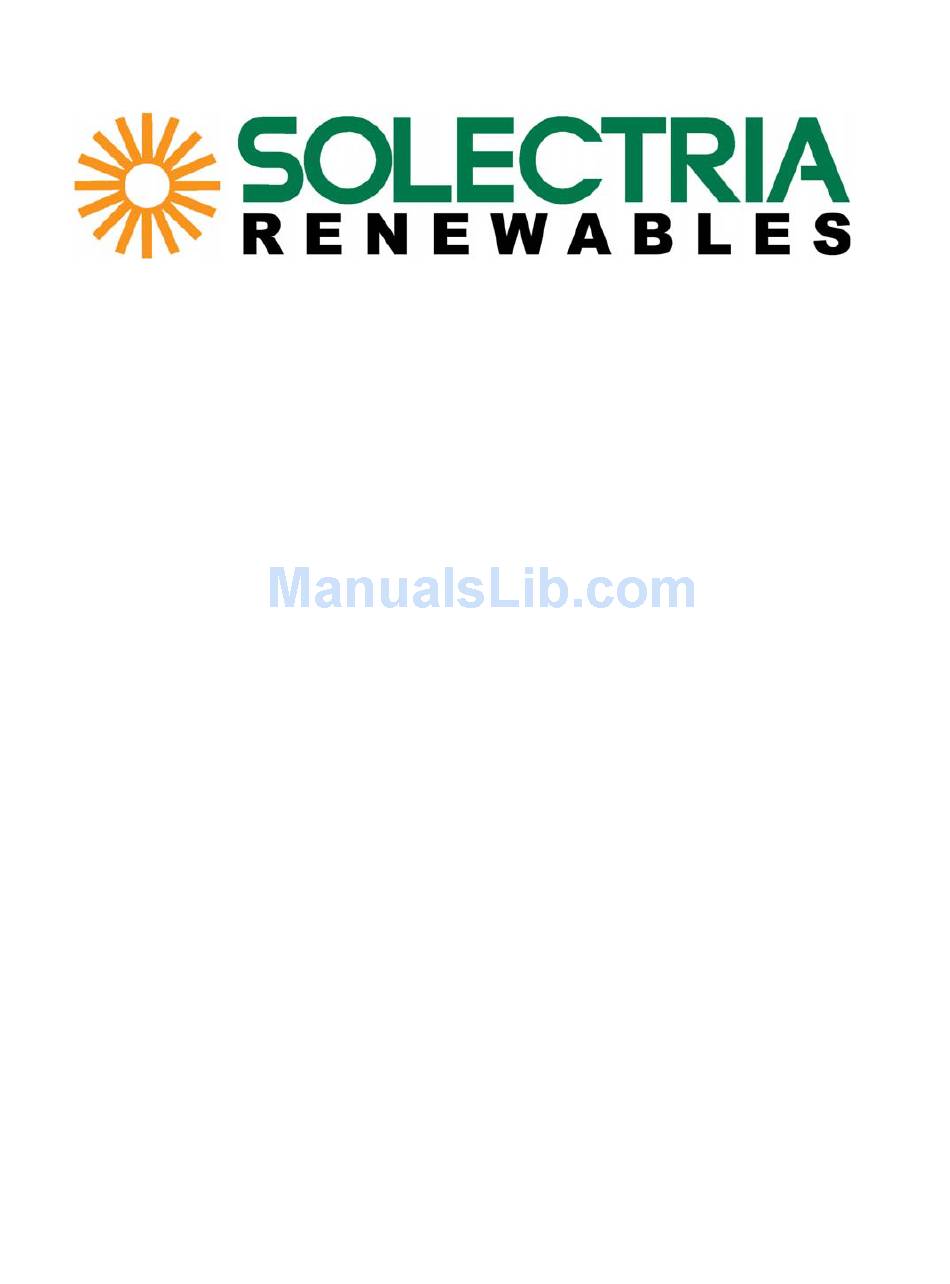

  • Page 1 PVI 3000/PVI 4000 PVI 5000/PVI 5300 INSTALLATION AND OPERATION MANUAL Residential/Commercial Grid-Tied Photovoltaic Inverter © 2009, Solectria Renewables Subject to Change REV 2.0...
