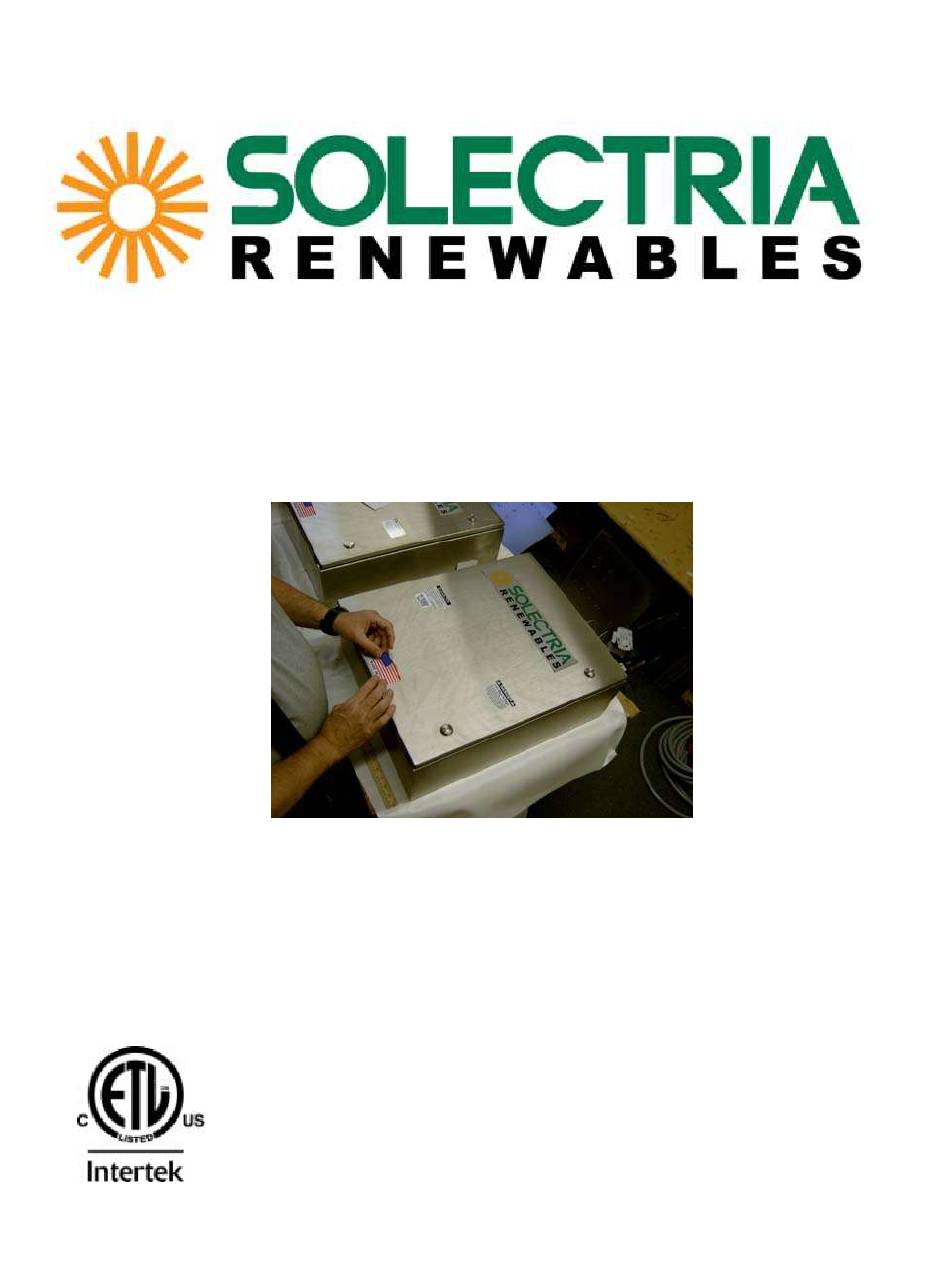

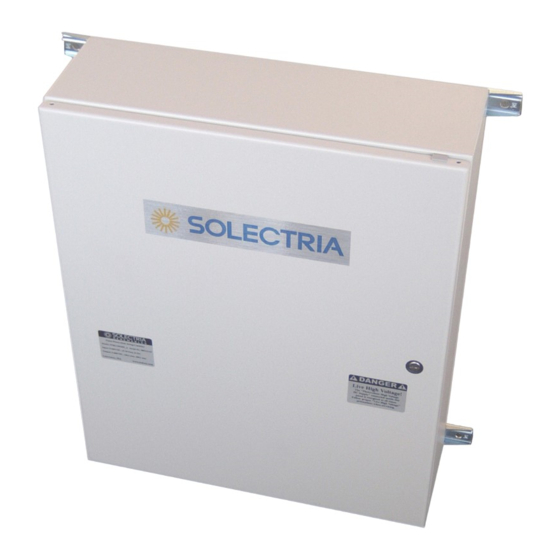

- Page 1 STRCOM Fused String Combiners Installation and Operation Manual STRCOM INSTALLATION AND OPERATION MANUAL Fused String Combiners © 2011, Solectria Renewables LLC Subject to Change DOC-020040 rev 4.4...
- Page 2 STRCOM Fused String Combiners Installation and Operation Manual IMPORTANT SAFETY INSTRUCTIONS This manual contains important instructions that shall be followed during installation and maintenance of the STRCOM Fused String Combiners. To reduce the risk of electrical shock, and to ensure the safe installation and operation of the combiner, the following safety symbols are used to indicate dangerous conditions and important safety instructions.
- Page 3 All electrical installations shall be done in accordance with the local and national electrical codes ANSI/NFPA 70. The STRCOM Fused String Combiner contains no user serviceable parts. Please contact Solectria Renewables or a Solectria Renewables authorized system installer for maintenance. (See Appendix C for Solectria Renewables contact information and authorized system installers.)
-
Page 4: Table Of Contents
STRCOM Fused String Combiners Installation and Operation Manual Table of Contents Introduction………………………………………………………………..………… Installation…………………………………………………………………..……….. 6 Checking for Shipping Damage…………………………………...………. 6 Combiner Mounting.…………………………………………..………….. Electrical Connection and Connection to PV Modules, Inverter and Surge/Lightning Protection. ……………………………………………..Operation, Tests and Commissioning the PV System ………………………..…….. 14 Warranty Information and Liability………………………………..…………………... -
Page 5: Introduction
STRCOM Fused String Combiners Installation and Operation Manual 1 Introduction The STRCOM String Combiner is a commercial, fused string combiner designed to be used for combining multiple strings of PV modules for connection to an inverter or solar charge controller. With this manual the STRCOM string combiner can be installed and operated safely. -
Page 6: Installation
If there is any question about potential shipping damage, contact Solectria Renewables. A digital photo of the damage may be very helpful. Do not accept unit, if visibly damaged or note visible damage when signing shipping company receipt. - Page 7 STRCOM Fused String Combiners Installation and Operation Manual Because the unit has a NEMA4 rating, it can be mounted outdoors. The combiner is designed to be mounted vertically with all the conduits entering and exiting the bottom (6 x 20”) of the unit. It can be mounted flat as well, but pay extra attention to seals. Install the combiner in an accessible location following NEC codes for enclosure and disconnect door clearances and proximity to other equipment.
- Page 8 STRCOM Fused String Combiners Installation and Operation Manual Fig. 2a STRCOM Fused String Combiner Dimensional Mounting Diagram MOUNTING TABS WALL OR 5/16 or 3/8” COMBINER WASHERS STRUCTURE BOLTS CONDUITS IN & OUT Fig. 2b STRCOM Fused Combiner Mounting Diagram (side-view) Mounting Details Using the mounting diagram Fig.
- Page 9 STRCOM Fused String Combiners Installation and Operation Manual Inverter Conduit Array Conduit Location(s) Location(s) Door 6.0” 5.0” 1.0” 0” 0” 4” 11” 17” 19.5” 20” Fig. 2c STRCOM Fused Combiner Conduit Exit Location Diagram (bottom- view, from outside enclosure) In order to maintain the Type 4 rating of the enclosure you must use NEMA 4 conduit fittings.
- Page 10 STRCOM Fused String Combiners Installation and Operation Manual PV Array NEMA4 connections (neg.) Negative Enclosure terminal block Mounts Inverter Tabs (4) connections (neg.) Inverter connections (pos) Ground Bars Array Fuses Door Ground (pos), 4-30 Bonding wires positions Required conduit exit locations PV Array (see Fig.
- Page 11 STRCOM Fused String Combiners Installation and Operation Manual A 12 or 15A fuse can be selected for this module. Example 3: PV module with 8.12A short circuit current rating and a 15A fuse rating. 1.56 x 8.12A= 12.667A A 15A fuse must be selected for this module. Connection of Grounded Conductor Terminal Block (negative conductors): The grounded connection terminal block in the standard version combiner, for array and inverter connections is grounded by the inverter and is not to be grounded...
- Page 12 STRCOM Fused String Combiners Installation and Operation Manual points for array equipment ground conductors depending on the string combiner model: String Combiner Version positions wire size Torque 4-12 fuse 30 (2/lug) 25 in-lb 14-12 AWG 15 (1/lug) 20 in-lb 12-10 AWG (1/lug) 25 in-lb 8 AWG...
- Page 13 STRCOM Fused String Combiners Installation and Operation Manual Representative negative PV string conductors, 10-8AWG recommended. Jumpers (2) Representative positive PV string Ground lugs for 25 conductors, 10- conductors, 10-4AWG 8AWG (or 50, 14-12AWG) and recommended. main lugs for up 250KCM Example positive Example negative conductors to inverter.
- Page 14 STRCOM Fused String Combiners Installation and Operation Manual Representative Representative negative PV string positive PV string conductors, 10-8AWG conductors, 10- recommended. 8AWG recommended.. (Factory Jumper) Ground lugs for 14 conductors, 10-4AWG (or 28, 14-12AWG) and main lugs for up to 250KCM Example positive conductor to inverter.
-
Page 15: Operation, Tests And Commissioning The Pv System
STRCOM Fused String Combiners Installation and Operation Manual WARNING: Fuses in fused combiner must only be replaced with the same make and model fuse. KLKD8, KLKD10, KLKD12, KLKD15, KLKD20 or ATM8, ATM10, ATM12, ATM15 or ATM20. 20A fuses not recommended for use in the 27-30 fuse position versions. - Page 16 (to 10 years total) is purchased, the term becomes 120 months from date of purchase. If Solectria Renewables repairs or replaces a product, its warranty continues for the remaining portion of the original Warranty Period or 90 days from the date of the return shipment to the customer, whichever is greater.
- Page 17 What will Solectria Renewables do? Solectria Renewables will, at its option, repair or replace the defective product free of charge, provided that you notify Solectria Renewables of the product defect within the Warranty Period for your product, and provided that Solectria Renewables, through inspection, establishes the existence of such a defect and that it is covered by the Limited Warranty.
- Page 18 STRCOM Fused String Combiners Installation and Operation Manual c) The product, if repairs have been done to it other than by Solectria Renewables or authorized, trained service personnel; d) The product, if it is used as a component part of a product expressly warranted by another manufacturer;...
-
Page 19: Technical Data
2) Include the following: a. The RMA number supplied by Solectria Renewables, LLC clearly marked on the outside of the box b. A return address to which the unit can be shipped. Post office boxes are not acceptable. - Page 20 STRCOM Fused String Combiners Installation and Operation Manual The open circuit voltage of PV modules depends on the cell temperature and the solar irradiation. The highest open circuit voltage occurs when the PV modules are at the coldest temperature and in bright sun. Part Number scheme: STRCOM 10X15A (-P if for use with positively grounded PV systems) Number of fuse positions...
- Page 21 STRCOM Fused String Combiners Installation and Operation Manual STRCOM STRCOM STRCOM Specifications (for 3 10X__A 15X__A 30X__A specific models Output Continuous Operating Current 150A 280A 340A Maximum Short Circuit Current 225A 338A 675A Number of Outputs Voltage Range 0 - 600VDC Wire Sizes 4AWG- 1/0 –...
- Page 22 The charts below are simplified string sizing examples. Please use the charts on the website for complete charts for use across the country. Appendix C - Contact Information Solectria Renewables LLC 360 Merrimack Street, Building 9 Lawrence, Massachusetts, USA Tel: 978.683-9700 Fax: 978.683-9702...
- Page 23 STRCOM Fused String Combiners Installation and Operation Manual Appendix D – UL1741/IEEE1547 Certification Letter DOC-020040 rev 4.4...
