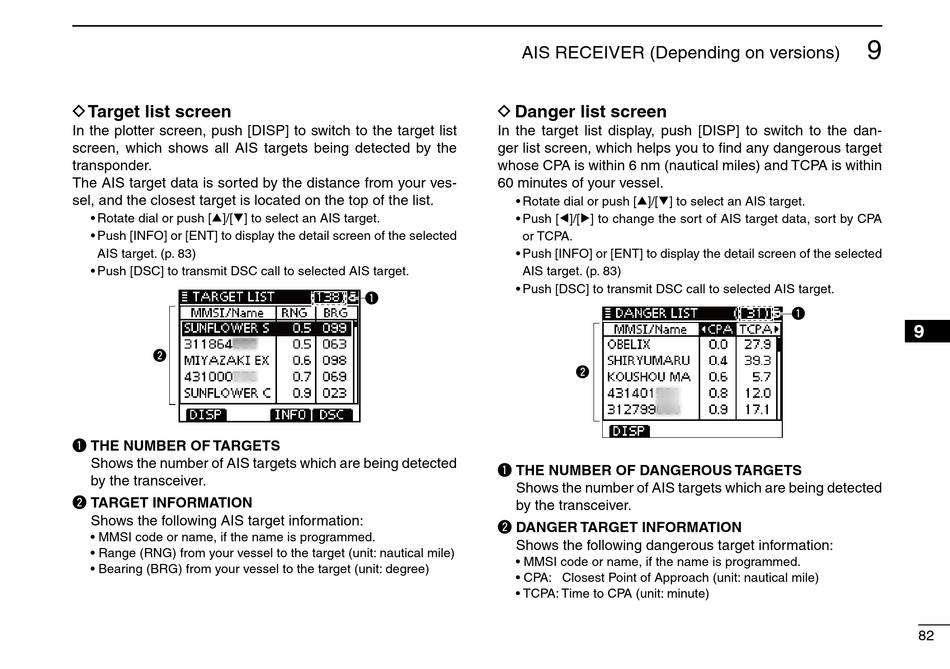

D Target list screen
In the plotter screen, push [DISP] to switch to the target list
screen, which shows all AIS targets being detected by the
transponder.
The AIS target data is sorted by the distance from your ves-
sel, and the closest target is located on the top of the list.
• Rotate dial or push [∫]/[√] to select an AIS target.
• Push [INFO] or [ENT] to display the detail screen of the selected
AIS target. (p. 83)
• Push [DSC] to transmit DSC call to selected AIS target.
w
q THE NUMBER OF TARGETS
Shows the number of AIS targets which are being detected
by the transceiver.
w TARGET INFORMATION
Shows the following AIS target information:
• MMSI code or name, if the name is programmed.
• Range (RNG) from your vessel to the target (unit: nautical mile)
• Bearing (BRG) from your vessel to the target (unit: degree)
AIS RECEIVER (Depending on versions)
D Danger list screen
In the target list display, push [DISP] to switch to the dan-
ger list screen, which helps you to find any dangerous target
whose CPA is within 6 nm (nautical miles) and TCPA is within
60 minutes of your vessel.
• Rotate dial or push [∫]/[√] to select an AIS target.
• Push [Ω]/[≈] to change the sort of AIS target data, sort by CPA
or TCPA.
• Push [INFO] or [ENT] to display the detail screen of the selected
AIS target. (p. 83)
• Push [DSC] to transmit DSC call to selected AIS target.
q
q THE NUMBER OF DANGEROUS TARGETS
Shows the number of AIS targets which are being detected
by the transceiver.
w DANGER TARGET INFORMATION
Shows the following dangerous target information:
• MMSI code or name, if the name is programmed.
• CPA: Closest Point of Approach (unit: nautical mile)
• TCPA: Time to CPA (unit: minute)
w
9
1
2
3
4
5
6
7
8
q
9
10
11
12
13
14
15
16
82
