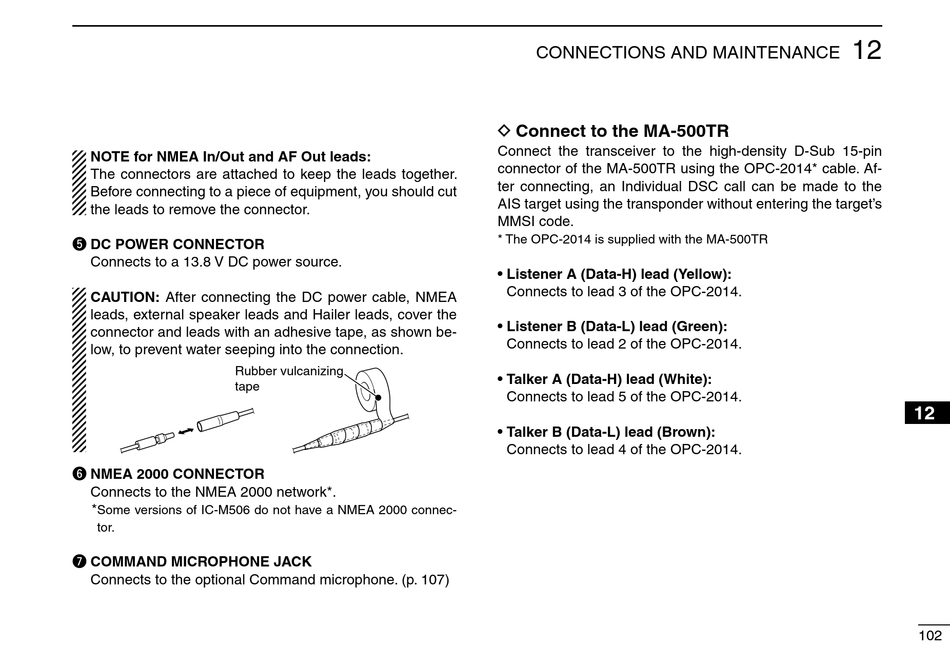

Icom iM506 Instruction Manual page 111

NOTE for NMEA In/Out and AF Out leads:
The connectors are attached to keep the leads together.
Before connecting to a piece of equipment, you should cut
the leads to remove the connector.
t DC POWER CONNECTOR
Connects to a 13.8 V DC power source.
CAUTION: After connecting the DC power cable, NMEA
leads, external speaker leads and Hailer leads, cover the
connector and leads with an adhesive tape, as shown be-
low, to prevent water seeping into the connection.
Rubber vulcanizing
tape
y NMEA 2000 CONNECTOR
Connects to the NMEA 2000 network*.
*
Some versions of IC-M506 do not have a NMEA 2000 connec-
tor.
u COMMAND MICROPHONE JACK
Connects to the optional Command microphone. (p. 107)
CONNECTIONS AND MAINTENANCE
D Connect to the MA-500TR
Connect the transceiver to the high-density D-Sub 15-pin
connector of the MA-500TR using the OPC-2014* cable. Af-
ter connecting, an Individual DSC call can be made to the
AIS target using the transponder without entering the target's
MMSI code.
* The OPC-2014 is supplied with the MA-500TR
• Listener A (Data-H) lead (Yellow):
Connects to lead 3 of the OPC-2014.
• Listener B (Data-L) lead (Green):
Connects to lead 2 of the OPC-2014.
• Talker A (Data-H) lead (White):
Connects to lead 5 of the OPC-2014.
• Talker B (Data-L) lead (Brown):
Connects to lead 4 of the OPC-2014.
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
102
