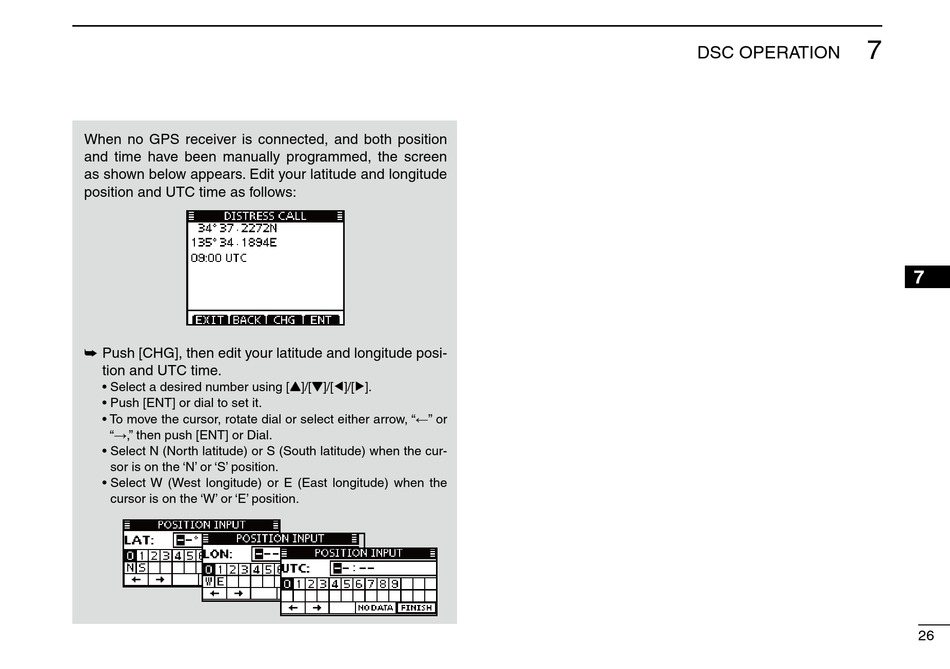

Icom iM506 Instruction Manual page 35

When no GPS receiver is connected, and both position
and time have been manually programmed, the screen
as shown below appears. Edit your latitude and longitude
position and UTC time as follows:
Push [CHG], then edit your latitude and longitude posi-
➥
tion and UTC time.
• Select a desired number using [Y]/[Z]/[Ω]/[≈].
• Push [ENT] or dial to set it.
• To move the cursor, rotate dial or select either arrow, "←" or
"→," then push [ENT] or Dial.
• Select N (North latitude) or S (South latitude) when the cur-
sor is on the 'N' or 'S' position.
• Select W (West longitude) or E (East longitude) when the
cursor is on the 'W' or 'E' position.
7
DSC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
26
