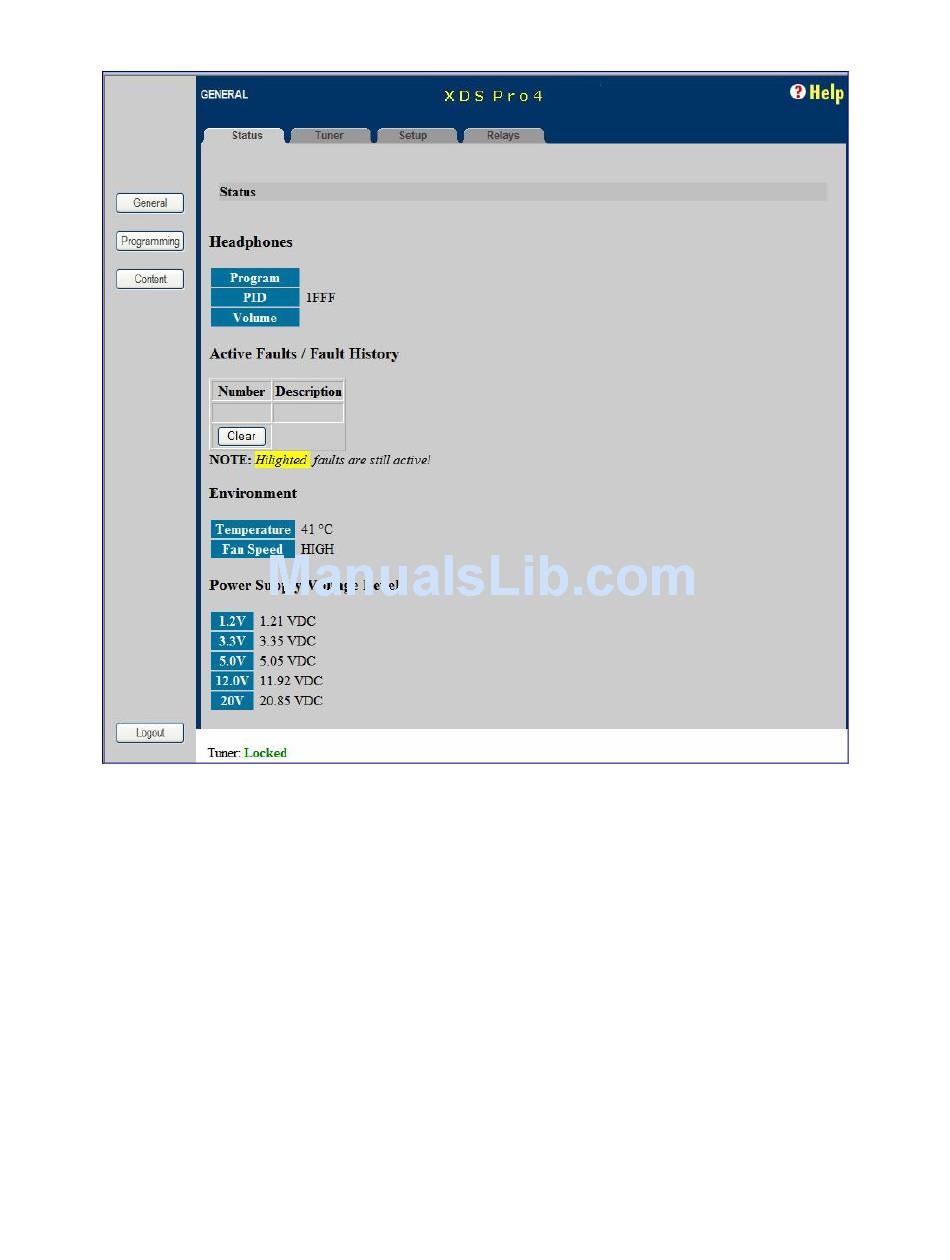

6.1.2 The Tuner Tab

The Tuner Tab presents the user with tuner related data. This data include:
•
The frequency the tuner is tuned to.
•
The tuner's symbol rate.
•
The locked or unlocked status of the tuner.
•
The acquisition state of the tuner: acquiring, tracking, or fade.
•
Eb/No, or energy per bit relative to noise floor (see section 4.2).
•
AGC, or automatic gain control (see section 4.2).
•
Fade count of the tuner.
•
The number of Reed-Solomon errors that the tuner has ecountered.
•
The LNB offset the tuner is currently using.
•
The on or off status off the LNB.
The fade count and Reed-Solomon errors can be reset by pressing the Clear Statistics
button.
