U/D

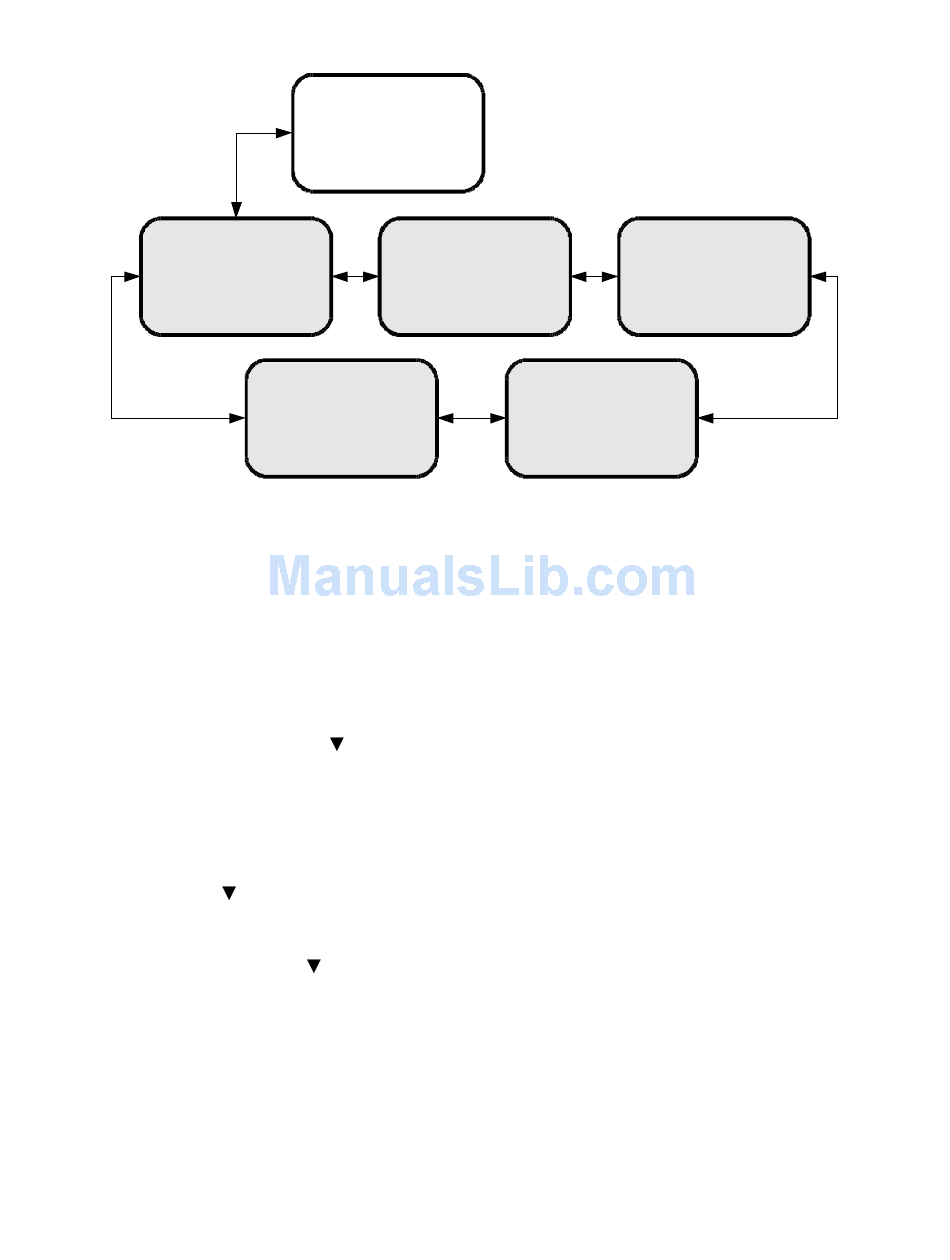

Active Faults
OK
Storage Status
L/R
Total: 3884MB
Avail: 3683 MB
Used: 4%

4.2.2 The SETUP Sub-Menus

By navigating from the Main Menu to Setup, the user reaches the Setup sub-menus. The
different sub-menus available under Setup are:
•
Serial Number: displays the receiver's serial number. Pressing the 3 quick key
underneath "PWD" will display your receiver's affiliate site password.
•
M&C Ports: displays M&C port settings.
•
Network: pressing the
•
Alarms: allows you to set the alarm mask as a hex value.
•
Version: pressing SET in this menu will display the receiver's firmware version.
•
Factory Defaults: pressing SET will offer you the option of resetting the receiver's
settings to factory defaults. Press 1 to confirm or 3 to cancel. Reboot is required.
•
Relays: allows you to switch any of the individual relay signals on Relay A or B to
to choose which Relay port to edit, then press SET to modify which
on. Press
pins on the relay are activated. A '0' is an un-activated relay and a '1' is an activated
relay. The first position is the Relay 1, the second position is Relay 2, and so on.
•
Tuner: pressing the
X-Digital Systems
XDS-PRO4
XDS PRO4
Status
Fault History
L/R
5: Tuner not Locked
L/R
will navigate into the Network sub-menus.
will navigate into the Tuner sub-menus.
15
Environment
L/R
Temp: 39 °C
Fan: HIGH
CLR
Power Status
1.2V=1.21
5.0V=5.09
...
L/R
