Intek M-100 PLUS Owner's Manual

Multi standard programmable 27 mhz cb mobile transceiver
Hide thumbs Also See for M-100 PLUS:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Man. M-100 PLUS UK_ITA
8-10-2008 15:00
Pagina 1

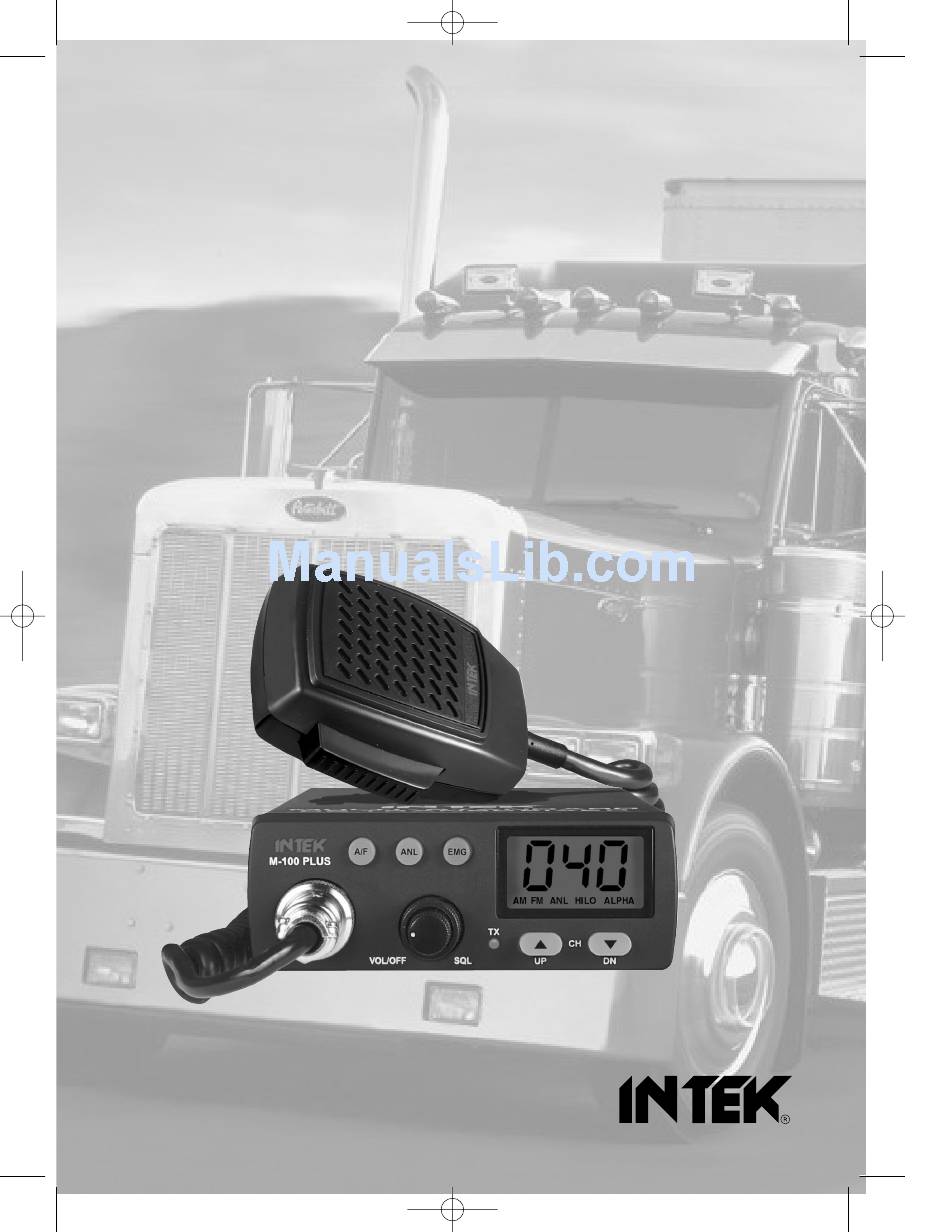

M-100 PLUS
MULTI STANDARD PROGRAMMABLE
27 MHz CB MOBILE TRANSCEIVER
OWNER'S MANUAL
MANUALE DI ISTRUZIONI

Advertisement

loading
Need help?

Need help?

Do you have a question about the M-100 PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for Intek M-100 PLUS

Summary of Contents for Intek M-100 PLUS

  • Page 1 Man. M-100 PLUS UK_ITA 8-10-2008 15:00 Pagina 1 M-100 PLUS MULTI STANDARD PROGRAMMABLE 27 MHz CB MOBILE TRANSCEIVER OWNER'S MANUAL MANUALE DI ISTRUZIONI...

  • Page 2: Declaration Of Conformity

    Man. M-100 PLUS UK_ITA 8-10-2008 15:00 Pagina 2 Declaration of Conformity NOTICE ! It is recommended to carefully read this owner’s manual before using the product. This will also help the user to prevent using the radio in violation of the regulations valid in the country where the product is used, as well as to avoid any possible interferences with other services.

  • Page 3: Table Of Contents

    With a correct use of the product in accordance with the operating method described in this manual, the product will offer a trouble free use for many years. INTEK is constantly engaged to develop and provide quality products meeting the customers requirements, however any suggestion or comment on this product that might help us to improve quality are warmly welcome.
  • Page 4 Man. M-100 PLUS UK_ITA 8-10-2008 15:00 Pagina 4 Controls, Indicators and operation Front Panel M-100 PLUS AM FM HILO ALPHA VOL/OFF A/F Key This key allows to select the AM or FM operating mode, in both TX and RX. The AM/FM operating mode selection is possible only if it if allowed by the programmed frequency band, otherwise the AM/FM selection is not possible.
  • Page 5 Man. M-100 PLUS UK_ITA 8-10-2008 15:00 Pagina 5 Controls, Indicators and operation LCD Display AM FM HILO ALPHA Channel Number It indicates the operating channel number or the frequency band ID code. ALPHA Icon The ALPHA Icon (B) is lighted when an intermediate channel is selected.
  • Page 6 Man. M-100 PLUS UK_ITA 8-10-2008 15:00 Pagina 6 Controls, Indicators and operation SQL Control (Squelch adjustement) The SQUELCH control allows to silent the receiver by cutting the background noise, when no signals are received. Turn the knob clockwise until the background noise is cut. Turn the knob counter clockwise (SQUELCH opening) in order to listen to the weakest signals.

  • Page 7: Controls And Operation

    Man. M-100 PLUS UK_ITA 8-10-2008 15:00 Pagina 7 Controls and operation Microphone PTT (Push-to-Talk) Key Transmitter key. Press the PTT key (14) to transmit and release it to return to the receive mode. MICROPHONE Plug 4-pin microphone connector with locking ring. Connect it to the microphone connector on the front panel of the radio.

  • Page 8: Installation

    Man. M-100 PLUS UK_ITA 8-10-2008 15:00 Pagina 8 Installation Installation Before installing the main unit in the vehicle, check and select the most convenient location, in order that the radio will be easy to reach and comfortable to operate, without disturbing or interfering with the vehicle drive. Use the supplied bracket and hardware to install the radio.

  • Page 9: Installing And Connecting The Mobile Antenna With Magnet Base (Full Kit Version)

    Man. M-100 PLUS UK_ITA 8-10-2008 15:00 Pagina 9 Installing and connecting the mobile antenna with magnet base FULL KIT VERSION Installing and connecting the mobile antenna with magnet base A 27 MHz mobile antenna with magnet base and 4m RG-58/U is included in the kit. Connect the whip (A) to the magnet base and tighten the locking screw (B) using the supplied tool.

  • Page 10: Frequency Bands Table - User Information

    Frequency bands table - User Information Frequency Bands Table The transceiver INTEK M-100 PLUS includes an advanced multi-standard programmable circuit, which allows to program different frequency bands, specifications and operating modes, in conformity with the regulations in the country where the product is used. 9 programmable frequency bands are available, as per the below table :...

  • Page 11: Frequency Band Selection / Programming

    Man. M-100 PLUS UK_ITA 8-10-2008 15:00 Pagina 11 Frequency band selection / programming Frequency Band Selection / Programming This two-way CB radio must be programmed and exclusively used on a frequency band allowed in the country where the product is used. When radio is switched ON, the current programmed frequency band code will be displayed (blinking) for about 3 seconds.

  • Page 12: Specifications

    Man. M-100 PLUS UK_ITA 8-10-2008 15:00 Pagina 12 Specifications Specifications General Channels 40 FM (refer to the frequency bands table at page 8) Frequency range 27 MHz Citizen Band Frequency control P.L.L. Operatine temperature -10°/+55°C DC input voltage 13.2Vdc ±15%...
