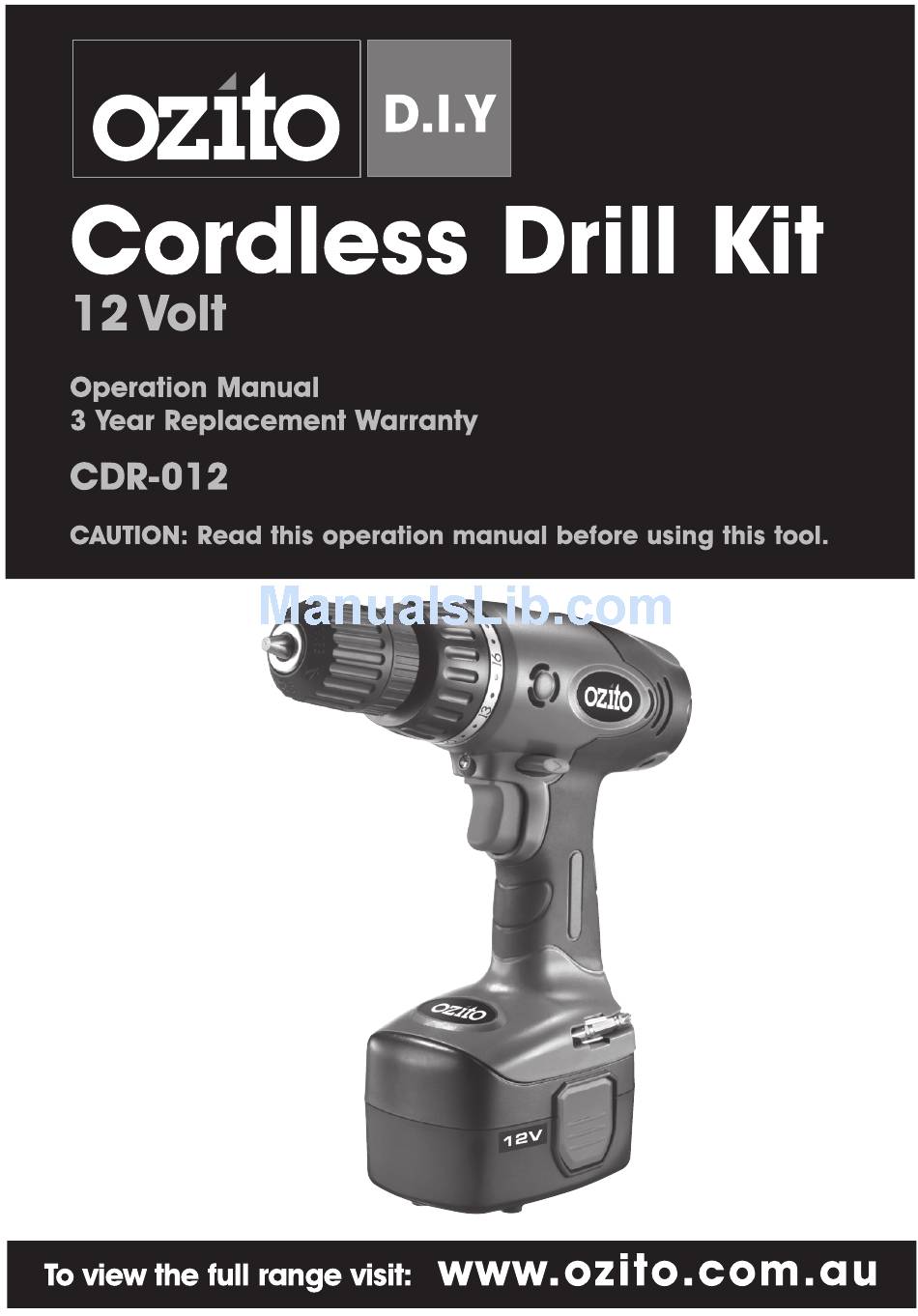

Ozito CDR-012 Operation Manual
  1. Manuals
  2. Brands
  3. Ozito Manuals
  4. Drill
  5. CDR-012
  6. Operation manual

Ozito CDR-012 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDR-012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ozito CDR-012

Summary of Contents for Ozito CDR-012

  • Page 2: Specifications

    SPECIFICATIONS – MODEL NO. CDR-012 Battery power: Charge time: 3 - 5 hours No load speed: 0 – 580RPM Chuck: 10mm, keyless Torque: 12Nm Batteries: Weight with 1 battery: 1.5kg Features: Adjustable torque 20+1 torque settings Accessories included 10. Battery Pack Release Button 1.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS ……………………………………….. Page 1 TABLE OF CONTENTS………………………………….. Page 2 INTRODUCTION………………………………………… Page 3 SAFETY INSTRUCTIONS……………………………….. Page 3 DRILL OPERATION …………………………………….. Page 9 MAINTENANCE …………….………………………….. Page 11 SPARE PARTS …………….……………………………… Page 11 DESCRIPTION OF SYMBOLS …………………………. Page 12 CONTENTS ……………………………………………... Page 13 WARRANTY………………………………………………...

  • Page 4: Introduction

    INTRODUCTION Congratulations on purchasing an Ozito 12V Cordless Drill CDR-012. We aim to provide quality tools at an affordable price. We hope you will enjoy using this tool for many years. Your Ozito Cordless Drill has been designed for general purpose drilling or screwdriving around the home.

  • Page 5: General Safety Rules

    GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 GENERAL SAFETY RULES (cont.) d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  • Page 7 CHARGER AND BATTERY PACK SAFETY INSTRUCTIONS THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR BATTERY CHARGER. • Before using the charger, read all instructions and cautionary markings on charger, battery pack and product using the battery pack. Danger! If the battery pack case is cracked or damaged, do not insert into charger.
  • Page 8 ADDITIONAL SAFETY RULES FOR CHARGER AND BATTERY The battery pack is not fully charged out of the carton. First read the safety instructions and then follow the charging notes and procedures. • The longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 18 - 24ºC.
  • Page 9 CHARGING YOUR BATTERIES (cont.) NOTE: If light on the charger cradle fails to come on. • Check the adaptor is securely plugged into the wall outlet and is switched on. • Check battery is firmly seated onto the charger cradle. •...

  • Page 10: Drill Operation

    DRILL OPERATION The ON/OFF Switch Turn the drill ON by depressing the variable speed switch (6). To turn the drill OFF, release the variable speed switch (6). Speed Control The speed can be varied from 0 to maximum, depending on the pressure applied to the variable speed switch.
  • Page 11 DRILL OPERATION (cont.) Warning! Do not hold the chuck body with one hand and use power of the drill to tighten or loosen the chuck jaws. The chuck body could slip and your hand could come in contact with a rotating accessory. This could cause an accident resulting in personal injury.

  • Page 12: Maintenance

    • Blow out the ventilation slots with compressed air periodically . Note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the drill by an unauthorised person or by mishandling of the tool. SPARE PARTS Limited spare parts are available subject to availability.

  • Page 13: Description Of Symbols

    DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts ø Direct current Diameter Milliamperes No load speed Revolutions or Electrical Emissions reciprocation per minute Conformity (EMC) Read instruction manual Warning Indoor use only Double insulated Isolation transformer Polarity Thermal cut-out Transformer Energy protection at 130ºC Rating (MEPS) Do not use or store battery in...

  • Page 14: Contents

    1 x 12V Cordless Drill 2 x Double Ended Screw Driving Bits 1 x AC Charger Adaptor 1 x Instruction Manual OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au...

  • Page 15: Warranty

    PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
