2.2

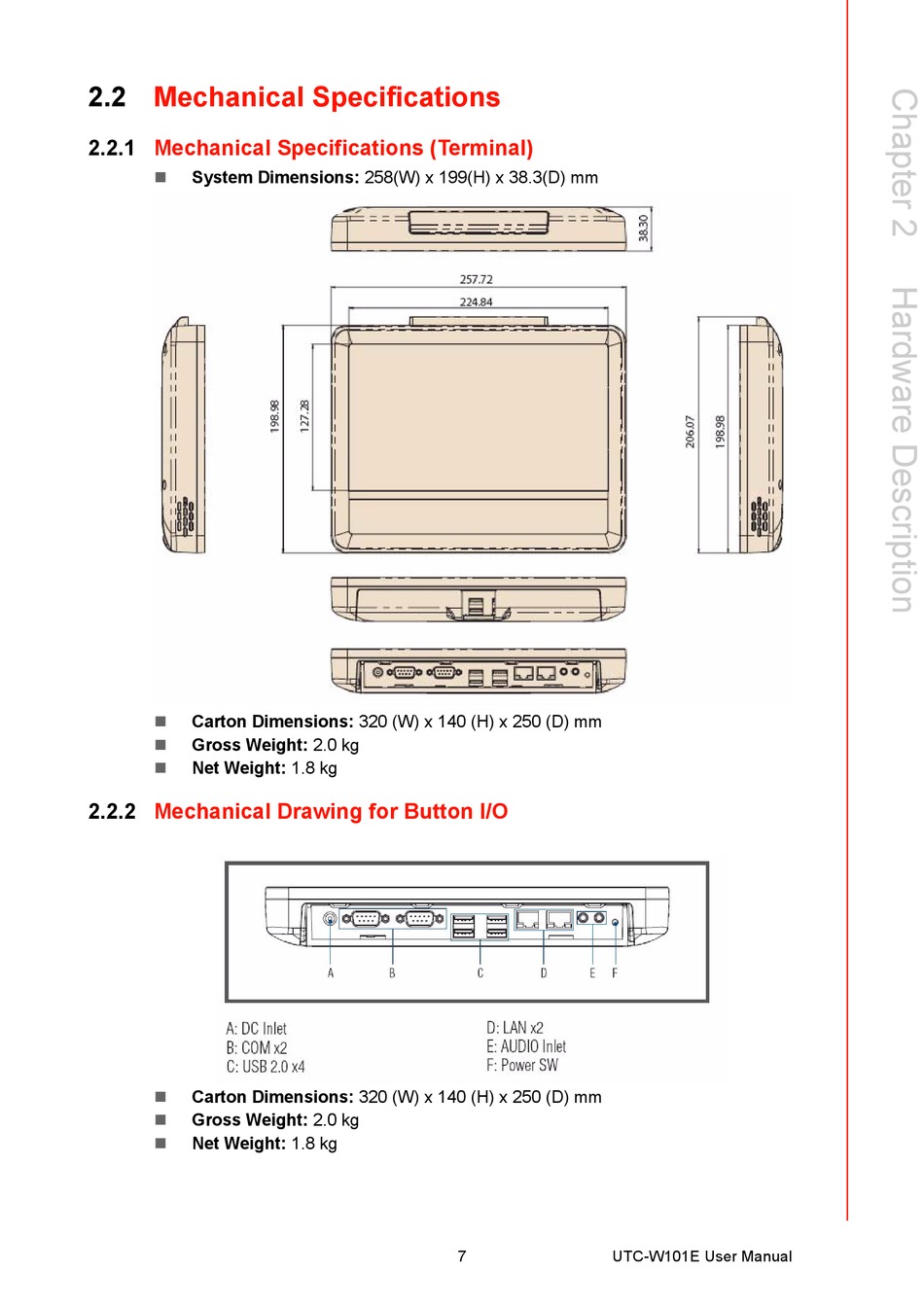

Mechanical Specifications

2.2.1

Mechanical Specifications (Terminal)

! System Dimensions: 258(W) x 199(H) x 38.3(D) mm
! Carton Dimensions: 320 (W) x 140 (H) x 250 (D) mm
! Gross Weight: 2.0 kg
! Net Weight: 1.8 kg
2.2.2

Mechanical Drawing for Button I/O

Carton Dimensions: 320 (W) x 140 (H) x 250 (D) mm
!
! Gross Weight: 2.0 kg
! Net Weight: 1.8 kg
7 UTC-W101E User Manual
