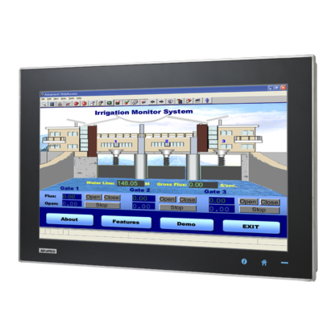

Multi-touch panel computer with amd dual-core processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
TPC-XX40
Multi-Touch Panel Computer
with AMD Dual-core Processor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPC 40 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech TPC 40 Series

Summary of Contents for Advantech TPC 40 Series

  • Page 1 User Manual TPC-XX40 Multi-Touch Panel Computer with AMD Dual-core Processor...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 4 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
  • Page 5 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 6 TPC-XX40 User Manual...

  • Page 7: Table Of Contents

    Contents Chapter General Information ......1 Introduction ....................2 Packing List....................2 Specifications .................... 3 1.3.1 System Kernel................3 1.3.2 I/O Ports..................3 1.3.3 Safety and Environment..............3 LCD Specifications..................4 Touchscreen Specifications ..............4 Power ......................4 I/O Ports Arrangement ................5 Figure 1.1 TPC-1840WP/2140WP- I/O Port Arrangement ..
  • Page 8 UI Operating Process................32 Table C.1: Status indicator table..........32 Table C.2: Button code definition..........37 Appendix D Notice ..........39 Notice...................... 40 Appendix E Comport pin definition ..... 41 COM1/ COM2/ COM3: RS-232............... 42 COM4(Option): RS-422/ 485 ..............42 RS-422/ 485 mode setting by BIOS............

  • Page 9: Chapter 1 General Information

    Chapter General Information...

  • Page 10: Introduction

    Introduction With brand-new ID design, TPC-1840/2140 series provide high resolution 18.5"/21.5" display and PCT multi-touch in 16:9 wide format. By embedding AMD T56E 1.65GHz processor with external APU, TPC-1840/2140 can support advanced graphical per- formance in more complex applications. Built-in function and home key button for greater user usability and operating safety.

  • Page 11: Specifications

    Specifications 1.3.1 System Kernel  CPU: AMD G-series T56E 1.65GHz  BIOS: AMI 32Mbit BIOS  System Chipset: A50M FCH  VGA: Integrated in A50M FCH  Memory: 4GB SO-DIMM DDR3 SDRAM  LAN: 10/100/1000Base-T x 2  Watchdog Timer: 1 ~ 255 sec (system) ...

  • Page 12: Lcd Specifications

    LCD Specifications TPC-1840WP TPC-2140WP Display Type WXGA LED LCD Full HD LED LCD Size (diagonal) 18.5" 21.5" Maximum Resolution 1366 x 768 1920 x 1080 Maximum Colors 16.7 M 16.7 M Viewing Angle 170°/160° 178°/178° Luminance (cd / m2) Contrast Ratio 1000:1 5000:1 Backlight...

  • Page 13: I/O Ports Arrangement

    I/O Ports Arrangement The arrangement of the I/O ports is shown in Figure 1.1 Figure 1.1 TPC-1840WP/2140WP- I/O Port Arrangement Panel Mounting There is an adhesive waterproof gasket on the Mg front bezel. Make sure the waterproof gasket is in position before installing TPC into the panel opening. Install the TPC into the panel opening.

  • Page 14: Dimensions And Cutout

    Dimensions and Cutout TPC-1840WP  Weight: 8kg Dimensions (W x H x D):  – 488.1 x 309.1 x 56.7 (19.2" x 12.2" x 2.2")  Cutout: – 479.3 x 300.3 mm (19.2" x 12") 309.10 232.20 298.34 Figure 1.3 TPC-1840WP Dimensions TPC-XX40 User Manual...
  • Page 15 TPC-2140WP Weight: 8.5kg  Dimensions (W x H x D):  – 580.7 x 355.3 x 56.7 (22.8" x 14" x 2.2")  Cutout: – 551.1 x 345.7" (22.1" x 13.8") 355.30 269.70 343.7 Figure 1.4 TPC-2140WP Dimensions TPC-XX40 User Manual...
  • Page 16 TPC-XX40 User Manual...

  • Page 17: Chapter 2 System Setup

    Chapter System Setup...

  • Page 18: System Setup

    System Setup You can easily get TPC started by following the below steps. Unpack the TPC package. Check the packing list at the beginning of this manual to make sure all items have been included. Figure 2.1 Unpack the Package Open side cover and then Install a CFast card containing Windows CE, Embed- ded Windows XP or another operating system.
  • Page 19 Connect the power connector to the 24 V power lines. The power lines can either be of some power adapter or in-house power source. Figure 2.3 Pin Definition of Power Connector Figure 2.4 Power Receptor Plug the power lines into the system power receptor. Power on the system.

  • Page 20: Installing The Drivers

    TPC-1840 will use built-in PCT touch driver of OS If operating under WindowsXP SP3, Windows 7 and Windows 8. 2.2.2 Installation of Watchdog driver Enter into Watchdog folder, double click AdvWDT icon, and then click "Next" under InstallShield Wizard window. Select "Advantech [EC] WDT” and click “Next” Click “Install” TPC-XX40 User Manual...
  • Page 21 Click "Finish" to finish the installation Select “Yes, I want to restart my computer now” and click “OK” After installing Watchdog driver, a "Watchdog Service Configuration" icon will show in control panel. TPC-XX40 User Manual...
  • Page 22 Double click the "Watchdog Service Configuration" icon, and you can configure the Watchdog timer function. TPC-XX40 User Manual...

  • Page 23: Installation Of Graphic Driver

    2.2.3 Installation of graphic driver Enter into TS folder, enter into” graphic driver for Windows 7" Driver folder and double click setup icon, and then click “Next” under setup wizard window. Click “Install” Select “Express” and click “Next” TPC-XX40 User Manual...
  • Page 24 Click “Accept” Click “Finish” to finish the installation TPC-XX40 User Manual...

  • Page 25: Installation Of Lan Driver

    2.2.4 Installation of LAN driver Enter into TS folder, enter into “Ethernet driver for Windows 7" Driver folder and double click setup icon, and then click “Next” under setup wizard window. Click ”Install” Click “Finish” to finish the installation TPC-XX40 User Manual...

  • Page 26: Cabinet Installation Guide

    Cabinet Installation Guide Follow the following steps to setup TPC-1840/2140 series, and please pay attention that Ground pin of TPC-1840/2140 series should be connected to earth ground. Under this circumstance, TPC-1840/2140 series could have the best performance such as EMI immunity, ESD immunity, Surge immunity and also system isolation. If TPC- 1840/2140 series is embedded in the cabinet, TPC-1840/2140’s ground, cabinet’s ground and earth ground should all be connected together.

  • Page 27: Features In Windows Embedded

    Chapter Features in Windows Embedded...

  • Page 28: Features In Windows Embedded

    Advantech provides a pair of utilities to operate EWF, OSLock andOSUnLock. Refer the training slide in the folder, file name is “Advantech XPe Add-one.pdf”.

  • Page 29: Appendix A Easy Installation

    Appendix Easy Installation...

  • Page 30: Easy Installation

    Easy Installation With easy installation, a person can complete panel mount process by himself, just follow following steps: Step 1: Release the 2 screws in the top of TPC and the snap hook will arise. Step 2: And then release the 2 screws in the bottom of TPC TPC-XX40 User Manual...
  • Page 31 Step 3: Set TPC cross the cut-out hole and push it into the wall, the snap hook will hold the machine on the wall. Step 4: Panel-mount installation complete Note! While using easy installation, the suggested mounting panel thickness is less than 2 mm (0.079").
  • Page 32 TPC-XX40 User Manual...

  • Page 33: Hdd Assembly Instructions And Msata Expansion25

    Appendix HDD assembly instructions and mSATA expansion...

  • Page 34: Hdd Assembly Instructions

    HDD Assembly Instructions Step 1: Fix 2.5" HDD/SSD on the bracket, shown as follows: Step 2: Install the dampers in the bracket and fix by four screws. Step 3: Install HDD module into system and then cover back the side cover to finish. TPC-XX40 User Manual...

  • Page 35: Msata Expansion

    mSATA expansion Step1: Insert mSATA module to mini-PCIE slot as following picture shows: Step2: Change BIOS settings as following operations Access BIOS setting page Choose “chipset” page TPC-XX40 User Manual...
  • Page 36 Choose “South Bridge” and then enter Choose “MINI Card/M-SATA” option and enter” Choose “M-SATA” and enter Press “ESC” to quit TPC-XX40 User Manual...
  • Page 37 Press “Save & Exit” option and enter Use “->” key Choose “Yes” to complete setting TPC-XX40 User Manual...
  • Page 38 TPC-XX40 User Manual...

  • Page 39: Appendix Cui Operating Process

    Appendix UI Operating Process...

  • Page 40: Ui Operating Process

    UI Operating Process This section is to introduce how to operate HMI utility(GL_Utility), you can download the utility from Advantech's product support portal of TPC-1840WP/2140WP at http://support.advantech.com. See the process below: As you can find 2 function buttons in the lower right corner of front panel, represents “intelligent”...
  • Page 41 One press Home Key-> Home – Back to desktop (default setting) Home - Execute Home-key App (Set up in setting page) Long press Home Key-> Home - Long press to disable / enable touch function TPC-XX40 User Manual...
  • Page 42 One press Intelligent Key-> Intelligent - Advantech Intelligent Utility A. Quick start-> – Press “+” to add shortcut – Long press the icon to perform “right click” until an “X” mark appears in upper right corner to “delete” TPC-XX40 User Manual...
  • Page 43 B. Setting -> – Password confirmation for authority confirmation when first log in, default password is “1234” without input order to active. – Setting - Home-key: Select an execute file to set up as "Home-key" App, in default path is to show “desktop” TPC-XX40 User Manual...
  • Page 44 – Setting - Brightness: Brightness control from 1 to 8 – Setting - Password: Change password function TPC-XX40 User Manual...
  • Page 45 C. System management-> – System information: – Self Diagnosis: Note!* TPC-1840/2140 also provides open button code as following definition for customer's configuration to their Apps/SW applications. The codes are defined from general keyboard input. Table C.2: Button code definition One press Long press I key(icon) Ctrl+Shift+Alt+I...
  • Page 46 TPC-XX40 User Manual...

  • Page 47: Appendix D Notice

    Appendix Notice...

  • Page 48: Notice

    Notice RS-422/485 terminal impedance calculation: In order to improve transmission speed for big data and provide steady signal in long distance transmission of RS422/485, we'll add a terminal impedance that matches transmission line's impedance. Another key for correct signal transmission is that the Vfsb of receptor must be +/-0.2V.

  • Page 49: Appendix E Comport Pin Definition

    Appendix Comport pin definition...

  • Page 50: Com1/ Com2/ Com3: Rs-232

    COM1/ COM2/ COM3: RS-232 Pin Definition COM1/ COM2/ COM3 Signal NDCD NDTR NDSR NRTS NCTS COM4(Option): RS-422/ 485 The serial port COM4 on the TPC-1840 series are adjustable by BIOS. It can be set to RS-422 or RS-485 mode. This port is designed with auto data flow control capabil- ity.In other words, the TPC-1840 series can automatically detect the data flow direc- tion at this port when the two wired RS-485 communication is activated.

  • Page 51: Rs-422/ 485 Mode Setting By Bios

    RS-422/ 485 mode setting by BIOS Enter into BIOS setup utility Enter into Advanced tab and select Serial ports Configuration. Select Serial Port4 Configuration (COM4) for RS-422/ 485 mode setting. TPC-XX40 User Manual...
  • Page 52 The default setting is RS-422 mode. TPC-XX40 User Manual...
  • Page 53 TPC-XX40 User Manual...
  • Page 54 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2013...

This manual is also suitable for:

Tpc-1840Tpc-2140
