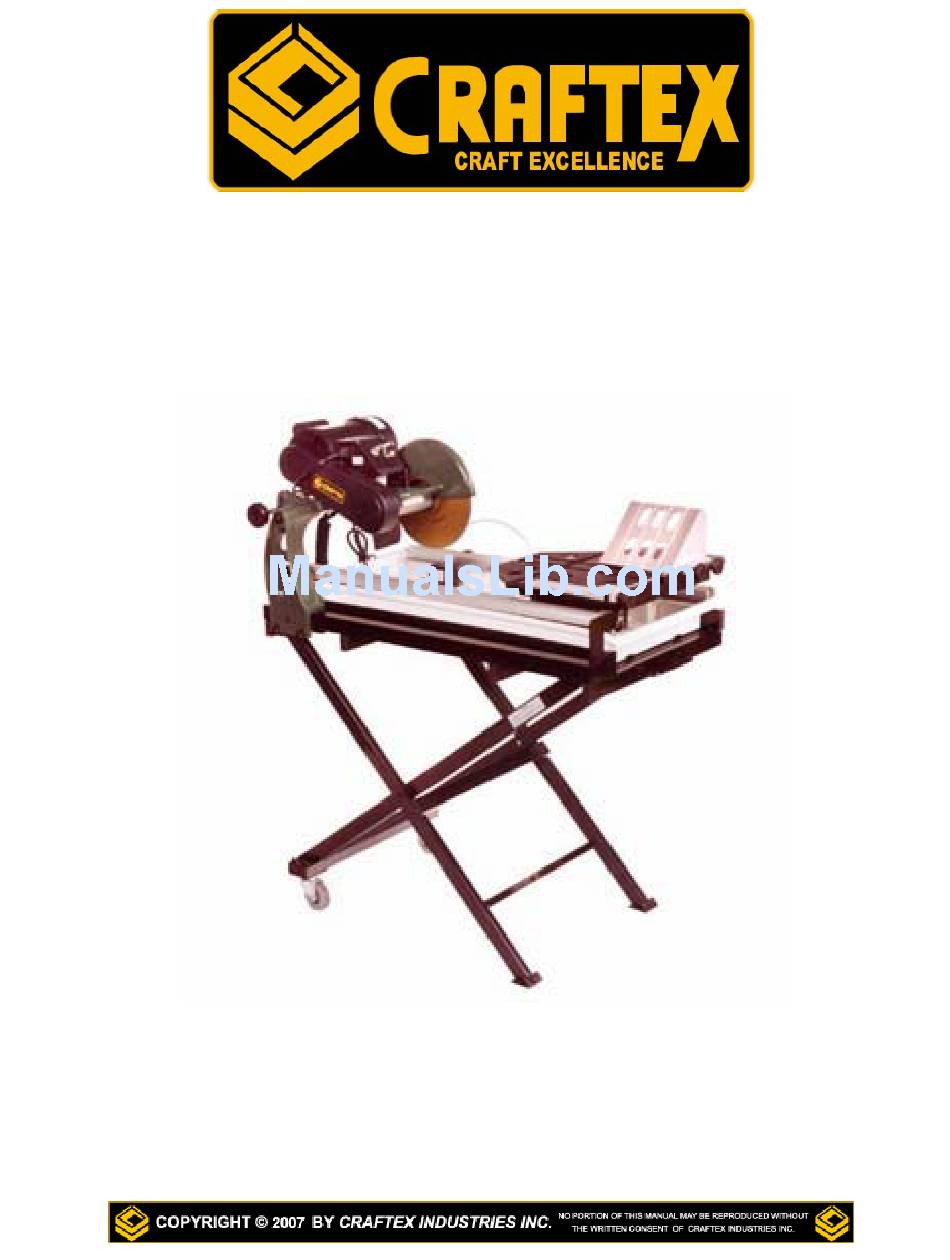

- Page 1 OWNERS MANUAL B2470-10” TILE CUTTING SAW...
-
Page 2: Table Of Contents
B2470 – Table of Contents General Safety Instructions Page 3 Safety Warning Page 4 Grounding Instructions Page 5 Features Page 6 Assembly Page 7 Changing/Installing the Blade Page 7 Water Supply Page 8 Operation Page 8 Cutting Tile Page 9... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS EXTREME CAUTION SHOULD BE USED IN OPERATING ALL POWER TOOLS. KNOW YOUR POWER TOOL, BE FAMILIAR WITH ITS OPERATION. READ OWNER’S MANUAL PRACTICE SAFE USAGE PROCEDURES AT ALL TIMES. CONNECT your machine ONLY to the matched and specified power source. -
Page 4: Safety Warning
SAFETY WARNING There are many dusts born chemicals in the air when we are sanding, drilling, sawing and grinding. Many of these contain chemicals known to cause cancer, birth defects and other reproductive harm. To help reduce the risk from these chemicals you should always work with approved safety equipment, dust masks that are designed to filter out microscopic particles and always work in a well-ventilated area. -
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equipment- ground conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 6: Features

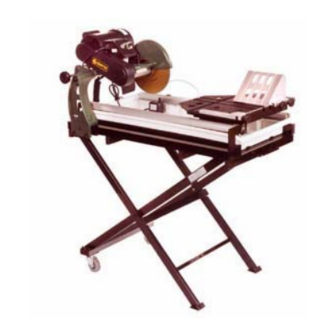

B2470 Tile Saw As part of the growing line of Craftex equipment, we are proud to offer the B2470 2.5 HP 10” Tile Saw. The Craftex name guarantees Craft Excellence. By following the instructions and procedures laid out in this owner’s manual, you will receive years of excellent service and satisfaction. -
Page 7: Assembly
B2470 Tile Saw Assembly 1. Slide the water tank through the slot in the machine frame so that the entire tank rests inside the machine frame. 2. Mount the motor to the machine frame by connecting the supporting frame to the machine frame at the point shown in the assembly diagram on page 14. -
Page 8: Water Supply
B2470 Tile Saw Installing the Water Supply To prevent excessive wear on the blade be sure to maintain a continuous flow of water over the blade while cutting. Never cut anything if the water flow is not continuous. 1. Attach the pump as described in step 4, “ Assembly”. Position the pump so it will not interfere with the motion of the table while cutting. -
Page 9: Cutting Tile
B2470 Tile Saw Cutting Tile 1. Place your marked tile on the table and brace it against the upturned edge (fence) on the back of the table. Align the cut mark with the blade. 2. Once the tile saw has been turned on allow the blade to spin up to full speed. -
Page 10: Angle Guide
B2470 Tile Saw Using the Angle Guide Use the angle guide for cutting angled edges on your tiles 1. Attach the angle guide to the fence as you did that parallel guide using the two locking knobs to hold the guide in place. -
Page 11: Diagram
B2470 Tile Cutting Machine Diagram Fig. 1... -
Page 12: Parts List
B2470 Tile Cutting Machine... -
Page 13: Parts List
B2470 Tile Cutting Machine... -
Page 14: Exploded View
B2470 Tile Cutting Machine... -
Page 15: Warranty
CRAFTEX 2 YEAR LIMITED WARRANTY Craftex warrants every product to be free from defects in materials and agrees to correct such defects where applicable. This warranty covers two years for parts and 90 days for labour (unless specified otherwise), to...
