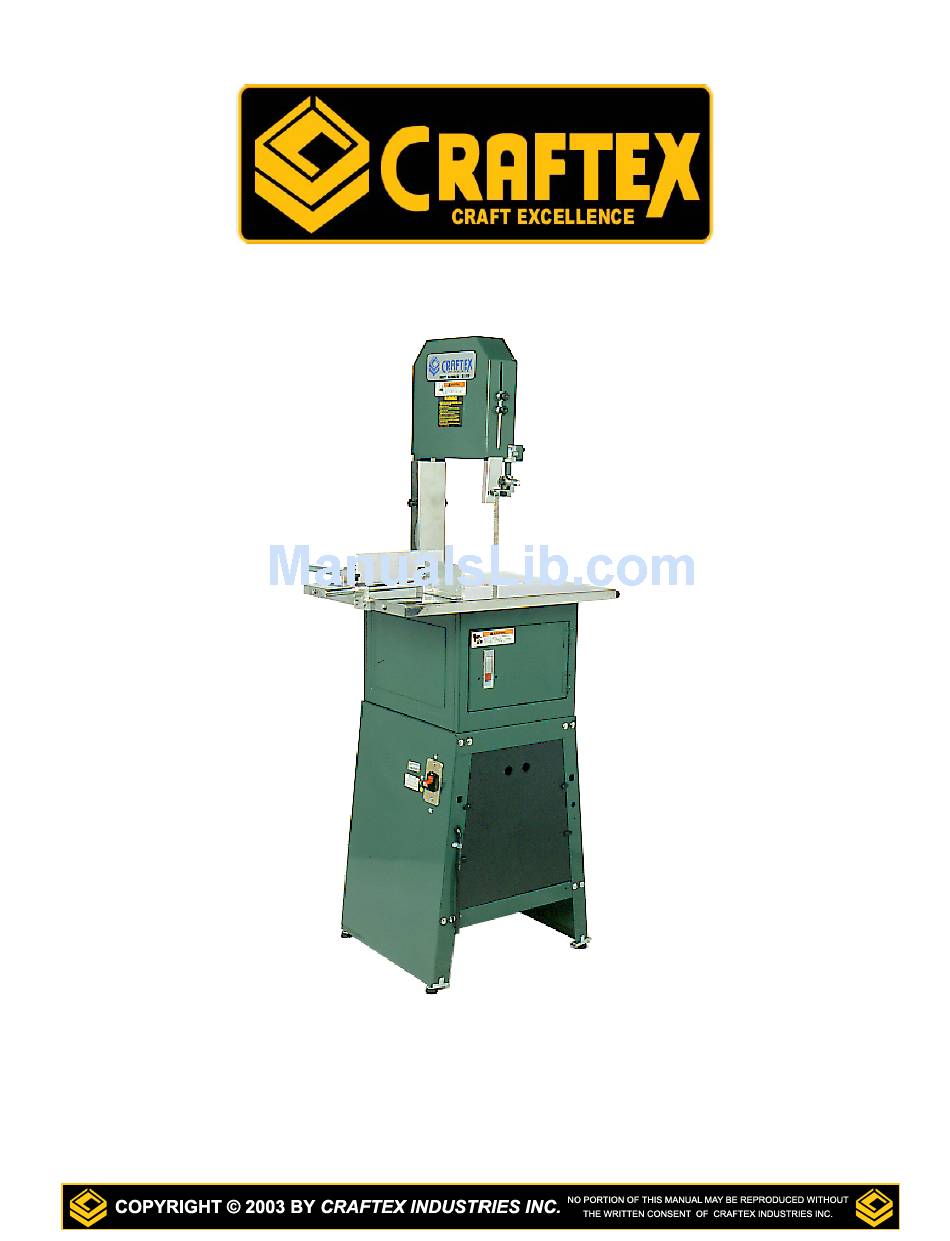

- Page 1 OWNER’S MANUAL B1012 – MEAT CUTTING BAND SAW & GRINDER...
-
Page 2: Table Of Contents
B1012 MEAT CUTTING BANDSAW Table Of Contents General Safety Instructions Page 3 B1012 Features Page 4 Carton Contents Page 5 Assembly Instructions Unpacking Page 6 Base Assembly Page 7 Sliding Table Assembly Page 8 Roller Assembly Page 8 ‘L’ Plate Assembly... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS EXTREME CAUTION SHOULD BE USED IN OPERATING ALL POWER TOOLS. KNOW YOUR POWER TOOL, BE FAMILIAR WITH ITS OPERATION. READ THE OWNER’S MANUAL AND PRACTICE SAFE USAGE PROCEDURES AT ALL TIMES. CONNECT your machine ONLY to the matched and specified power source. WEAR SAFETY GLASSES, RESPIRATORS, HEARING PROTECTION and SAFETY SHOES when operating this machine. -
Page 4: B1012 Features
The B1012 is a professional tool and like all power tools, proper care and safety procedures should be adhered to. FEATURES The Craftex B1012 is a high quality 10” Meat Cutting Band saw with a Meat Grinder and Sausage Filler. Motor – 1HP, Single Speed, 110/220 volt, Pre-wired for 110v. -
Page 5: Carton Contents
CARTON CONTENTS Carefully remove all components from the shipping case and set to one side. The following components in the carton should be as those pictured below. -
Page 6: Assembly Instructions
Carefully unpack all components from the carton and where applicable, clean any protective lubricant from the appropriate parts with mineral spirits. Remove any protective film from the bright components. The following illustration is a guide to the various components on the B1012 Craftex Meat Cutting Band saw. -
Page 7: Base Assembly
Metal Stand Assemble the metal stand as shown in the following schematic (See page 16 for an exploded view) Assembling the Band Saw to the Base There are three (A) elliptical holes in the top of the base and these should line up with the base of the band saw. -
Page 8: Sliding Table Assembly
Sliding Table Assembly Assemble the sliding table as indicated in the following schematic diagram. (See page 18 for an exploded view) Assembly of the Rollers Mount the four rollers on the band saw frame as shown. Do not tighten, as further adjustments may be required. -
Page 9: L' Plate Assembly
Assembly of the “L” Plate As shown, fix the “L” plate onto the table edge, then screw and tighten the other end of the rails on the table. Adjust the table to be sure that the bandsaw blade is in the middle of the opening. -
Page 10: Operating Instructions
Operating Instructions Health and Safety It is important to keep the Craftex B1012 Meat Cutting Band saw, Meat Grinder and Sausage Stuffer clean and sanitary at all times during the operation of the machine. Failure to do so could cause contamination of the meat being cut causing severe or even fatal illness. -
Page 11: Adjusting Blade
Adjusting the Band saw Blade The band saw blade must run vertically true to prevent it from running off the wheels. Remove the upper wheel cover by removing the two thumbscrews on either side of the cover. There are four Allen screws located around the axle of the upper blade wheel. -
Page 12: Guide Blocks
Adjusting Guide Blocks The upper and lower guide blocks must be properly positioned to accurately guide the band saw blade. These blocks should be close (but not tight) on the saw blade and positioned slightly behind the gullet of the blade. Adjusting Wheel Bearing Guides The wheel bearing guides are designed to prevent the band saw blade from being... -
Page 13: Fence And Pusher
Installing the Meat Grinder and Sausage Stuffer The meat grinder and sausage stuffer should not be in position when using the B1012 Meat Cutting Band saw to cut meat as it may interfere with the operation of the sliding table. -
Page 14: Band Saw Schematic Diagram
B1012 MEAT CUTTING BAND SAW Schematic Diagram... -
Page 15: Band Saw Parts List
B1012 MEAT CUTTING BAND SAW Parts List CODE PART # DESCRIPTION QTY. CODE PART # DESCRIPTION 0001 01001 Parent 0043 010043 Upper Blade 0002 990234 Hex Head screw 0044 010044 Blade 0003 991743 F.Washer 0046 990233 Hex Head Screw 0004... -
Page 16: Base Schematic Diagram
B1012 MEAT CUTTING BAND SAW Base Schematic Drawing... -
Page 17: Base Parts List
B1012 MEAT CUTTING BAND SAW Base Parts List Code Part No. Description Quantity 0101 011201 Face Plate 0102 113102 Rear Plate 0103 113103 Front Plate 0104 600104 Lower Bracket 0105 600107 Motor Plate 0106 600109 ‘S’ Upper Bracket 0107 Motor... -
Page 18: Sliding Table Schematic Drawing
B1012 MEAT CUTTING BAND SAW Sliding Table Schematic... -
Page 19: Sliding Table Parts List
B1012 MEAT CUTTING BANDSAW Sliding Table Parts List Code Part Number Description Quantity 0601 013001 Table, Sliding 0602 013002 Rollers 0603 013003 Stand Rod 0604 013004 Guard Cover 0605 013005 Roller Shaft 0606 013006 Fixed Plate 0607 013007 Guard Plate... -
Page 20: Miscellaneous Parts List
B1012 MEAT CUTTING BANDSAW Miscellaneous Parts List Code Part Number Description Quantity HARDWARE PKG. 0201 990233 Hex Head Screw 0202 991526 Screw 0203 991743 F. Washer 0204 991212 0205 010220 Screw 0206 998529 ‘L’ Fixed Plate 0207 996632 0208 990232... -
Page 21: Warranty
CRAFTEX 2 YEAR LIMITED WARRANTY Craftex warrants every product to be free from defects in materials and agrees to correct such defects where applicable. This warranty covers two years for parts and 90 days for labour (unless specified otherwise), to the original purchaser from the date of purchase but does not apply to malfunctions arising directly or indirectly from misuse, abuse, improper installation or assembly, negligence, accidents, repairs or alterations or lack of maintenance. -
Page 22: Busy Bee Locations
BUSY BEE TOOLS - - - SHOWROOMS -Coast to Coast Head Office 355 Norfinch Drive, North York, Ontario, M3N 1Y7 Tel. - 416-665-8008, Fax – 416-665-8337 Vancouver 30 Braid Street, New Westminister, British Columbia, V3L 3P3 Tel. – 604-517-3922, Fax – 604-517-8272 Mississauga 6325 Dixie Rd.
Need help?
Do you have a question about the B1012 and is the answer not in the manual?
Questions and answers
How to change the blade
To change the blade on a Craftex B1012 band saw:
1. Remove the upper wheel cover.
2. Release blade tension by loosening the hex bolt on the upper part of the saw frame.
3. Carefully remove the old blade from the wheels and guide blocks.
4. Place the new blade onto the center of both the upper and lower wheels.
5. Re-tension the blade by tightening the hex bolt until the blade stays centered and cuts straight.
6. Adjust the upper and lower guide blocks so they are close but not tight to the blade, just behind the blade's gullet.
7. Adjust the wheel bearing guides to lightly touch the back of the blade.
Ensure all covers are replaced and secured before operating.
This answer is automatically generated
