- Page 1 RF-10-EDP Deluxe 1-Button OEM Upgrade & Range Extender October 25, 2012 Operation Guide...
-
Page 2: Table Of Contents
Table Of Contents Transmitter Overview ................3 Transmitter Functions ................4 Other Remote Start Features ..............5 Low Battery/Low Temp Automatic Starting ........5 Pit-Stop Feature ................5 Security System Features ..............6 Last Door Locking/Arming ..............6 Automatic Re-locking ................6 Using The Valet Switch ................6 Emergency Override .................6 The Status Light ..................7 The Status Light (cont’d) ...............8 Programming Transmitters ..............8... -
Page 3: Transmitter Overview

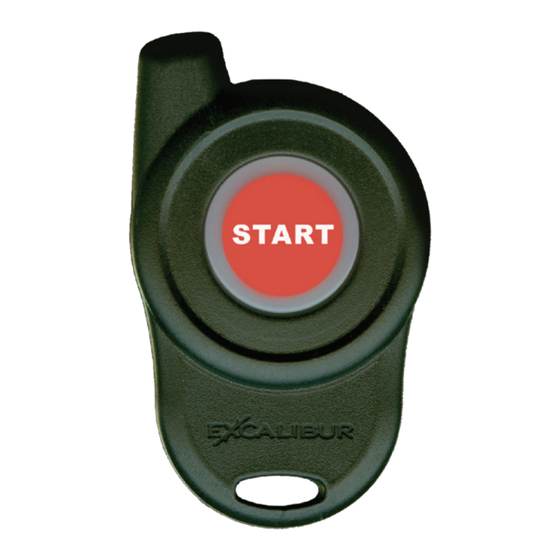

Transmitter Overview Transmitter part number: 113-03 Call your dealer or visit www.caralarm.com to order replacement transmit- ters. “start”/”unlock” Transmitter battery button replacement: Remove the small screw from the lower back case, and separate the transmitter halves. Replace the 2 CR2016 batteries and reassemble the trans- mitter case. -
Page 4: Transmitter Functions
Transmitter Functions REMOTE START: Press and release the “START” button twice within 5 sec- onds. (see programmable feature #5 for additional options) • THE VEHicLE’S EnginE wiLL START AnD THE STATUS LigHTS wiLL FLASH SLOw gREEn. • Each time you park, set the climate controls to give you the desired interior temperature when you use the remote start. -
Page 5: Other Remote Start Features
Other Remote Start Features LOw BATTERy/LOw TEMP AUTOMATiC STARTiNG This feature will automatically start the engine if the vehicle battery drops below 11 volts or the interior temperature drop to 15 (or 32) degrees fahrenheit. You must activate these features each time you park your car to use them. -
Page 6: Security System Features
Security System Features LAST DOOR LOCKiNG/ARMiNG This system can be configured to arm automatically when all the vehicle’s doors are closed (see programmable feature #2). when all of the doors are closed after driving the vehicle, it will start a 30 second countdown (indicated by a fast flashing status light). After 30 seconds, the system will lock/arm. During the 30 second arming delay, if a point of entry is opened, the countdown will pause until all entry points are closed again. -
Page 7: The Status Light
The Status Light The status lights, located in the window-mount antenna, provide a visual indication of the system’s status via gREEn (remote start status) and RED (alarm status) lights. SECURiTy SySTEM STATUS (RED LiGHT): OFF: The system is unlocked and not performing any automatic functions. FLASHiNG SLOw: The system is locked and monitoring all entry points. -
Page 8: The Status Light (Cont'd)
The Status Light (cont’d) COMBiNATiON iNDiCATiONS: FAST ALTERNATES GREEN/RED: System locked w/ remote start activated. Programming Transmitters Standard Programming: Before you begin, have all transmitters which are to operate the system. Step 1 Then, turn the ignition “on”. Step 2 Within 5 seconds of Step 1, press the Valet Switch 5 times. The antenna will beep, confirming that the system is ready to learn a transmitter code. -
Page 9: Programmable Features
Programmable Features Feature #1 - ignition Controlled Lock/Unlock Lock And Unlock w/ ignition (press brake x1 button to program) Lock w/ ignition On (press brake x2 button to program) Unlock w/ ignition Off (press brake x3 button to program) (press brake x4 button to program) - DEFAULT This feature controls the lock/unlock operations when the ignition key is turned on/off. - Page 10 User Programmable Features (cont’d) Feature #5 - Remote Start Activation Press “start” button 1 time (press brake x1 button to program) Press “start” button 2 times (press brake x2 button to program) - DEFAULT Press “start” button 3 times (press brake x3 button to program) Press “start”...
-
Page 11: Programmable Features Matrix
Programmable Features Matrix Feature Programming: Ignition on, off, press valet 5 times # Feature Press Brake x 1 Press Brake x 2 Press Brake x 3 Press Brake x 4 1 Ignition Lock/Unlock On (both) Lock only Unlock only 2 Last Door Locking 3 Automatic Re-locking 4 Unlock w/ Trunk Release On 5 Remote Start Activation... - Page 12 This device complies with Fcc Rules part 15. Operation is subject to the following two conditions, (1) This device may not cause harmful interference and, (2) This device must accept any interference that may be received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
