Summary of Contents for Excalibur AL-1860-EDPB
- Page 1 AL-1860-EDPB Deluxe 2-way Alarm & Remote Start w/ BLADE Technology July 8, 2013 Operation Guide Temporary cover. Color cover is in a separate file.
-
Page 2: Table Of Contents
Table Of Contents Controller & Transmitter Overview 3 The 2-Way Controller 3 The 1-Way Transmitter 3 Controller & Transmitter Functions 3 Other Remote Start Features 7 Low Battery/Low Temp Automatic Starting 7 Turbo Timer Feature 8 Pit-Stop Feature 8 Manual Transmission Starting 8 Security System Features 8... -
Page 3: Controller & Transmitter Overview

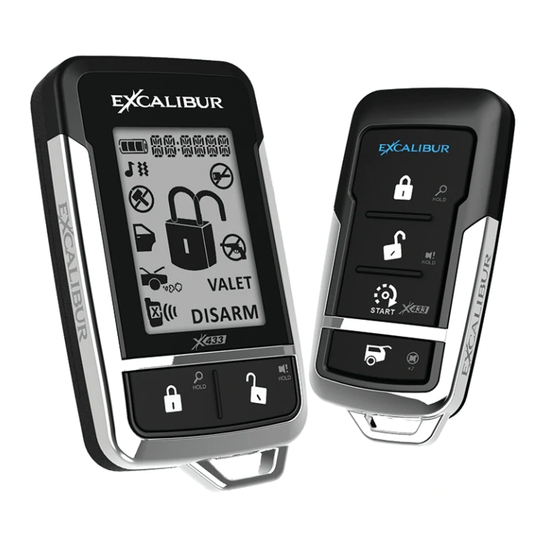

Controller & Transmitter Overview ThE 2-WAy COnTROLLER Controller part number: 159-03 (w/ 2 CR2032 batteries) “start” Call your dealer or visit www.caralarm.com to order replacement transmitters. button Controller battery replacement: Slide the back cover (do not pry up) off “trunk” button the back of the case in the direction of the arrow Release the small black battery... - Page 4 Controller & Transmitter Functions (cont’d) unLOCK / DiSARm: Press and release the “UNLOCK” button • THE SIREN WILL CHIRP TWICE & THE PARKING LIGHTS WILL FLASH TWICE, THEN ILLUMINATE FOR 30 SECONDS • UPON RECEIVING CONFIRMATION FROM YOUR SYSTEM, THE CONTROLLER WILL SHOW THE UNLOCK/ DISARM ICON AND BEEP TWICE TRunK RELEASE / ChAnnEL 2: Press the “TRUNK”...
- Page 5 Controller & Transmitter Functions (cont’d) The engine will run for the preset run time (see user feature #1) • Run Time Extender: Press the “START” button one time during remote start to restart the engine run timer The timer will restart at “0:00” nOTE: This can only be used once per remote start cycle.
- Page 6 Controller & Transmitter Functions (cont’d) PAniC: Press and hold the “LOCK” or “UNLOCK” button for 3 seconds • THE SIREN/HORN WILL SOUND, THE PARKING LIGHTS WILL FLASH, AND THE DOORS WILL LOCK OR UNLOCK DEPENDING WHICH BUTTON IS PRESSED SiLEnT ARm / DiSARm: Press and release the “TRUNK” button twice in 5 seconds • THE PARKING LIGHTS WILL FLASH, AND THE DOORS WILL LOCK/ARM OR UNLOCK/DISARM DE-...
-
Page 7: Other Remote Start Features
Controller & Transmitter Functions (cont’d) REmOTE VALET: Press “LOCK” then “UNLOCK” then “TRUNK” + “START” within 5 seconds • THE SYSTEM WILL ENTER VALET MODE SEE PAGE 10 FOR MORE INFO ON VALET MODES • UPON RECEIVING CONFIRMATION FROM YOUR SYS- TEM, THE CONTROLLER WILL SHOW THE VALET ICON TO EXiT VALET ViA REmOTE, REPEAT ThESE STEPS AuXiLiARy FunCTiOnS 1-4:... -
Page 8: Turbo Timer Feature
Other Remote Start Features (cont’d) TuRBO TimER FEATuRE It is typically recommended that vehicles equipped with turbocharged engines allow the engine to idle after driving to cool the turbocharger When Installer Programmable Feature #10 is ON, the system will automatically keep the engine running as follows: • With the engine running, hold the brake pedal and engage the parking brake When the brake pedal is released, the system will keep the engine running for the programmed time (1, 2, or 3 minutes), and then automatically turn it off... -
Page 9: Automatic Rearming
Security System Features (cont’d) AuTOmATiC REARminG This automatically rearms the alarm if the system is disarmed from the remote (see user feature #10) When disarmed by remote, the system will start a 90 second countdown (fast flashing status light) to arm the system. This is useful if the controller accidentally disarms the system when it’s kept in a purse or pocket where other items could potentially press the buttons ENHANCED AUTO REARM allows you to cancel the countdown by pressing UNLOCK a second time within 5 seconds of the first press to disarm the alarm... -
Page 10: Using The Valet Switch
using The Valet Switch EmERGEnCy OVERRiDE If you were to lose or break your controller, you’d need to perform an emergency override to disarm the system and use your vehicle To do so, use the following steps: STEP 1 - Enter the vehicle (the alarm should sound) STEP 2 - Turn the ignition key to the “ON”... -
Page 11: The Status Light 11
The Status Light The status lights, located in the window-mount antenna, provide a visual indication of the system’s status SECuRiTy SySTEm STATuS OFF: The alarm is disarmed and not performing any automatic functions On: The alarm is in valet mode FLAShinG SLOW: The alarm is armed and monitoring all entry points FLAShinG FAST: One of the automatic arming features is in progress AuTOmATiC TRAnSmiTTER VERiFiCATiOn... -
Page 12: Multi-Car Operation
multi-Car Operation The controller can operate up to 2 different systems When controlling 2 systems, it will receive all status updates on the currently selected vehicle profile and will receive only trigger alerts for the 2nd vehicle You can switch from one car to the other at anytime Use the following steps to change vehicles SELECTinG CAR #1 OR CAR #2 Vehicle #1: Press the “P”... -
Page 13: Changing Remote Start Melodies
Controller Options (cont’d) ChAnGinG REmOTE START mELODiES The controller has 5 different melodies to choose from for remote start ON and 5 melodies for remote start OFF confirmation. 1) Press the “P” button for 5 seconds to access the controller features The controller will beep twice 2) Press and release the “P“... -
Page 14: Anti-Carjacking Protection
Anti-Carjacking Protection The system is equipped with two separate Anti-Carjacking protection features (igni- tion, open door, or both) All are programmable, and must be turned on to operate Once activated, the user has 60 seconds to cancel the Anti-Carjacking protection process (described below) If Anti-Carjacking is not cancelled, 53 seconds after being activated the siren will begin to chirp for 7 seconds to alert the user that the system is about to enter into an alarm condition The Valet Switch may still be pressed once... -
Page 15: Programming Controllers/Transmitters
Programming Controllers/Transmitters Standard Programming: Using this method to program additional or replace- ment transmitters does not turn on or otherwise affect the Unauthorized Transmitter Alert (UTA) feature Before you begin, have all transmitters which are to operate the system at hand and make sure the correct vehicle profile (see page 12) is selected on the controller(s) Step 1 Then, turn the ignition “on” Step 2 Within 5 seconds of Step 1, press the Valet Switch 5 times The siren/horn will briefly sound, confirming that the system is ready to learn a transmitter code. -
Page 16: User Programmable Features
user Programmable Features Feature #1 - Remote Start Run Time 10 minutes (press “lock” button to program) - DEFAuLT 5 minutes (press “unlock” button to program) 15 minutes (press “trunk” button to program) 20 minutes (press “start” to program) This sets the maximum amount of time that the remote start will keep the engine running if it is not shut down by other methods Feature #2 - Flashing Light Confirmations unlock: On, RS: On... - Page 17 user Programmable Features (cont’d) Feature #7 - unlock w/ Trunk Release (press “lock” button to program) - DEFAuLT (press “unlock” button to program) “2nd channel” is most commonly used for trunk release, in which case the alarm should also disarm. This feature, when on, configures the system to unlock/disarm when the 2nd channel is activated Feature #8 - Remote Start Activation From The Remote Press “start”...
- Page 18 user Programmable Features (cont’d) Feature #13 - SecureCode DEFAuLT - 1 Press SecureCode is a unique patented feature which allows you to select the number of Valet Switch presses in two stages, instead of “1 press”, which would be required in order to perform an Emergency Override If any of the three anti-carjacking features are utilized, a customized SecureCode would also be required to turn it off once it is fully activated SecureCode operation is described on page 10...
-
Page 19: Installer Programmable Features
installer Programmable Features This group of Installer Programmable Features are all accessed as a group in the second level of features’ programming These features have a direct affect upon the system’s operations related to the installation and vehicle type AnD ShOuLD OnLy BE ChAnGED By ThE inSTALLER!!! Feature #1 - Remote Start Activation From The WhiTE/BLuE Wire 1 pulse (press “lock”... - Page 20 installer Programmable Features (cont’d) Feature #5 - Light Relay Function Dome Light Output (press “lock” button to program) - DEFAuLT Start (press “unlock” button to program) ignition Output (press “trunk” button to program) Accessory Output (press “start” button to program) Status (press “lock”...
- Page 21 installer Programmable Features (cont’d) Feature #10 - Turbo Timer (press “lock” button to program) - DEFAuLT Run 1 minute (press “unlock” button to program) Run 2 minutes (press “trunk” button to program) Run 3 minutes (press “start” button to program) This feature, the operation of which is described on page 8, when turned on configures the system to automatically keep the engine running briefly after the key is turned off. This operation is designed specifically for vehicles with turbocharged engines. nOTE: This...
- Page 22 installer Programmable Features (cont’d) Feature #17 Low Temp Crank Extender 0ms (Off) (press “lock” button to program) 200ms (press “unlock” button to program) - DEFAuLT 300ms (press “trunk” button to program) 400ms (press “start” button to program) When the vehicle’s interior temperature is below freezing, this feature adds extra crank time to the base timing (see installer feature #7) It applies to tachless modes only (installer feature #3) Feature #18 - Arm, Disarm or Additional Channels Arm / Disarm...
-
Page 23: Programmable Features Matrix
User Feature Programming: Ignition on, off, press valet 5 times Lock Button Unlock button Trunk button Start button Lock + Unlock # Feature (Brake x 1) (Brake x 2) (Brake x 3) (Brake x 4) (Brake x 5) 1 Remote Start Run Time 10 min 5 min 15 min... - Page 24 Back Cover Color cover is in a separate file.
