Excalibur 500 Owner's Manual

Excalibur 500 car alarm owner's guide
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Owner's Guide
Arming the System ....................... 3
Disarming the System ................. 4
Emergency Override .................... 4
Panic ............................................ 5
Sensor By-Pass ............................ 5
Auxiliary Channel ......................... 6
3rd Channel .................................. 6
Anti-Carjacking ............................. 7
Valet Mode ................................... 8
LED Status Indicator .................... 8

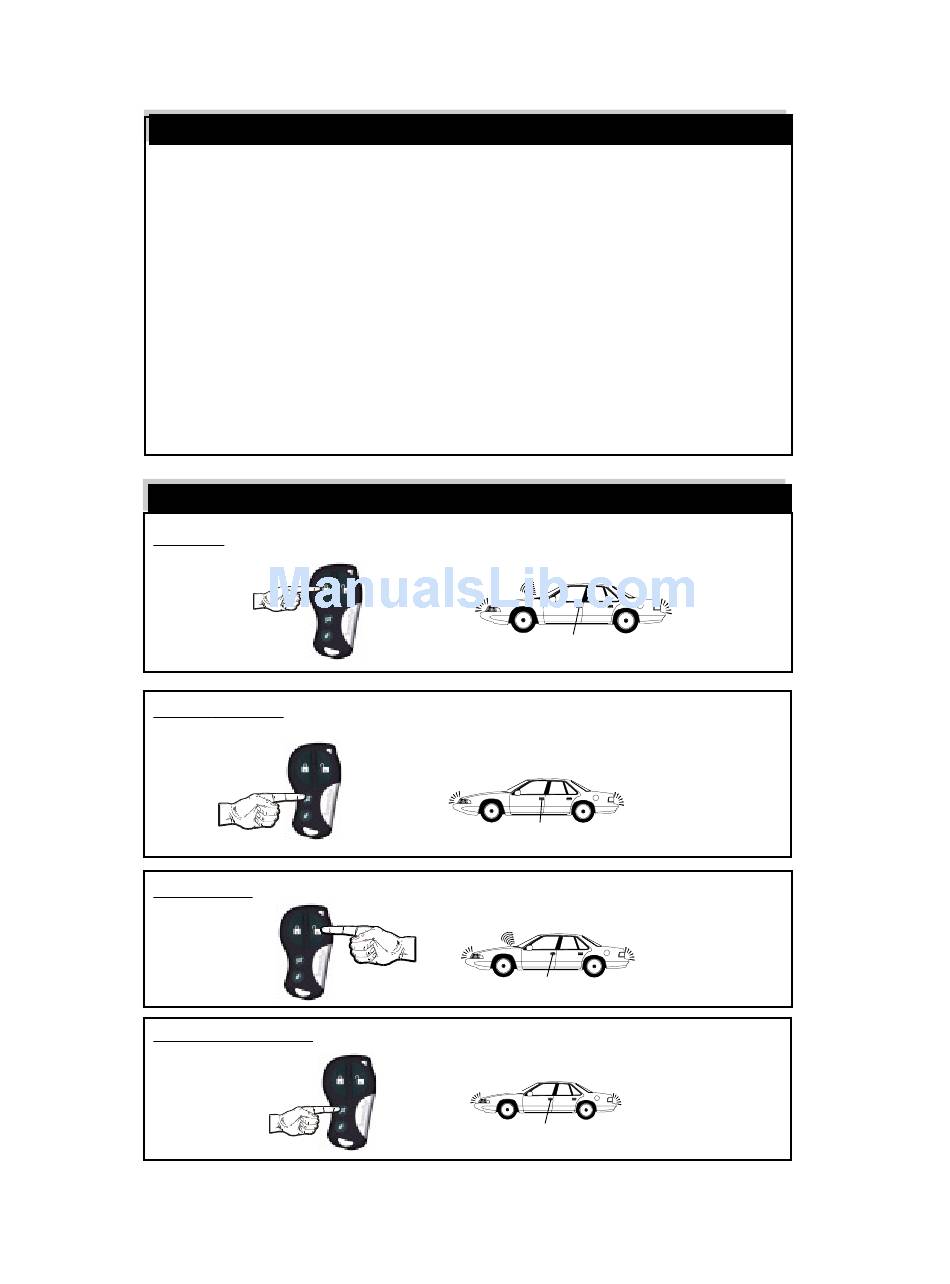

Remote Control Quick Reference Guide
Arming: Press & Release the "Lock" button
Silent Arming:
Press & Release the Small "3rd" button Twice in 3 sec.
2 X
Disarming: Press & Release the "Unlock" button
Silent Disarming:
Press & Release the Small "3rd" button Twice in 3 sec
2 X

Table Of Contents

Installation Instructions
How To Program Features ...................... 10
Programmable Features .................. 10 - 12
Wiring Diagram ....................................... 13
Door Lock/Unlocking Systems ................ 14
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions, (1)
This device may not cause harmful interference and, (2)
This device must accept any interference received,
including interference that may cause undesired operation.
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this
equipment. Such modifications could void the user's
authority to operate the equipment.
THE SIREN WILL
CHIRP ONCE
THE DOORS WILL LOCK
(IF CONNECTED)
THE DOORS WILL LOCK
(IF CONNECTED)
THE SIREN WILL
CHIRP TWICE
THE DOORS WILL UNLOCK
(IF CONNECTED)
THE DOORS WILL UNLOCK
(IF CONNECTED)
Page 1
THE PARKING LIGHTS
WILL FLASH ONCE
THE PARKING LIGHTS
WILL FLASH ONCE
THE PARKING LIGHTS
WILL FLASH TWICE
THE PARKING LIGHTS
WILL FLASH TWICE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Excalibur 500

Summary of Contents for Excalibur 500

  • Page 1: Table Of Contents

    Table Of Contents Owner’s Guide Installation Instructions Arming the System ....... 3 How To Program Remote Control ..... 9 Disarming the System ....4 How To Program Features ...... 10 Emergency Override ....4 Programmable Features ....10 - 12 System Armed &...

  • Page 2: Emergency Override

    Emergency Override: THEN WITHIN 10 SECONDS PRESS & RELEASE VALET BUTTON Panic: Press & Hold the “Lock” Button for 3 Sec’s, with the ignition “Off” THE SIREN WILL SOUND THE PARKING LIGHTS WILL FLASH Hold 3 seconds Shock Sensor & Prewarn Bypass: 1) Arm the alarm by, Pressing &...

  • Page 3: Arming The System

    Arming the Alarm The system may be "Armed" by any of 3 methods: Remote Control Arming: Press & Release the “Lock” button THE SIREN WILL CHIRP ONCE THE PARKING LIGHTS WILL FLASH ONCE THE DOORS WILL LOCK (IF CONNECTED) 2) SILENT Remote Control Arming: Press &...

  • Page 4: Disarming The System

    Disarming the Alarm The system may be "Disarmed" by any of 3 methods: Remote Control Disarming: Press & Release the “Unlock” button THE SIREN WILL CHIRP TWICE THE PARKING LIGHTS WILL FLASH TWICE THE DOORS WILL UNLOCK (IF CONNECTED) 2) SILENT Remote Control Disarming: Press &...

  • Page 5: System Armed & Activated

    System Armed & Activated Regardless of method used to Arm the alarm, once Armed, the alarm will monitor all protected zones, and if an intrusion attempt is detected it will activate, or “trigger”. A trigger consists of the following: • The electronic siren, or optionally the vehicle’s horn, will start sounding. •...

  • Page 6: Auxiliary Channel

    The Auxiliary Channel The Auxiliary Channel may be used to operate an optional function. Possibili- ties include remote trunk release, remote car starting, or an on-demand re- mote window roll-up interface. Please see your Omega dealer for details on available options. To Activate the Auxiliary Channel: Press &...

  • Page 7: Anti-Carjacking

    Programmable Anti-Carjacking Protection The Anti-Carjacking sequence may be activated by any of 3 methods: 1) Using the remote control, by holding down the Small “4th” Button for 3 seconds while the ignition is “On”. (programmable feature 2) When a door is Opened while the ignition is “On” (programmable feature 3) Every time the ignition is turned “On”.

  • Page 8: Valet Mode

    Valet Mode Valet Mode can only be entered into while the alarm is Disarmed. Valet Mode turns off all of the alarm’s security features, (including Anti-Carjack). Valet Mode is designed for situations in which it is not convenient for the security portion of the alarm to be operational;...

  • Page 9: Auxiliary Sensor & Prewarn

    Auxiliary Sensor & Prewarning Auxiliary Sensor: This security system is equipped with a plug-in port for an optional sensor to increase the effectiveness of the system. The comprehensive line of optional sensors offered is comprised of impact sensors, glass tampering sensors, and microwave/radar sensors which can detect motion inside and outside the vehicle.

  • Page 10: How To Program Features

    How to Program Features To access Features Programming Mode: Step 1: Turn the vehicle's ignition "On" then "Off". Step 2: Within 7 seconds of turning the ignition "Off", press the Valet Switch 5 times. The siren will wolf once confirming entry to Features Programming Mode. Step 3: Within 10 seconds of entering Features Programming Mode, press the Valet Switch the number of times equal to the number of the feature to be programmed.
  • Page 11 4. Double Pulse Unlock: ( 2 pulses = 1 siren chirp / • 1 pulse = 2 chirps) - Sets alarm to give 2 unlock pulses upon Disarm for cars that require it. 5. Immobilizer Mode: ( On = 1 siren chirp / •Off = 2 chirps) - If this mode is programmed “On”, the starter interrupt will remain engaged after the alarm is Disarmed, until the vehicle’s ignition is turned “On”...
  • Page 12 11. Dome-Light or Window Roll-Up: (•Dome-Light = 1 siren chirp / Window Roll-UP = 2 chirps) - Configures the alarm’s “Black/White” wire to operate the: a. Dome-Light: Supply a (-) output when the alarm is Disarmed to illuminate the vehicle’s Dome-Light for 30 seconds through the use of a relay, or b.

  • Page 13: Wiring Diagram

    Door Lock Pulse Time Jumper Valet/Override Button EXCALIBUR LED Status Indicator Optional Sensor 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5...

  • Page 14: Door Lock/Unlocking Systems

    Door Locking Systems / Sistemas De Cierre Negative Trigger System / Sistema Negativo: Doorlock Actuators Blue Green Unlock wire/ Cable de Apertura Lock wire / Cable de cierre Unlock Ground Lock Vehicle's Doorlock Relay Control Unit Doorlock Switch Positive Trigger System / Sistema Positivo: Doorlock Actuators Blue...
