Excalibur RF-50-EDP Installation Manual

Programmable Features

PROGRaMMInG FEatURES
Step 1 Turn the ignition key "ON", then "OFF"
Step 2 Within 5 seconds of step 1, press the valet switch 5 times to access features
~ The built in beeper will sound and the status light will turn on.
Step 3 Within 10 seconds of step 2, press the valet switch the number of times cor-
responding with the desired feature's number.
~ The built in beeper will chirp equal to the selected feature.
Step 4 for RF-50-EDP & RF-30-EDP Change the feature by pressing the transmitter
button that corresponds with the desired setting.
Step 4 for RF-10-EDP Turn the ignition key back "ON", some brake circuits require
ignition power to operate. Change the feature by pressing the brake pedal the number of
times that corresponds with the desired setting.
~ The built in beeper will chirp equal to the selected setting.
Step 5 If you wish to change more features, repeat steps 3 & 4 at this time.
Step 6 To exit programming, turn the ignition key "ON" then "OFF". Or, you can wait 10
seconds for programming mode to expire.
Feature Programming: Ignition on, off, press valet 5 times
Lock Button or
# Feature
Brake Pedal x 1
1 Ignition Lock/Unlock On
2 Last Door Locking On
3 Automatic Relocking On
4 Unlock w/ Trunk Release On
5 Remote Start Activation 1 press

Programming transmitters/Controllers

Step 1 Have all transmitters which are to operate the system at hand. Then, turn the
ignition "on".
Step 2 Within 5 seconds of turning on the ignition, press the Valet Switch 5 times. The
beeper in the antenna will briefly sound, confirming that for the next 10 seconds the
system is ready to learn a transmitter/controller code.
Step 3
2-way and 4-button controllers: Press the "lock" button on each transmitter one at
a time. When the first controller is learned, all previous controllers are erased from
memory. The transmitter's other three button's functions will automatically be assigned
when the "lock" button is learned.
1-button controllers: Press the "start" button on each transmitter one at a time. When
the first controller is learned, all previous controllers are erased from memory.
The antenna will beep once to confirm that each was learned.
NOTE: If a code is not received within a 10 second period, the learning process will
automatically terminate, as indicated by a long beep.

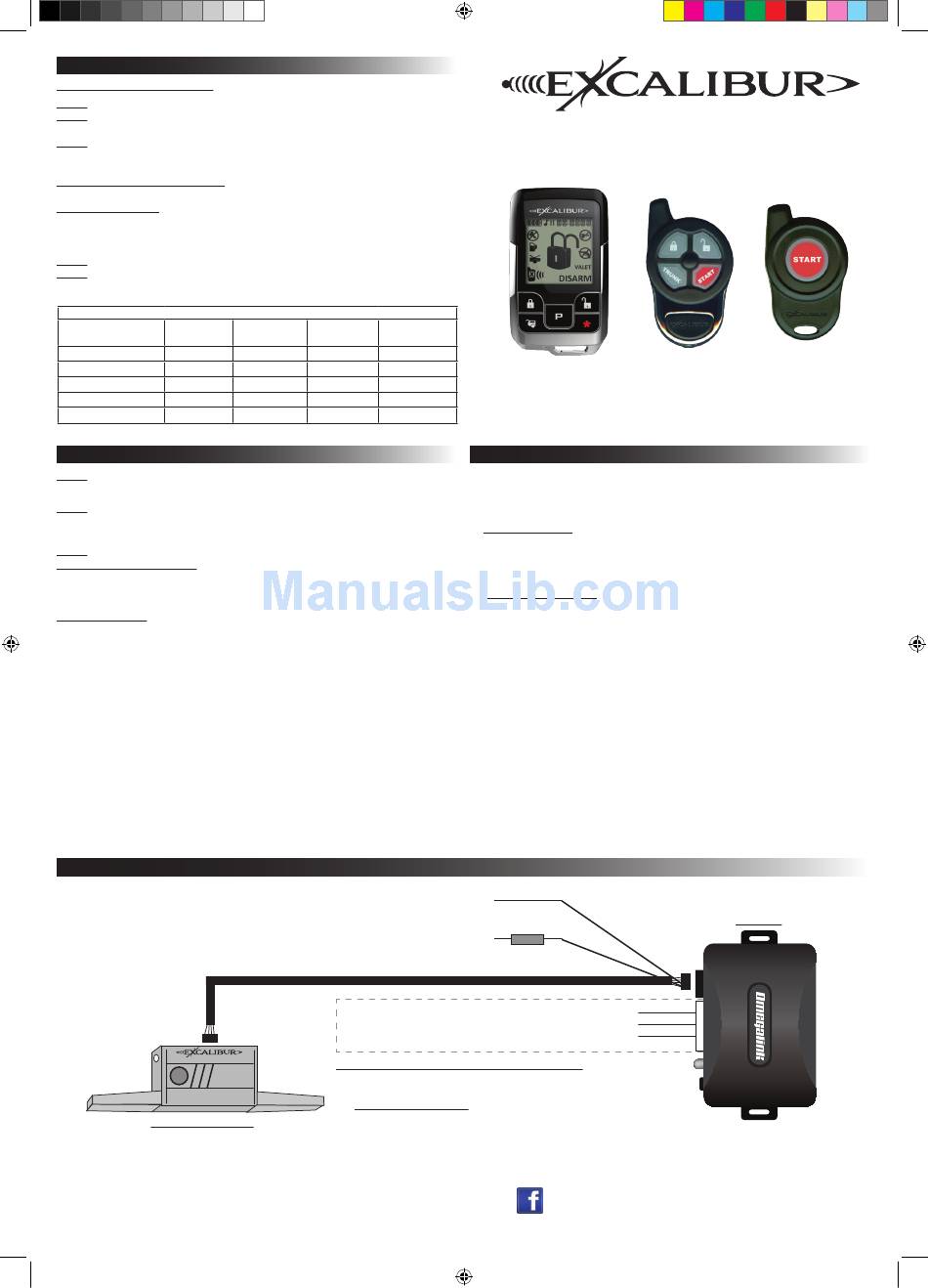

Wiring Overview

Status Lights
RF-X0-EDP
Valet Switch
Window module/antenna:
Mount to windshield for easy
access and visibility.
www.caralarm.com
Unlock button or Trunk button or "START" button or
Brake Pedal x 2 Brake Pedal x 3 Brake Pedal x 4
Lock only Unlock only Off
Off
Off Enhanced
Off
2 presses 3 presses 4 presses
Chassis Ground (-) Input - BLaCK
(Not required if using a T-harness)
Constant 12 v (+) Input - RED
(Not required if using a T-harness)
Omega Carlink
Input trigger Wires
adding Omega-Carlink Directly to RS Firmware Kit
Connect the Carlink AUX outputs to these inputs and program the outputs for
"1 second pulse" in the installation details during activation/configuration.
Visit www.omegaweblink.com/rs for more info and current vehicle applications.
| www.omegaweblink.com | www.wiresheet.com
RF-50-EDP / RF-30-EDP / RF-10-EDP
Range Extender / OEM Upgrade Kit

Installation Guide

Installation Overview

1) Install the Omegalink RS module per the instructions provided with the chosen
firmware and test for proper operation.
2) Connect to the Omegalink RS module:
If using a T-harness - Connect one end of the ribbon harness to the 4 pin black
connector on the T-harness. The T-harness will supply power and ground to the
antenna module. the RED power and BLaCK ground wires aren't used so make
sure they are cut/capped to prevent a short circuit.
If NOT using a T-harness - Connect one end of the ribbon harness to the 4 pin black
connector on the RS module. Connect the RED wire to a constant +12 volt source
and connect the BLaCK wire to a good chassis ground point free of paint, grease, or
dirt. This will provide power to the RF module and the Omegalink RS module.
3) Connect to the RF-X0-EDP antenna module:
Connect the other end of the 4 pin ribbon harness to the antenna module and test for
all primary functions.
4) Mount the antenna module:
Choose a mounting location high on the windshield for best operating range. Be sure
that the location will not obstruct the driver's view and is easily reached to access the
valet switch. Route the ribbon harness up the A-pillar to your chosen location
avoiding sharp or moving objects in the vehicle. Clean the mounting surface and
attach the antenna module with the provided double-stick tape.
5 AMP
{
Remote Start activation (-) Input - RED/WHItE
Lock (-) Input - BROWn
Unlock (-) Input - PURPLE/YELLOW
| www.facebook.com/omegard
Omegalink module
flashed with RS firmware
~ REQUIRED ~
| 800.554.4053
IS_RF-X0-EDP 10/19/2012
