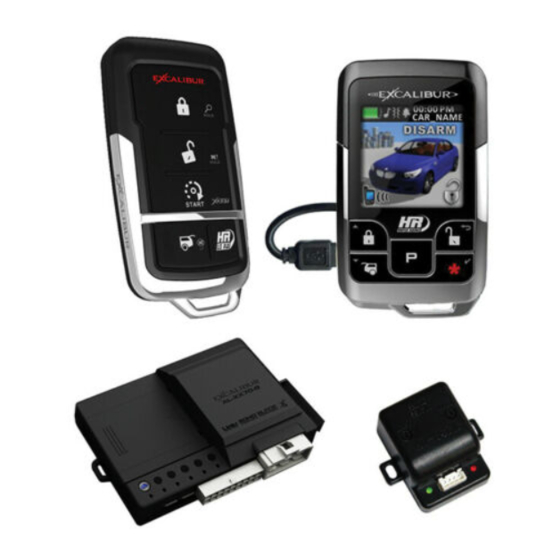

- Page 1 REMOTE START & SECURITY PERFECTED AL-2075-3DB-L OPERATION GUIDE Temporary cover. Final cover is in a separate file.
-
Page 2: Table Of Contents
Table Of Contents Introduction ������������������������������������������������������������������������������������������������������������������� 3 Controller & Transmitter Overview�������������������������������������������������������������������������������� 4 The 2-Way Controller ����������������������������������������������������������������������������������������������� 4 The Controller Status Screen ����������������������������������������������������������������������������������� 4 The 1-Way Transmitter ��������������������������������������������������������������������������������������������� 5 Controller & Transmitter Functions ������������������������������������������������������������������������������� 5 Other Remote Start Features ������������������������������������������������������������������������������������� 10 Low Voltage & High/Low Temp Automatic Starting������������������������������������������������� 10 Turbo Timer Feature �����������������������������������������������������������������������������������������������... -
Page 3: Introduction
Introduction Congratulations for choosing one of the most versatile, fully-featured vehicle secu- rity and convenience systems available today� Omega Research & Development has been a leader in vehicle security products for nearly 4 decades� Please take the time to read this manual thoroughly so you can fully enjoy the benefits and features this system offers�... -
Page 4: Controller & Transmitter Overview
Controller & Transmitter Overview THE 2-WAY CONTROLLER Controller part number: 1512-03 1) Antenna: Sends commands to the system and receives confirmations for 2-way functions. 2) OLED Display: Displays all controller functions as well as the status of your system� 3) Backlit Buttons: Flashes while transmitting and indicates battery charging status�... -
Page 5: The 1-Way Transmitter
Controller & Transmitter Overview (cont’d) NOTE: The 2-way Controller is shipped from the factory in POWER OFF mode. If you connect the charger before powering it, perform POWER OFF, then POWER ON again. POWER ON: Press and hold the “P” button for at least 1 second POWER OFF: Press the “P”... - Page 6 Controller & Transmitter Functions (cont’d) TRUNK RELEASE / CHANNEL 2: Press the TRUNK button for 3 seconds� • THE SYSTEM WILL DISARM AND THE TRUNK WILL OPEN (IF EQUIPPED)� • UPON RECEIVING CONFIRMATION FROM YOUR SYSTEM, THE CONTROLLER WILL PLAY THE TRUNK RELEASE ANIMATION AND BEEP TWICE (1-WAY TRANSMITTER: PRESS AND HOLD THE TRUNK BUTTON FOR 3 SECONDS)
- Page 7 Controller & Transmitter Functions (cont’d) CHANNEL 3: Press P then TRUNK within 5 seconds� • YOUR SYSTEM WILL ACTIVATE THE CHANNEL 3 OUTPUT� • UPON RECEIVING CONFIRMATION FROM YOUR SYSTEM, THE CONTROLLER WILL PLAY THE CHANNEL 3 ANIMATION� (1-WAY TRANSMITTER: PRESS AND HOLD THE TRUNK &...
- Page 8 Controller & Transmitter Functions (cont’d) PANIC: Press and hold the LOCK or UNLOCK button for 3 seconds� • THE SIREN/HORN WILL SOUND, THE PARKING LIGHTS WILL FLASH, AND THE DOORS WILL LOCK OR UNLOCK DEPENDING WHICH BUTTON IS PRESSED� (1-WAY TRANSMITTER: PRESS AND HOLD THE LOCK OR UNLOCK BUTTON FOR 3 SECONDS) SILENT ARM / DISARM: Press and release the TRUNK button twice in 5 seconds�...
- Page 9 Controller & Transmitter Functions (cont’d) LOW VOLTAGE & HIGH/LOW TEMP AUTO START: Press UNLOCK, LOCK, START within 5 seconds� • THE SYSTEM WILL GIVE ONE CHIRP TO INDICATE THE LOW VOLT/LOW TEMP(15 DEGREE ONLY) AUTO- START IS ACTIVATED� SEE PAGE 9 FOR MORE INFO� •...
-
Page 10: Other Remote Start Features
Other Remote Start Features LOW VOLTAGE & HIGH/LOW TEMP AUTOMATIC STARTING This feature will automatically start the engine if the vehicle battery drops below 11�5 volts or the interior temperature goes above or below the pre-programmed threshold� Programming The Low Temperature Auto Start Threshold: •... -
Page 11: Pit-Stop Feature
Other Remote Start Features (cont’d) PIT-STOP FEATURE This feature allows you to leave your engine running for quick errands� To use this feature, have the engine running normally from the ignition switch and your foot off the brake pedal. Press the Valet Switch twice; the parking lights will flash to confirm. Turn the key off and the engine will remain running for the programmed run time�... -
Page 12: Pre-Warn Detection
Security System Features (cont’d) PRE-WARN DETECTION This system’s impact sensor is designed, in addition to detecting a full impact, to warn away potential violators when it detects a light impact to the vehicle� The system will respond by chirping the siren/horn 3 times and locking the doors� This is very use- ful when an intruder attempts to unlock the door with “slim jim”... -
Page 13: The Status Light
The Status Light The status light, located in the antenna, indicates the system’s current status� SECURITY SYSTEM STATUS OFF: The alarm is disarmed and not performing any automatic functions� ON: The alarm is in valet mode� FLASHING SLOW: The alarm is armed and monitoring all entry points� FLASHING FAST: One of the automatic arming features is in progress�... -
Page 14: Multi-Car Operation & Vehicle Profiles
Multi-Car Operation & Vehicle Profiles MULTI-CAR OPERATION The controller can operate up to 2 different systems� When controlling 2 systems, it will receive all status updates on the currently selected vehicle profile and will receive only trigger alerts for the 2nd vehicle� You can switch from one car to the other at any- time as well as choose a unique image and name for each vehicle�... -
Page 15: Programming Controller Options
Programming Controller Options Each function button on the controller also serves for navigating through the option menus and making changes to the controller options� These secondary functions are indicated by small icons in the upper corners of each button. See below for an expla- nation of each button’s function�... -
Page 16: Setting The Clock
Programming Controller Options (cont’d) SETTING THE CLOCK 1) Press the “P” button to access the options menu� 2) Scroll down until “Set Clock” is highlighted 3) Press the 4 button to select� 4) Scroll to highlight either 12 (AM/PM) or 24 hour format� 5) Press the 4 button to select�... -
Page 17: Selecting Button Beep
Programming Controller Options (cont’d) SELECTING BUTTON BEEP With this option turned ON, the controller will beep to con- firm each button press. The default setting is OFF. To turn ON/OFF, use the following procedure: 1) Press the “P” button for 3 seconds to access options� 2) Scroll down until “Button Beep”... -
Page 18: Anti-Carjacking Protection
Anti-Carjacking Protection The system is equipped with two separate Anti-Carjacking protection features (igni- tion, open door, or both)� All are programmable, and must be turned on to operate� Once activated, the user has 60 seconds to cancel the Anti-Carjacking protection process (described below)�... -
Page 19: Programming Controllers/Transmitters
Programming Controllers/Transmitters Standard Programming: Use this method to program additional or replacement transmitters� Before you begin, have all transmitters at hand and make sure the cor- rect vehicle profile (see page 12) is selected on the controller(s). Step 1 Then, turn the ignition “on”� Step 2 Within 5 seconds of Step 1, press the Valet Switch 5 times�... -
Page 20: User Programmable Features
User Programmable Features Feature #1 - Remote Start Run Time 3 Minutes (press LOCK to program) 10 Minutes (press UNLOCK to program) 15 Minutes (press TRUNK to program) 20 Minutes (press START to program) 30 Minutes (press LOCK & UNLOCK to program) This sets the maximum amount of time that the remote start will keep the engine running if it is not shut down by other methods�... - Page 21 User Programmable Features (cont’d) Feature #6 - Open Door Bypass of Ignition Locking (press LOCK to program) (press UNLOCK to program) This feature cancels the automatic locking or unlocking of the vehicle’s doors if one of the doors is open when the ignition switch is turned on or off� Feature #7 - Unlock w/ Trunk Release (press LOCK to program) (press UNLOCK to program)
- Page 22 User Programmable Features (cont’d) Feature #13 - SecureCode DEFAULT - 1 Press SecureCode is a unique patented feature which allows you to select the number of Valet Switch presses in two stages, instead of “1 press”, which would be required in order to perform an Emergency Override�...
-
Page 23: Installer Programmable Features
Installer Programmable Features This group of Installer Programmable Features are all accessed as a group in the second level of features’ programming� These features have a direct affect upon the system’s operations related to the installation and vehicle type AND SHOULD ONLY BE CHANGED BY THE INSTALLER!!! Feature #1 - Remote Start Activation From The WHITE/BLUE Wire 1 pulse (press LOCK to program) - Page 24 Installer Programmable Features (cont’d) Feature #5 - Light Relay Function Dome Light Output (press LOCK to program) Start (press UNLOCK to program) Ignition Output (press TRUNK to program) Accessory Output (press START to program) Status (press LOCK & UNLOCK to program) Light Flash (press TRUNK &...
- Page 25 Installer Programmable Features (cont’d) Feature #10 - Turbo Timer (press LOCK to program) Run 1 Minute (press UNLOCK to program) Run 2 Minutes (press TRUNK to program) Run 3 Minutes (press START to program) This feature, the operation of which is described on page 8, when turned on configures the system to automatically keep the engine running briefly after the key is turned off.
- Page 26 Installer Programmable Features (cont’d) Feature #17 Low Temp Crank Extender (press LOCK to program) 200ms (press UNLOCK to program) 300ms (press TRUNK to program) 400ms (press START to program) When the vehicle’s interior temperature is below freezing, this feature adds extra crank time to the base timing (see installer feature #7)�...
- Page 27 User Feature Programming: Ignition on, off, press valet 5 times Lock + Trunk Lock Button Unlock button Trunk button Start button # Feature Unlock + Start (Brake 1x) (Brake 2x) (Brake 3x) (Brake 4x) (Brake 5x) (Brake 6x) 1 Remote Start Run Time 3 min 10 min 15 min...
- Page 28 Back Cover Color cover is in a separate file.
