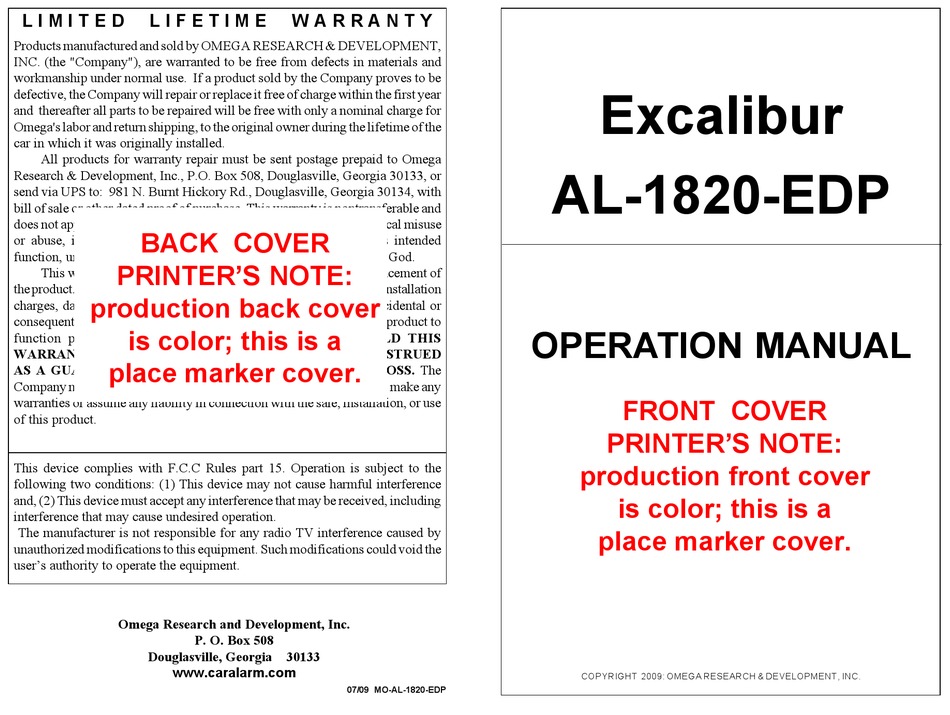

Excalibur
AL-1820-EDP
OPERATION MANUAL
FRONT COVER
PRINTER'S NOTE:
production front cover
is color; this is a
place marker cover.
COPYRIGHT 2009: OMEGA RESEARCH & DEVELOPMENT, INC.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Excalibur Excalibur Al-1820-EDP
Summary of Contents for Excalibur Excalibur Al-1820-EDP
- Page 1 If a product sold by the Company proves to be defective, the Company will repair or replace it free of charge within the first year Excalibur and thereafter all parts to be repaired will be free with only a nominal charge for Omega's labor and return shipping, to the original owner during the lifetime of the car in which it was originally installed.
-
Page 2: Table Of Contents
This Booklet Contains Introduction to the System ............. 4-6 Status Light, Valet Switch, Controller & Transmitter, Multi-car Selection Using the System ..............7 Arming Using the Controller or Transmitter ......7-8 Arming Bypass, Sensor Bypass Automatic “Last Door Arming” of the System ...... 8-9 This device complies with FCC Rules part 15. -
Page 3: Introduction To The System
Introduction to the System “P”rogram “III” button button “II” button Congratulations for your choice of the most versatile, fully-featured vehicle “disarm/unlock” security and convenience system available today, by Omega Research and Devel- button opment. To enjoy the most from your new system, please take a few moments to learn about the principal user components, and the basic operation of the system. -
Page 4: Using The System
• Pressing and releasing this button twice arms or disarms the system without the Using the System confirmation chirps. Your system is designed to deter theft of both your vehicle and its contents. • Pressing this button immediately after arming will leave the alarm armed, but “Arming”... -
Page 5: Automatic "Last Door Arming" Of The System
must be closed to initiate the Last Door Arming sequence. The system’s separate “arm/lock” and “disarm/unlock” button design allows To temporarily prevent the system from automatically Last Door Arming, you have repetitive operation- if already armed, pressing the “arm/lock” button will simply these options: put the system into Alarm Valet Mode (page 18), leave the door open, rearm the system, and vice versa when pressing the “disarm/unlock”... -
Page 6: Disarming The System Using The Controller Or Transmitter
are pressed. Which button being pressed has these effects upon the triggered system: briefly show the reporting vehicle (CAR 1 or CAR 2). • Pressing “arm/lock” will rearm the system, stopping both system’s alarm If the system was activated and reset itself: The disarming confirmation will condition (leaving it armed), and stop the controller’s chirping. -
Page 7: Remote Panic Feature
Step 2 Using the ignition key, turn the vehicle’s ignition switch on. Remote Engine Starting Step 3 Within 5 seconds press and release the Valet Switch one time. The system The remote engine starting feature should not be used when will disarm. - Page 8 When the engine stops running, whether by safety condition or controller com- following procedure must be performed before exiting the vehicle: mand, a different musical melody is played, and the “start” icon disappears. If a Step 1 With the engine running and foot on the brake, apply the parking brake, put safety circuit stops the engine, the “crossed out key”...
-
Page 9: Other Controller And Transmitter Operations
Low Voltage and Low Temperature Starting Feature: This feature will interior lights for 30 seconds, unlocking the doors, and disarming the system if it was automatically start the engine should the vehicle battery voltage drop to 11 volts or armed. The 2nd channel output will not operate when the ignition switch is "on" temperature drop to 15 or 32 degrees fahrenheit. -
Page 10: Securecode
Alarm Valet Mode: This allows you to turn off all of the “alarm” operations of soon as the two chirps are heard, press the brake pedal but do not release the Valet the security system while retaining the remote convenience features such as keyless Switch. -
Page 11: The Status Light
Should two failed SecureCode attempts be made, the system will ignore any further violations, the Status Light will show the two most recent violations in the order in presses of the Valet Switch for two minutes. which they occurred. In addition to Emergency Override, if any of the three anti-carjacking features 9) 2 Red Flashes / Pause = System was triggered by open hood or trunk. -
Page 12: 2-Way Controller
The 2-Way Controller hammer and impact icon appears, and the controller chips until any button is pressed, and the icon remains flashing until the ignition switch is turned on. The four system- operating buttons are described on pages 5 and 6. This section •... -
Page 13: Anti-Carjacking Protection
• Vehicle Type Choices are a passenger car, pickup truck, or van/SUV. This can • If the Echo is configured for “MUTE” operation (vibrates instead chirping), be selected separately for CAR1 and CAR2 profiles. then in programming it will not play the musical melodies. Instead, it vibrates •... -
Page 14: Controller And Transmitter Protection
Step 3 Within 5 seconds, perform an Emergency Override using the Valet How to Program Controllers or Transmitters Switch. If the SecureCode has been customized, the correct number of The system is capable of being operated by as many as four controllers or transmitters; Valet Switch presses must be made. -
Page 15: How To Program Features
Once the Unauthorized Transmitter Alert feature is turned on, the warning will sound To Access a Feature: for48hoursafteranycontrollerortransmitterprogramming,includingtheprogramming Step 4 Within 10 seconds, Press & Release the Valet Switch the same num- session which was used to turn it on. ber of times as the desired feature’s number. -
Page 16: User Programmable Features
Feature #1 SecureCode Each of the Programmable Features is described in detail in the Factory Default Setting 1 Press following pages. The User Programmable Features are described as Options: a first group, and the Installer Programmable Features as a second 1 to 9 presses, in each of two stages group. - Page 17 Feature #3 Automatic Rearming Feature #6 Doors Lock With Ignition On Factory Default Setting Factory Default Setting press “arm/lock” button to program press “arm/lock” button to program press “disarm/unlock” button to program Option: Options: This feature configures the system to automatically lock the vehicle’s doors every press “disarm/unlock”...
- Page 18 Feature #12 Parking Light Illumination Upon Disarm press “disarm/unlock” button to program press “arm/lock” button to program Factory Default Setting Chirps Excepting Valet Mode press “II” button to program Option: press “disarm/unlock” button to program Chirps in Valet Mode Only press “III”...
- Page 19 applications is being used to sound the vehicle’s existing horn. This feature changes press “arm/lock” button to program Option: only the primary audible output, so that it can be utilized to sound the existing When this feature is turned on, if one of the vehicle's doors is open at the time that horn by itself.
-
Page 20: Installer Programmable Features
The Installer Programmable Features • The first setting (programmed by the “arm/lock” button) has the system produce both the lock and unlock outputs as .8 second in duration. This is the Installer Programmable Features should only be used by the original most common form of output needed, which interfaces most vehicles. - Page 21 this is done will the system accept a remote start command, and the vehicle must Feature #3 Horn Relay Functions remain undisturbed until that point. The complete instructions for remote starting, Factory Default Setting Horn Output including Stick Shift Remote Starting, starts on page 40. press “arm/lock”...
-
Page 22: Complete Programmable Features Matrix
Feature #7 Extended Starter Cranking Time Complete Programmable Features Matrix Default Setting Min (.75 Second) ( press “arm/lock” button to program USER Features Ignition on, off, then press Valet Switch 5 times (RED Status Light). Options: Feature Default Setting Option 2nd Option 3rd Option press “disarm/unlock”...
