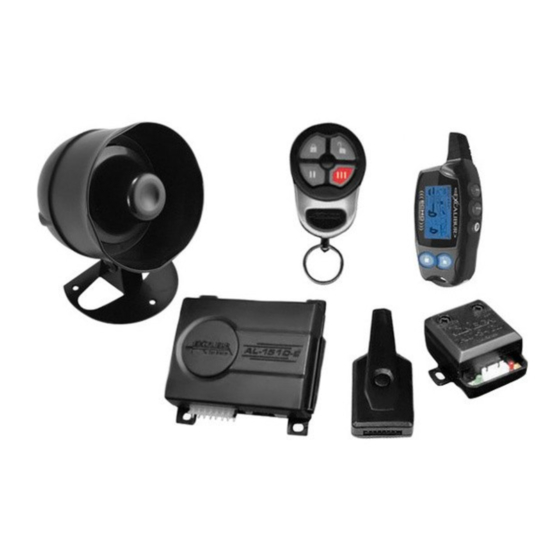

Excalibur AL-1510-EDP Operation Manual

Deluxe 2-way alarm & keyless entry
Hide thumbs Also See for AL-1510-EDP:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
al-1510-EdP
deluxe 2-way alarm & Keyless Entry
august 4, 2014
Operation guide
Temporary cover. Color cover is in a separate fi le.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL-1510-EDP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Excalibur AL-1510-EDP

Summary of Contents for Excalibur AL-1510-EDP

  • Page 1 2-way alarm & Keyless Entry august 4, 2014 Operation guide Temporary cover. Color cover is in a separate fi le.

  • Page 2: Table Of Contents

    Table Of Contents Controller & Transmitter Overview 3 The 2-Way Controller  3 The 1-Way Transmitter  3 Controller & Transmitter Functions  3 Using The Valet Switch  7 Emergency Override  7 Valet Mode  7 SecureCode  7 Security System Features  8 Last Door Arming  8 Automatic Rearming  8...

  • Page 3: Controller & Transmitter Overview

    Controller & Transmitter Overview ThE 2-Way COnTrOllEr Controller part number: 152-03 1) antenna: Sends commands to the system and receives confi rmations for 2-way functions. 2) lCd display: Displays all controller func- tions as well as the status of your system. 3) lock Button 4) Unlock Button 5) Trunk Button 6) 3rd Channel / Start Button 7) Programming Button: This is used for setting controller features.
  • Page 4 Controller & Transmitter Functions (cont’d) UnlOCK / diSarm: Press and release the “UNLOCK” button • THE SIREN WILL CHIRP TWICE & THE PARKING LIGHTS WILL FLASH TWICE THEN ILLUMINATE FOR 30 SECONDS • UPON RECEIVING CONFIRMATION FROM YOUR SYSTEM, THE CONTROLLER WILL SHOW THE UNLOCK/ DISARM ICON AND BEEP TWICE (1-WAY TRANSMITTER: PRESS THE UNLOCK BUTTON) TrUnK rElEaSE / ChannEl 2: Press the “...
  • Page 5 Controller & Transmitter Functions (cont’d) ChannEl 4 (iF EQUiPPEd): Press and hold the “LOCK” & “ ” buttons for 3 seconds. • YOUR SYSTEM WILL ACTIVATE THE CHANNEL 4 OUTPUT • THERE IS NO 2-WAY CONFIRMATION FOR THIS FUNCTION (1-WAY TRANSMITTER: PRESS AND HOLD THE LOCK & “||”...

  • Page 6: Auxiliary Functions

    Controller & Transmitter Functions (cont’d) SilEnT arm / diSarm: Press and release the “ ” button twice in 5 seconds • THE PARKING LIGHTS WILL FLASH, AND THE DOORS WILL LOCK/ARM OR UNLOCK/DISARM DE- PENDING ON THE CURRENT SYSTEM STATUS • UPON RECEIVING CONFIRMATION FROM YOUR SYSTEM, THE CONTROLLER WILL SHOW THE LOCK/ ARM OR UNLOCK/DISARM ICON...

  • Page 7: Using The Valet Switch

    Using The Valet Switch EmErgEnCy OVErridE If you were to lose or break your controller, you’d need to perform an emergency override to disarm the system and use your vehicle. To do so, use the following steps: STEP 1 - Enter the vehicle (the alarm should sound) STEP 2 - Turn the ignition key to the “ON” position STEP 3 - Press the valet switch (located in the window-mount antenna) once NOTE: Enter your SecureCode at this time if programmed via user feature #1 STEP 4 - Turn the ignition “OFF” ValET mOdE...

  • Page 8: Security System Features

    Security System Features laST dOOr arming This system can be configured to arm automatically when all the vehicle’s doors are closed (see user feature #2). When this feature is utilized, the siren/horn will chirp once when all of the doors are closed. At that point, it will start a 30 second count- down (indicated by a fast flashing status light). After 30 seconds, the system will arm (and lock the doors if configured to do so). During the 30 second arming delay, if a point of entry is opened, the countdown will pause until all entry points are closed again. Turning ON the ignition key will cancel the last door arming sequence until the key is turned off and the doors are all closed once again. aUTOmaTiC rEarming This automatically rearms the alarm if the system is disarmed from the remote. (see user feature #3 to enable). When disarmed by remote, the system will start a 90 second countdown (fast flashing status light) to arm the system. This is useful if the controller may accidentally disarms the system when it’s kept in a purse or pocket where other items could potentially press the buttons ENHANCED AUTO REARM allows you to cancel the countdown by pressing UNLOCK a second time within 5 seconds of the first press to disarm the alarm.

  • Page 9: The Status Light

    The Status light The status lights, located in the window-mount antenna, provide a visual indication of the system’s status via RED (alarm status) lights. SECUriTy SySTEm STaTUS (rEd lighT): OFF: The alarm is disarmed and not performing any automatic functions. On COnSTanT: The alarm is in valet mode FlaShing SlOW: The alarm is armed and monitoring all entry points FlaShing FaST: One of the automatic arming features is in progress.

  • Page 10: Multi-Car Operation

    multi-Car Operation The controller can operate up to 2 different systems. When controlling 2 systems, it will receive all status updates on the currently selected vehicle profile and will receive only trigger alerts for the 2nd vehicle. You can switch from one car to the other at anytime as well as choose a unique image for each vehicle. Use the following steps to change vehicles. See below for info on changing the vehicle image. SElECTing Car #1 Or Car #2 Vehicle #1: Press the “P” and “LOCK” buttons for 1 second to select Car #1. The controller will beep/vibrate once Vehicle #2: Press the “P” and “UNLOCK” buttons for 1 second to select Car #2. The controller will beep/vibrate twice Controller Options lCd SCrEEn iCOnS in range door lock Sensor (received 2-way Status Trigger Valet mode command)

  • Page 11: Setting The Clock 11

    Controller Options (cont’d) SETTing ThE ClOCK 1) Press the “P” button for 5 seconds to access the controller features. The controller will beep twice 2) Press and release the “P“ button once to select the clock (hour digits will flash). 3) Press the “ “ button to scroll up or the “ “ button to scroll down 4) Press the “P” button to switch to the minute digits 5) Press the “...

  • Page 12: Anti-Carjacking Protection

    anti-Carjacking Protection The system hass three separate Anti-Carjacking protection features (ignition, open door, or by the transmitter) All three are programmable, and must be turned on to operate Once activated, the user has 53 seconds to cancel the Anti-Carjacking pro- tection process by pressing the Valet Switch once. If Anti-Carjacking is not cancelled, 53 seconds after being activated the siren will begin to chirp for 7 seconds to alert the user that the system is about to enter into an alarm condition The Valet Switch may still be pressed once during this period to cancel the Anti-Carjacking process If the Anti-Carjacking process is not cancelled before the 60 seconds, the system...

  • Page 13: Programming Controllers/Transmitters

    Programming Controllers/Transmitters Standard Programming: Using this method to program additional or replace- ment transmitters does not turn on or otherwise affect the Unauthorized Transmitter Alert (UTA) feature. Before you begin, have all transmitters which are to operate the system at hand and make sure the correct vehicle profile (see page 12) is selected on the controller(s) Step 1 Then, turn the ignition “on” Step 2 Within 5 seconds of Step 1, press the Valet Switch 5 times. The siren/horn will briefly sound, confirming that the system is ready to learn a transmitter code. Step 3 Press the “lock” button on each transmitter one at a time The system will chirp the siren/horn once to confirm that each was learned. If a code is not received within 10 seconds of Step 2, the learning process will automatically exit.

  • Page 14: User Programmable Features

    User Programmable Features Feature #1 - SecureCode dEFaUlT - 1 Press SecureCode is a unique patented feature which allows you to custom select the num- ber of Valet Switch presses in two stages, instead of a single “1 press”, which would be required in order to perform an Emergency Override. If any of the three anti-car- jacking features are utilized, a customized SecureCode would also be required to turn it off once it is fully activated. The SecureCode operation is described on page 10. To custom program a new SecureCode: Step 1 Follow Steps 1 to 4 in the previous “Programming Features” section to access “feature #1”. Step 2 Within 10 seconds slowly press and release the controller or transmitter’s “arm/lock” button the number of times equal to the desired SecureCode for stage 1, allow the system to respond to each controller/transmitter button press with a siren chirp before pressing the button again. A few seconds after the final button press, the...
  • Page 15 User Programmable Features (cont’d) Feature #5 - ignition activated Override (press “disarm/unlock” button to program) - dEFaUlT (press “arm/lock” button to program) This feature allows an activated system to be overridden and disarmed by simply turning the ignition switch on within 10 seconds of the system’s activation. After 10 seconds, the Emergency Override must be performed. Feature #6 - doors lock With ignition On (press “arm/lock” button to program) - dEFaUlT (press “disarm/unlock”...
  • Page 16 User Programmable Features (cont’d) Feature #11 - alarm duration 30 Seconds (press “arm/lock” button to program) - dEFaUlT 60 Seconds (press “disarm/unlock” button to program) 90 Seconds (press “trunk” button to program) 120 Seconds (press “start” button to program) This feature allows four choices of the Alarm Duration, which is the period of time for which the system sounding the siren (and/or horn, optionally) and flashes the parking lights when it is triggered Caution: Before lengthening the alarm duration you should always check and determine if there are any local anti-noise or nuisance...
  • Page 17 User Programmable Features (cont’d) Feature #17 - ignition activated anti-Carjacking Protection (press “disarm/unlock” button to program) - dEFaUlT (press “arm/lock” button to program) This form of Anti-Carjacking is initiated by the ignition key being turned on. The Anti- Carjacking protection, and the three ways to initiate it are described on page 14 Feature #18 - door activated anti-Carjacking Protection (press “disarm/unlock”...

  • Page 18: Installer Programmable Features

    installer Programmable Features This group of Installer Programmable Features have a direct affect upon the system’s opera- tions related to the installation and vehicle type and ShOUld Only BE ChangEd By ThE inSTallEr!!! Feature #22 - doorlocking Functions 0.8 Second Outputs (press “arm/lock” button to program) - dEFaUlT 3 Second Outputs (press “disarm/unlock” button to program) double Pulse Unlock Output (press “trunk”...

  • Page 19: Programmable Features Matrix

    Programmable Features matrix User Feature Programming: Ignition on, off, press valet 5 times, press valet # of times equal to the feature # # Feature Lock Button Unlock button Trunk button ”START” button 1 Secure Code 1, 0 (default) 2 Last Door Arming On w/o lock On w/ Lock 3 Automatic Rearming...
  • Page 20 Back Cover Color cover is in a separate file.
