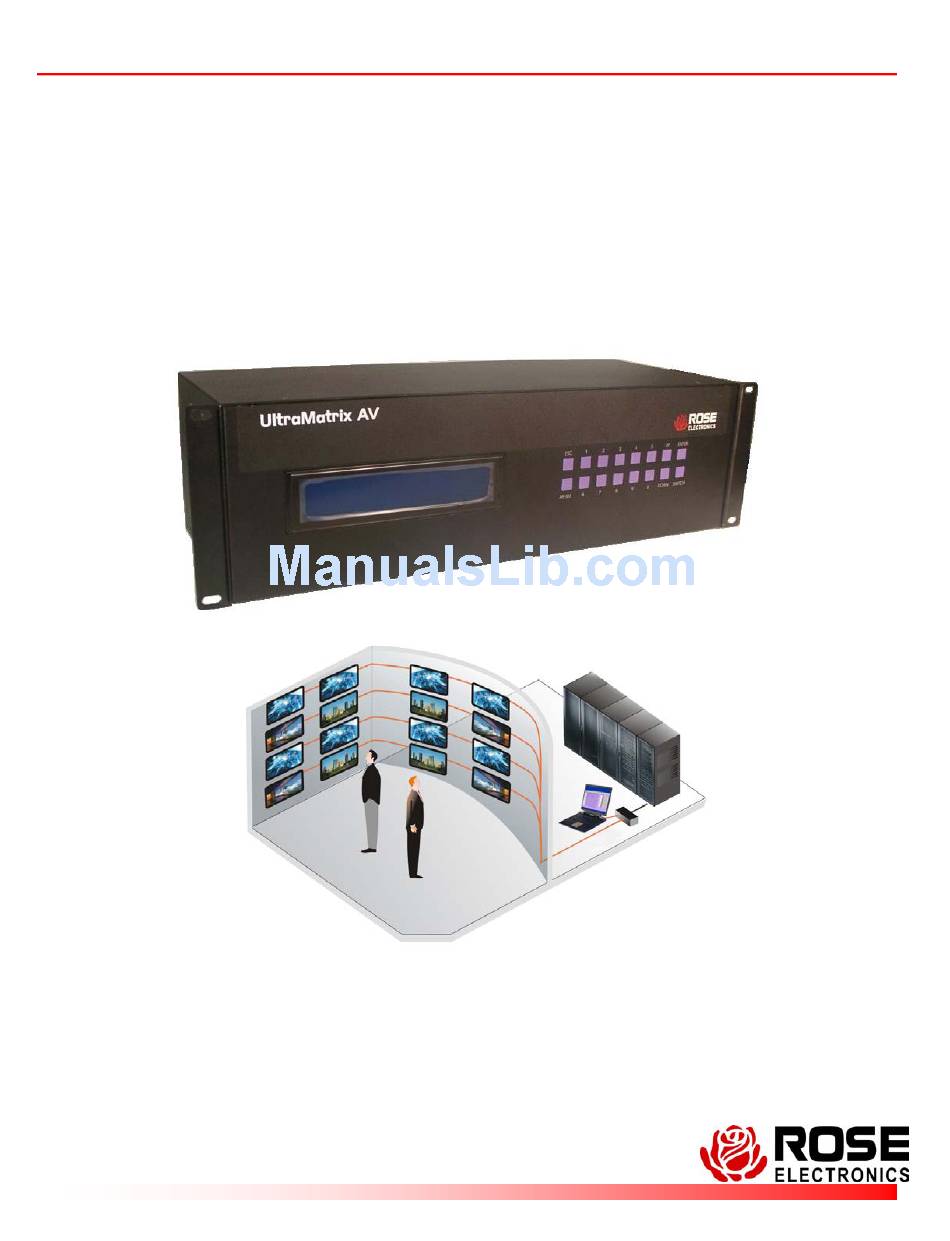

- Page 1 UltraMatrix AV HD 16x16 HDMI VIDEO MATRIX SWITCH INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone (281) 933-7673 Houston, Texas 77099 www.rose.com...
- Page 3 LIMITED WARRANTY Rose Electronics warrants the UltraMatrix AV HD to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 4 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY Product UltraMatrix AV HD This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication.
-
Page 5: Table Of Contents
Figure 1.System Application Overview ........................... 4 Figure 2. Connection Diagram ..............................5 Figure 3. Front Panel Buttons ..............................6 Figure 4. UltraMatrix AV HD Default Display .......................... 6 Figure 5. Main Menu ................................7 Figure 6. EDID Input Display ..............................7 Figure 7. -
Page 6: Introduction
IR remote, or optional TCP/IP controller. The UltraMatrix AV HD supports HDTV resolutions of 480p, 720p, 1080i, and 1080p at distances up to 40 feet. Repetitive switching sequences can be recorded and saved in 1 of 50 macros for playback at any time. -
Page 7: Specifications
1304584334582_6.doc @ 51255 @ 2 @ 1 Your extender package contains the following items: UltraMatrix AV HD unit Serial Cable 1 country specific power cord Installation CD with RoseControl Software and this manual ULTRAMATRIX AV HD INSTALLATION AND OPERATIONS MANUAL... -
Page 8: System Application
Industrial (Long-Range Workstation Isolation) Airport Installations (Air Traffic Control/Passenger Information) Medical (Remote viewing away from Sensitive/Magnetic Equipment) Recording (for Large Studios where Editing/Mixing Stations are Compact and/or Require Compete Silence) ULTRAMATRIX AV HD INSTALLATION AND OPERATIONS MANUAL... -
Page 9: Installation
Connect the male to male HDMI extension cables to the input devices and to the “IN” ports on the UltraMatrix AV HD. Connect the displays to the “OUT” ports on the UltraMatrix AV HD. Connect the power cord and power-on the UltraMatrix AV HD. -
Page 10: Operation
IMPORTANT: Because HDCP takes time to negotiate, wait 2 seconds when switching ports for the process to complete. Failure to do so may cause an HDCP error and the UltraMatrix AV HD may lock ULTRAMATRIX AV HD INSTALLATION AND OPERATIONS MANUAL... -
Page 11: Figure 5. Main Menu
RS-232 Acknowledge - Sets the UltraMatrix AV HD to send a confirmation that an RS-232 command has been received. Send Update - Sets the UltraMatrix AV HD to send an RS-232 command back to the controller when the configuration is changed via the front panel or remote control (optional). -
Page 12: Using The Rosecontrol Software
Using the RoseControl Software Find the Installation CD that came with your UltraMatrix AV HD unit. This CD has the RoseControl software that you will need in order to control the unit using a computer. Insert the CD into your CD-ROM. On the CD you should see: ... -
Page 13: Figure 8. Main Routing Window
Router Type: Select “Matrix DVI 16x16” Inputs/Outputs: Enter the number of Inputs/Outputs for your UltraMatrix AV HD (16x16). Com Port: Select the appropriate COM port that your computer is using to access the router. Router Time out: By default this is 0.2, meaning the computer acknowledges commands almost instantly. -
Page 14: Figure 9. Routing Window, Modified Connections
Note: Inputs can be routed to several different outputs, but each output can only have a single input at any one time. So you can have several connections horizontally but not vertically. Figure 9. Routing Window, Modified Connections ULTRAMATRIX AV HD INSTALLATION AND OPERATIONS MANUAL... - Page 15 6. The macros are automatically saved in the current configuration file. They are also saved when you select the File/Save Configuration... menu. To save macros in a separate file for a special purpose, select the File/Save Macros...menu. ULTRAMATRIX AV HD INSTALLATION AND OPERATIONS MANUAL...
-
Page 16: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. See Limited Warranty for more information. -
Page 17: Product Safety
SAFTEY Product Safety The UltraMatrix AV HD has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the UltraMatrix AV HD should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 18: Appendices
The default User ID is Admin and the default Password is Pass. The User ID and Password are case-sensitive. Enter the User ID and Password and click the button to proceed to the next page. ULTRAMATRIX AV HD INSTALLATION AND OPERATIONS MANUAL... -
Page 19: Figure 12. Rosecontrolip Main Page
8. The unit is now ready to be placed on the general network. Disconnect the unit from the computer and connect it directly to the network. Restore the previous IP address of the computer that was used to configure the unit, and connect it to the network. ULTRAMATRIX AV HD INSTALLATION AND OPERATIONS MANUAL... - Page 20 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
