Rose electronics UltraMatrix A/V Quick Start Manual

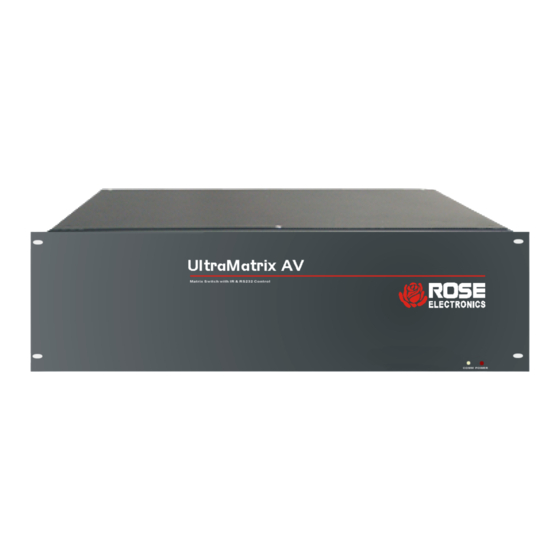

Matrix a/v switch
Hide thumbs
Also See for UltraMatrix A/V:
- Installation and operation manual (20 pages) ,
- Installation and operation manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Rose electronics UltraMatrix A/V
Summary of Contents for Rose electronics UltraMatrix A/V
- Page 1 UltraMatrix A/V Matrix A/V Switch Quick Start Guide 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 www.rose.com...
- Page 2 RoseControl (Installation is performed for each computer (1-16) that is connected to the unit) Connect a serial ”Y” cable (DB9MF) from both UltraMatrix A/V RS232 ports (DB9F) to the serial port on the controlling computer. Connect up to 16 computers that have your video content to the HD15F video input connectors labeled In 1-16 on both units using a HD15 MM “Y”...
- Page 3 The UltraMatrix A/V can be easily switched using the included Rose Control software. Install the software on a computer or laptop that will be used to switch the UltraMatrix A/V. When the installation is complete, execute the program “RoseControl” from the “Start” menu and the below window will display.
- Page 4 When you click on the OK tab, the below selection matrix will display. Input Names and Output Names can be modified to easily identify which video source is being presented on which output monitor. To change these names, select it and enter the name needed.
