Summary of Contents for Rose electronics UltraVista

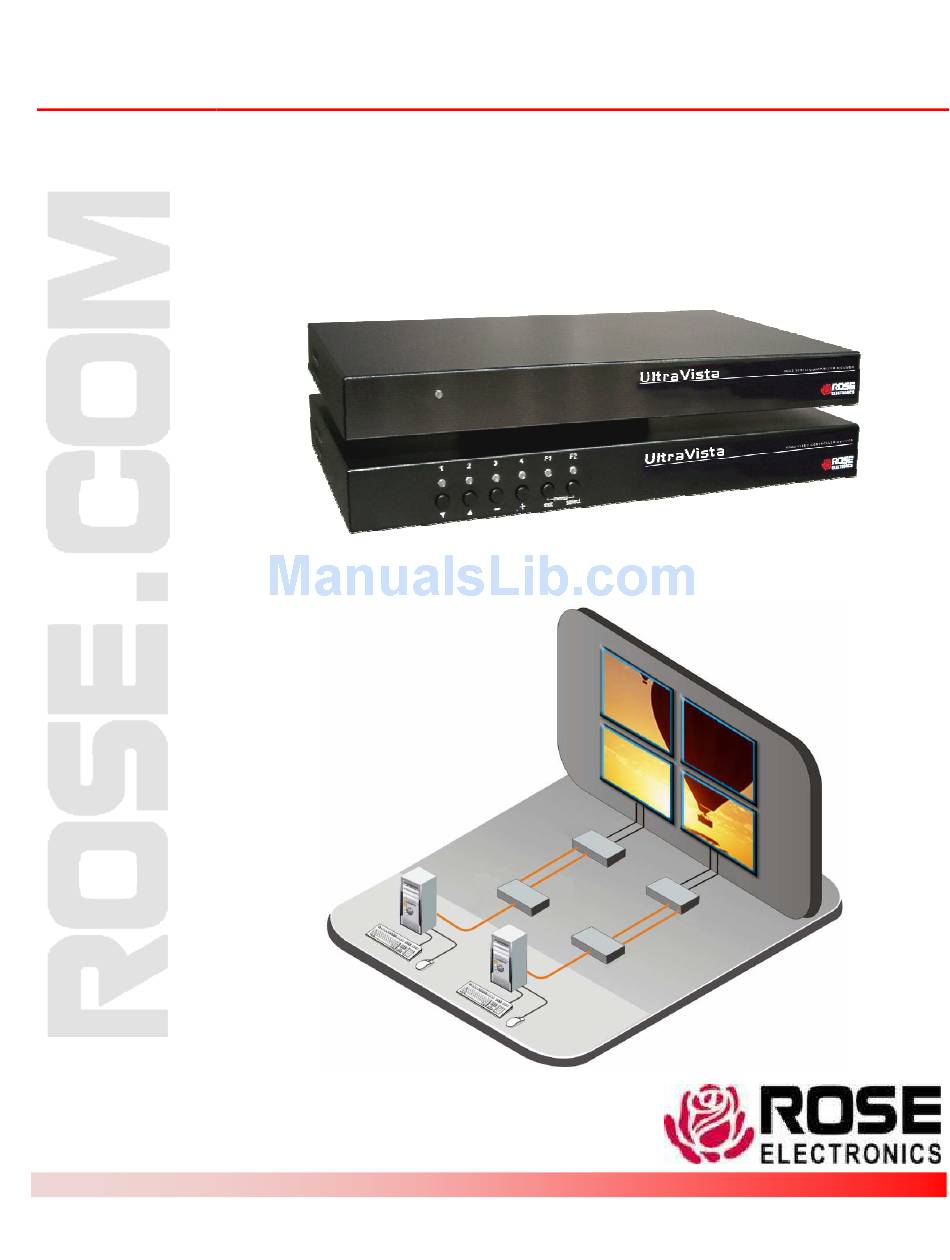

- Page 1 UltraVista ™ MultiViewer/Video wall INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 www.rose.com...
- Page 2 Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced parts become the property of Rose Electronics.
- Page 3 This declaration is valid for the following product: Equipment: Video, Keyboard, Mouse Switching System Type: UltraVista Hereby the equipment is confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC) and the Council Directive relating to Low Voltage (73/23/EEC).
-
Page 4: Table Of Contents
Page # System Introduction................................. 1 Features ..................................1 Product Registration................................ 1 Package contents ................................1 Rose Electronics web site ............................... 2 About this manual................................2 Disclaimer..................................2 Models ..................................... 3 Main Unit – Front Panel Controls ............................ 3 Main / Extension Unit – Rear Panel Connectors......................4 Installation .................................. - Page 5 Figure 9. OSD - Video output............................11 Figure 10. Gap compensation menu..........................12 Figure 11. Preset Type – Free ............................13 Figure 12. UltraVista Control screen ..........................13 Figure 13. Control program toolbar ..........................14 Figure 14. Settings ................................ 16...
-
Page 6: System Introduction
The UltraVista, Multi-Viewer/Video Wall represents the latest in video displaying technology. The advanced design of the UltraVista can display signals from any video source with a DVI or VGA output. This can be from PCs, media players, DVD players, TV receivers, VCRs, and HD/SD-DSI signals used in professional video production. The flexibility of UltraVista allows for expansion to any needed installation display size. -
Page 7: Rose Electronics Web Site
Visit out web site at www.rose.com for additional information on other products that are designed for data center applications, classroom environments and other applications. About this manual This manual covers the installation and operation of UltraVista. Disclaimer While every precaution has been taken in the preparation of this manual, the manufacturer assumes no responsibility for errors or omissions. -
Page 8: Models
* Sub-presets can be used to change details of a particular preset, or used as independent presets. When sub-presets are used as independent presets, the max number of presets accessible from the front panel is 12. To define more than 12, use UltraVista’s control program. UltraVista Installation and Operations Manual... -
Page 9: Main / Extension Unit - Rear Panel Connectors
Figure 2. Rear View Main / Extension Unit – Rear Panel Connectors Each UltraVista unit (main and extension) consists of two (2) video boards, A and B. Video board “A” connects two video sources to a video output Video board “B” connects two video sources to a video output... -
Page 10: Installation
Connect the video source to a video splitter, and connect the splitter’s outputs to the channel 1 inputs (labeled “1”) on all UltraVista main and extension unit. If you want to use two video sources, connect the second video source in the same manor to the channel 2 inputs from a second DVI/VGA splitter. - Page 11 When applying power to the system, apply power to video splitters first before turning on the video sources. This enables the video sources to read the UltraVista units’ EDID (display information) data. To initialize the system, open the OSD menu by pressing the SELECT and EXIT buttons on the front panel of the UltraVista main unit until the OSD menu displays (approximately 3 seconds) Enter the SYSTEM menu, by pressing the SELECT button.
-
Page 12: Installation - 2 Video Sources
The extension units provide the video signal for the other displays If more than two video sources need to be connected to UltraVista, you can use a video matrix instead of a video splitter. The following example shows four video sources connected to a 4 x 8 video matrix. -
Page 13: Figure 5. Video Matrix + 4 Video Sources
UltraVista offers two types of presets, basic and free. Basic presets are used where the display of a video source is arranged in a regular grid and setup is performed using the OSD. Free presets offer the greatest flexibility for creating eye catching displays. You can freely position the displays and use different display types like CRT’s, flat panel displays or projectors. -
Page 14: Basic Preset Set-Up
The input channel this Channel: display shows (1 or 2) The width and height of the Wall size: video wall (x by y) Position of the display on Position the video wall (1-n) Figure 6. Configure Presets (Basic) UltraVista Installation and Operations Manual... -
Page 15: Advanced "Basic" Preset Set-Up
By selecting a wall size that is larger than the actual video wall, you get a zoom effect. Video wall presentations using UltraVista makes creating these and other video effects simple and easy. UltraVista Installation and Operations Manual... -
Page 16: Gap Compensation
Larger Horizontal gap Setting the gap width To calculate and set the gap width, first determine UltraVista’s video output resolution. To determine this, call up the OSD (Press “EXIT and SELECT” buttons). Select “CONSOLE” from the menu and press “SELECT”. From the Console menu, select “VIDEO OUTPUT”... -
Page 17: Figure 10. Gap Compensation Menu
Use a ruler or other straight object to check if the lines are aligned. If not, adjust the gap to align the two images. Jump between screens (Line should follow the dotted line) No jump between screens (Compensating for the gap, the transition from screen to screen is a straight line) UltraVista Installation and Operations Manual... -
Page 18: Free Presets
CTRs, LCD TVs, or video projector. The displays can be any screen size, resolution, aspect ratio, digital or analog. The UltraVista control program must be used to define the free presets. -
Page 19: Control Program Toolbar
Save the design to the same file name as the one opened Save as Saves the design to a user choice file name Settings Selects the COM port to communicate to UltraVista File Print Prints the design layout Print preview... - Page 20 Select the active preset design to display or create Channel 1 Select input channel Create a new UltraVista command session Open an existing design Save the design to the same file name as opened Cut the selected area and place in the clipboard...
-
Page 21: Figure 14. Settings
The first item to perform is set up the communication between the controlling PC and UltraVista. Click on “File”, then “Settings” and the below settings window will display. Click on the down arrow and select the COM port the serial cable will be connected to. - Page 22 Display names show the UltraVista unit and board the display is connected to. If you want to use both input channels in the same preset, use the Channel drop down to switch between the views of the two channels. Set the sizes for all displays showing input channel 1 in channel 1, and all displays showing the second channel in channel 2.
- Page 23 This menu allows you to add or remove screens, open the Edit window, and choose the input channel the display shows. After you have created an approximation of your preset using the Preset Edit View, fine tune each preset as described below. UltraVista Installation and Operations Manual...
- Page 24 800 x 600 1024 x 768 1280 x 960 1600 x 1200 1280 x 1024 16:9 1366 x 768 HDTV (1920 x 1080) 16:10 1680 x 1050 1920 x 1200 Common aspect ratios and resolutions UltraVista Installation and Operations Manual...
- Page 25 Optional; a fixed aspect ratio which the program will maintain. This prevents distortion of the image by ensuring the section from the input image always has the correct aspect ratio Input Channel Which input channel to display Output position The output resolution UltraVista Installation and Operations Manual...
- Page 26 Aspect ratio This setting controls the way the UltraVista Control program allows screens to be resized. If a fixed aspect ratio is chosen, the program always maintains that ratio. For a more detailed discussion of aspect ratios,...
- Page 27 To load a preset, choose “File . Load...” from the main menu. When the control program is connected to the UltraVista system, the loaded presets will be stored on the UltraVista system immediately after loading. Size and position are specified in relative units. This means that the units do not directly correspond to pixel values, they are relative to the width of the input image.
- Page 28 Refer to section Input channel settings for a table of common resolutions and their aspect ratios. In the UltraVista Control program, go to “Video . Input Channels...” in the main menu. In the window, set the aspect ratios for the input channels.
- Page 29 Note down the size of each display. Note If you have more than one display of the same type, you only have to measure the size once, and use the same values for width and height UltraVista Installation and Operations Manual...
- Page 30 (for the x coordinate), or the x coordinate of the topmost display as offset. For each display, enter the values for position and size (from step 6) in the Edit window in the UltraVista Control program.
- Page 31 UltraVista Installation and Operations Manual...
- Page 32 UltraVista Installation and Operations Manual...
- Page 33 Example: UltraVista Installation and Operations Manual...
- Page 34 Take care to measure only the visible section of the screens, that is, exclude the frames around the displays at the video wall’s edges. UltraVista Installation and Operations Manual...
- Page 35 Take care to always measure the active part of the screen, not the frame. The pixel density of the video wall is 40.909 U/cm, so we can transform the physical size into coordinates by multiplying with the density. 76.5 cm 40.909 U/cm = 3129.54 U≈3130 U width: UltraVista Installation and Operations Manual...
- Page 36 When you enter the output resolution and set the aspect ratio to “as display”, the program will automatically adjust the height of the section according to the width and aspect ratio. Next set the values in the Edit window. Repeat for all displays. UltraVista Installation and Operations Manual...
- Page 37 These coordinates will be the offset values we have to add to our measurements. The offset values are X:253 units and y: 2387 units Step 8: Measure coordinates for each display Next, measure the distance from the topmost and leftmost displays for each display in the video wall. UltraVista Installation and Operations Manual...
- Page 38 Finally, create a test image, and fine-tune all displays. Example of the test images could look like this: This image is created in a way that ensures at least two horizontal and two vertical lines are on each display. UltraVista Installation and Operations Manual...
- Page 39 On this image, every edge between two displays has one diagonal line crossing it. UltraVista Installation and Operations Manual...
-
Page 40: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 41: Safety
SAFETY Safety The UltraVista has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the UltraVista should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 42: Appendix A - Osd Menus
Main Menu To open UltraVista’s OSD, press and hold the exit and select buttons for approximately 3 seconds until the OSD opens on the display connected to board A on the main unit. When the OSD displays, the front panel buttons perform the designated functions as shown below. -
Page 43: System / Initialize
If the UltraVista Units detected does not match the number of units in the system, verify that all units are connected, cabling is correct and secure, and all units are switched on. Then retry initializing the system by pressing the “SELECT”... -
Page 44: System / Preset Type
F1 and F2 buttons. Selecting the Free preset type, you must set-up and control the presets using UltraVista’s command program If you set-up the Basic presets and then switch to the Free preset type, the information entered for the Basic Preset configuration settings are not lost. -
Page 45: System / Osd Position
OSD and navigate to SYSTEM / OSD LANGUAGE and press SELECT. The OSD LANGUAGE screen will display allowing you to choose which language is needed. Use the up / down arrow keys to select the desired language. The OSD Language screen is shown below UltraVista Installation and Operations Manual... -
Page 46: System / Test Pattern
The test pattern menu allows you to check the monitor quality (pixel errors, contrast, etc) and the functionality of the UltraVista’s video output. There are 9 test patterns to choose from. To start the Text Pattern OSD and navigate to SYSTEM / TEST PATTEERN and press SELECT. -
Page 47: Configuration / Factory Reset
Configuration / Factory Reset The Factory Reset function will reset all parameters to the factory default settings and reboot the UltraVista with the factory default settings. To start the factory reset, open the OSD and navigate to CONFIGURATION / FACTORY RESET and press SELECT. -
Page 48: Console / Video Output
SXGA 1280 1024 WUXGA 1920 1200 SXGA 1280 1024 HDTVp 1280 SXGA 1280 1024 HDTVp 1280 SXGA+ 1400 1050 HDTVp 1920 1080 UXGA 1600 1200 HDTVp 1920 1080 UXGA 1600 1200 HDTVp 1920 1080 Continued UltraVista Installation and Operations Manual... - Page 49 Choose “Apply to all boards” and press the SELECT button. If you select the output mode of “auto”, UltraVista will use the optimum output resolution offered by the EDID. Verify that the connected monitor provides EDID data via the monitors DDC interface.
-
Page 50: Video / Video Input
Navigate to “Select Input Signal:” and select which video input signal (DVI or VGA) will be displayed. If the selection is both DVI and VGA, UltraVista will first check the first input signal (DVI or VGA). If there is no signal detected at this input, the second signal input will be checked. -
Page 51: Video / Brightness
The Video Contrast feature is used to adjust the contrast of an analog video input signal. Open the OSD and navigate to the Video menu. Select Contrast and press the SELECT button. The Video / Contrast window will display. Select Computer x and use the + or – buttons to adjust the brightness. UltraVista Installation and Operations Manual... -
Page 52: Video / Horiz Position
Video menu. Select VERT POSITION and press the SELECT button. The Video / VERT POSITION window will display. Select Computer x and use the + or – buttons to adjust the horizontal position between -40 and +40. UltraVista Installation and Operations Manual... -
Page 53: Video / Screen Width
Select PHASE and press the SELECT button. The Video / Phase window will display. Select Computer x and use the + or – buttons to adjust the clock phase for the selected computer. UltraVista Installation and Operations Manual... -
Page 54: Video / Dvi Input Mode
Navigate to “Signal:” and select the video type (digital or analog). Normally you can leave the setting “digital”. When all information is correct, use the up/down arrow buttons and select “WRITE” and press the SELECT button. UltraVista Installation and Operations Manual... - Page 55 The configuration program “CONFDEV” can also be used to program the EDID information. This program runs externally on a connected “Windows” computer connected to UltraVista. This method allows you to monitor the programming on the monitor. UltraVista Installation and Operations Manual...
-
Page 56: Appendix B - Specifications
Appendix B – Specifications UltraVista Installation and Operations Manual... - Page 57 〒103-0014 東京都中央区日本橋蛎殻町 1-16-11 TEL:03-3668-8089 FAX:03-3668-9872 URL:http://www.cybernetech.co.jp...
