Rose electronics 2 Specifications

UltraMatrix Remote 2

Features and Benefits

Secure connection to remote computers locally or over IP
using any supported web browser and RealVNC viewer
RealVNC viewer can be downloaded directly from the
unit or RealVNC web site.
Security system with login, computer access control and
data encryption using AES 128 bit encryption.
Video resolution up to 1280 x 1024
Powerful and expandable to 1,000 computers.
Local or remote BIOS-level access control
Up to 4 local user and 4 remote user ports
Up to 4 remote users can connect to the same remote
user port simultaneously. Users connected to the same
remote user port share all functions.
Serial VT220 terminal emulation for access to UNIX hosts,
routers, and other supported serial devices (Multi-
Platform models)
Multi-lingual menu (English, French, German, Spanish,
Italian, and Portuguese)
Status screen shows current connections, computer
power, plus additional information
Supports PS/2, PS/2 wheel, USB, and Sun
Supports HV sync, composite sync, and sync-on-green
video
Serial access for computer switching, unit configuration,
flash memory upgrades and reset to factory defaults
Free firmware upgrades for product enhancements and
new software features are available at www.rose.com
Rack mount kits available in 19", 23", and 24" sizes
Made in USA
Matrix KVM switch with integrated
remote access over IP
System-wide connectivity locally or over IP from any
location worldwide using any supported web
browser
Connects 1,000 computers to Multiple user stations
High quality video up to 1280 x 1024
Secure encrypted operation with login and computer
access control
PC only and Multi-Platform models available. Multi-
Platform design makes it compatible with PCs, Sun,
UNIX, Linux, USB, and serial devices
Download and install the RealVNC Viewer directly
from the unit

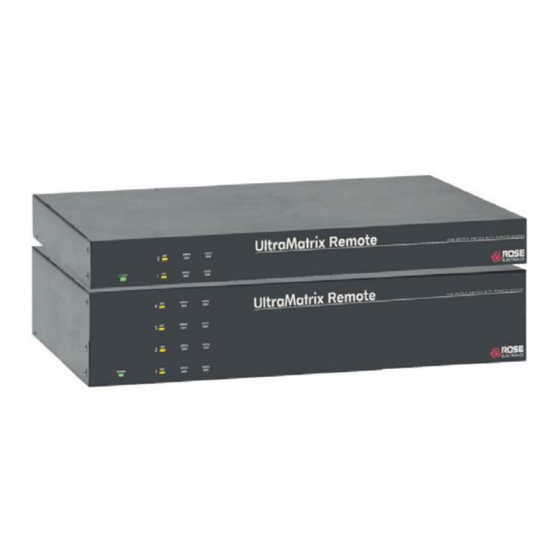

The UltraMatrix™ Remote 2
Advantage
The UltraMatrix Remote 2 represents the next generation
in KVM switches. It not only provides a comprehensive
solution for remote server console access with Bios-level
access control, it provides a very secure remote access
to your system, locally, from any workstation on your
network, or worldwide over IP using any supported web
browser and the secure RealVNC Viewer.
The powerful, advanced on-screen menu can be used to
configure the unit, name the computers, and much more.
When accessing a computer over your network, the
Viewer application receives and displays the video and
sends back keyboard and mouse data. This process
allows you to access the remote computers from
anywhere, locally, across your network, or around the
world.
The UltraMatrix Remote 2 can easily be expanded to
other KVM switches to make a seamless and truly
scalable KVM matrix solution. Network communication
technology is used to reduce cost, eliminate single
points of failure, and increase reliability.
The RealVNC Viewer simplifies access to the remote
computers and provides an additional layer of security to
the system. Once connected you will see a crisp, clear,
high-quality image of the remote computer. Your remote
keyboard and mouse now control the remote computer.
The UltraMatrix Remote 2 uses flash memory
With UltraMatrix Remote 2 you have
access to your systems from
anywhere in the world
technology. Upgrades and product
enhancements are easily done by obtaining
unit specific firmware from our web site at
www.rose.com.
W W W . R O S E . C O M
