- Page 1 UltraView DVI 1×16 KVM Switch • DVI • USB2.0 • Audio Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
-
Page 2: Limited Warranty
UltraView DVI to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. -
Page 3: Table Of Contents
RS-232 Commands Hotkey Commands Safety Maintenance and Repair Technical Support Figures Figure 1. UltraView DVI Front View Figure 2. UltraView DVI Rear Panel Figure 3. UltraView DVI Installation Appendices Appendix A- Specifications Appendix B- Part Numbers Appendix C- Hotkey and RS-232 Commands... -
Page 4: Disclaimer
(See limited warranty.) System Introduction Thank you for choosing the UltraView DVI KVM Switch. It is the result of Rose Electronics commitment to providing state-of-the-art solutions for today’s demanding workplace. The UltraView DVI is a dedicated multi- platform KVM switch capable of managing up to 16 different computers through a single console’s DVI-D... -
Page 5: Package Contents
Package Contents The package contents consist of the following: ■ The UltraView DVI unit as ordered ■ External power supply unit and country-specific power cable ■ Manual Additional cables that are required, but are not included in the package: ■... -

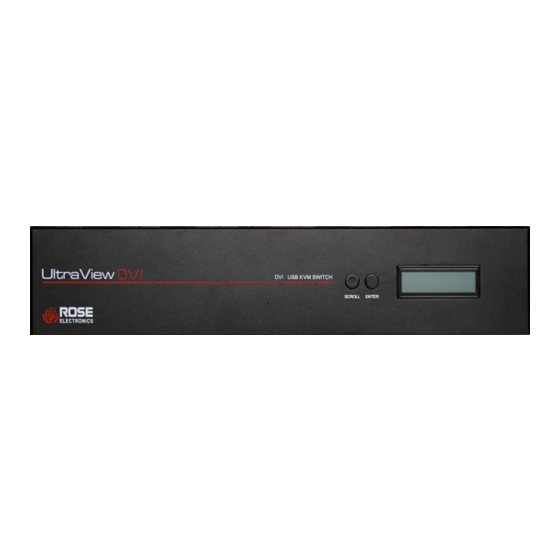

Page 6: Ultraview Dvi Models
Figure 2. UltraView DVI Rear Panel The rear panel of the UltraView DVI has 16 DVI, USB, and Audio connectors for signals to and from the computers. Connect as many sets of PC cables as are required, up to a maximum distance of 20 ft (6.0 m) from the switch. -
Page 7: Installation
INSTALLATION Installation Installation of the UltraView DVI is very simple. The steps to do so are outlined below. 1. Ensure that power is disconnected from UltraView DVI. 2. Connect the DVI cables, USB cables (male-A to male-B), and audio cables from the computers to the respective ports on the UltraView DVI. -
Page 8: Ultraview Dvi Operation
PuTTY and other terminal software may not default to the settings above. If the RS-232 connection seems unresponsive, cycling power to the UltraView DVI will reset all values and boot up messages will be sent to the terminal display, verifying the connection. -
Page 9: Hotkey Commands
Hotkey Commands The Hotkey command is a keyboard sequence used to trigger an action on the UltraView DVI through the use of the keyboard connected to a USB KB/MS port. To activate the hotkey sequence, press and release the CTRL key twice and then enter the desired hotkey command. A listing of available hotkey commands is shown in Appendix C. -
Page 10: Safety
PRODUCT SAFETY Safety The UltraView DVI, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. -
Page 11: Service And Maintenance
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 12: Appendices
Front Panel Buttons and LCD Display, Keyboard Hotkeys, RS-232 Commands Control External 100-240 VAC/ 5VDC4A @20W Power Environmental Conditions Operating Temperature 32ºF to 131ºF (0ºC to 55ºC) Storage Temperature -4ºF to 185ºF(-20ºC to 85ºC) Relative Humidity Up to 95% no condensation UltraView DVI Manual... -
Page 13: Appendix B- Part Numbers
Appendix B- Part Numbers Part Number Description UVD-1x16DVI/UA1 1X16 UltraView DVI /USB/Audio KVM Switch CAB-DVIDMM006 DVI-D, 6 ft (2 m) Video Cable CAB-USBAB006 USB-AB 6 ft (2 m) USB Cable CAB-SPMM006 Audio 3.5mm, 6ft (2m) Appendix C- Hotkey and RS-232 Commands... - Page 14 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
