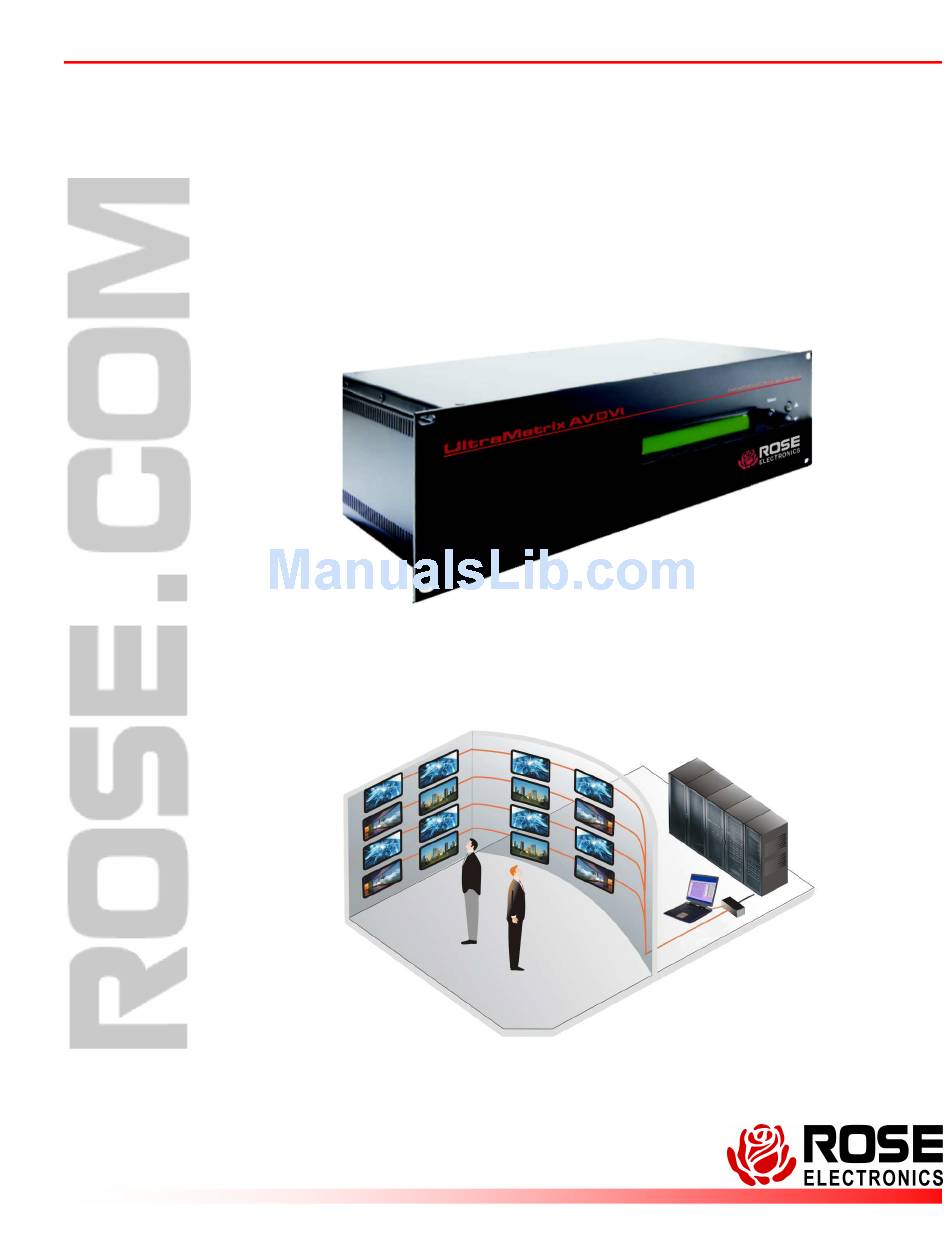

- Page 1 UltraMatrix AV DVI UltraMatrix AV DVI UltraMatrix AV DVI UltraMatrix AV DVI VIDEO DVI MATRIX SWITCH INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone (281) 933-7673 Houston, Texas 77099 www.rose.com...
- Page 2 LIMITED WARRANTY Rose Electronics warrants the UltraMatrix™ AV DVI to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 Switching using serial commands ............................6 Switching using the front panel ............................7 Front Panel Menu Options ..............................7 DDC Learning (submenu)..............................7 Operating UltraMatrix AV DVI .............................. 8 Macro’s....................................9 Safety ....................................11 Safety and EMC Regulatory Statements........................11 Service Information ................................
-
Page 4: Disclaimer
The ease of switching video sources makes the UltraMatrix AV DVI a versatile and flexible addition to your system. Up to 16 video sources can be switched to any selected output port. The video switching can be controlled by the front panel, the RS232 input using a PC Windows based software, or serial commands sent to the RS232 port. -
Page 5: Front Panel
MODELS Front Panel Indicators Communication Power Rear Panel Connectors 16 video input 16 video output (DVI-D connectors) 1- RS232 serial input Power / Switch UltraMatrix AV Installation and Operations Manual... -
Page 6: Installation
Installation of the UltraMatrix AV DVI consists of connecting each of the video sources to the video input ports on the UltraMatrix AV DVI. All video inputs are located on the rear panel and are labeled video 1 – 16. Connect the video from the DVI video output connector on computer #1 to the DVI video input connector #1 using an DVI-DM to DVI-DM cable. -
Page 7: Figure 2. Configure Router
4 x 8 switching matrix. 3. Select the “Com Port” to connect the serial communication cable to. 4. The “Router Timeout” field set how many seconds the program will wait for the UltraMatrix AV DVI unit to respond to commands. -
Page 8: Figure 3. Rose Control Switching Matrix
The RoseControl switching matrix is a dynamic matrix that will automatically adjust the number of inputs and outputs selected on the “Configure Router” screen. The default matrix is set to 16 x 16 for a single unit installation. The switching matrix makes it easy to select and switch any input video and optional audio source to any output destination. -
Page 9: Switching Using Serial Commands
Switching using serial commands The UltraMatrix AV DVI can be instructed to switch any video input port to any video output port by sending a serial command to the RS232 port. To control the switching functions using an RS-232 connection, use a male-to-female serial cable to connect a computer’s COM port to the UltraMatrix AV DVI’s RS-232 port. -
Page 10: Switching Using The Front Panel
Front Panel Menu Options The additional menu features of the UltraMatrix AV DVI can be accessed by pressing and holding the UP and DOWN buttons for 3 seconds. This invokes the menu screen. Turn the dial to choose the menu option from the below list of... -
Page 11: Operating Ultramatrix Av Dvi
Operating UltraMatrix AV DVI Operating the UltraMatrix AV DVI is performed from a standalone computer or laptop connected via a serial cable to the unit’s RS232 port. RoseControl software is used for all video source selection and destination routing. Inputs are listed vertically and outputs horizontally. -
Page 12: Macro's
SAFETY Macro’s The UltraMatrix AV DVI can save custom routing schemes as macros. Up to 50 different macros can be created and saved for use at anytime with a single click. Figure 5. Macros To create a macro, click on the Record tab. A dialog box will display showing two choices, “Manual Save” or “Save Status”. -
Page 13: Figure 6. Help Menu
The UltraMatrix AV DVI has a very useful Help function. Clicking on Help will display the help menu as shown below. Figure 6. Help menu UltraMatrix AV Installation and Operations Manual... -
Page 14: Safety
SAFETY Safety The UltraMatrix AV DVI has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the UltraMatrix AV DVI should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 15: Service Information
Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday through Friday. Please report any malfunctions in the operation of this Unit or any discrepancies in this manual to the Rose Electronics Technical Support Department. UltraMatrix AV Installation and Operations Manual... -
Page 16: Appendix A – General Specifications
Appendix A – General Specifications Video Video Bandwidth 165MHz Resolution Up to 11920 x 1200 Video Connectors (In / Out) DVI-D (29 pin female) Max cable length (In / Out) Up to 30 feet Power Voltage 100 – 240 VAC, 50/60 Hz, 60 Watts Physical Dimensions 19”... - Page 17 〒103-0014 東京都中央区日本橋蛎殻町 1-16-11 TEL:03-3668-8089 FAX:03-3668-9872 URL:http://www.cybernetech.co.jp...
