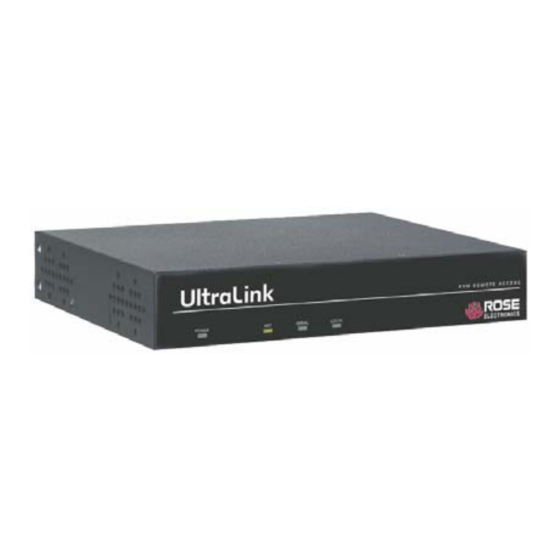

Rose electronics UltraLink Lite UL-LV3 Specifications

UltraLink Lite

Features and Benefits

Local KVM port for configuring the UltraLink Lite
and direct local access to the computer or KVM
switch
Connect to a remote computer, server, or KVM
switch directly or over a network
Resolution up to 1280 x 1024 @75Hz
Solid-state embedded unit for maximum reliability
Compatible with all Rose Electronics KVM products
and most other KVM devices
Easy to install and configure
Scaling of computer images reduces the amount of
data sent and permits fast screen updates over
slow links (Modes: scaled, scrolled, or full-screen)
Quad screen mode allows you to view four servers
from one screen when connected to a KVM switch
Password security prevents unauthorized
configuration and access
User ID and password required for remote access
Remote client application is simple to install, use,
and requires no licensing
Front panel shows power and current connected
input port (Network, serial, or local KVM)
Flash memory technology allows for fast
and reliability upgrades
Free firmware upgrades for product
enhancements and new Software
features available at www.rose.com
Rackmount kits available in 19", 23",
and 24" sizes
Made in USA
KVM access over IP
Low cost economy model
High-quality video up to 1280 x 1024 @ 75Hz
Very easy to install and operate
Secure encrypted operation
Scaling, scrolling, and auto-size features
Quad screen, real-time view of four computers
Compatible with most KVM switches
The UltraLink™ Lite Advantage . . .
UltraLink Lite sets a new standard for an economical
way to remotely manage server room environments.
It allows you to access your computers and servers
locally or across your network. Connect the unit to a
Rose Electronics KVM switch and you now have access
to as many as 1,000 computers or servers.
The UltraLink Lite is easy to install and configure.
Connect the unit, assign an IP address, install the
remote viewer software, and it's ready to use.
The sophisticated scaling feature allows you to position
any size image of your server's video anywhere on your
screen. With this feature, you can monitor servers
while working on other tasks in another window.
Network workstations can connect to multiple UltraLink
Lites and display each connection in separate viewer
windows.
The remote client viewer program is designed to
simplify accessing the remote computers. Click on the
connect icon, login, and you will see a crisp, clear high-
quality image of the remote computer.
Maintain your systems from anywhere
in the world
W W W . R O S E . C O M
