Connecting to a Monitor with RGB Input Terminal

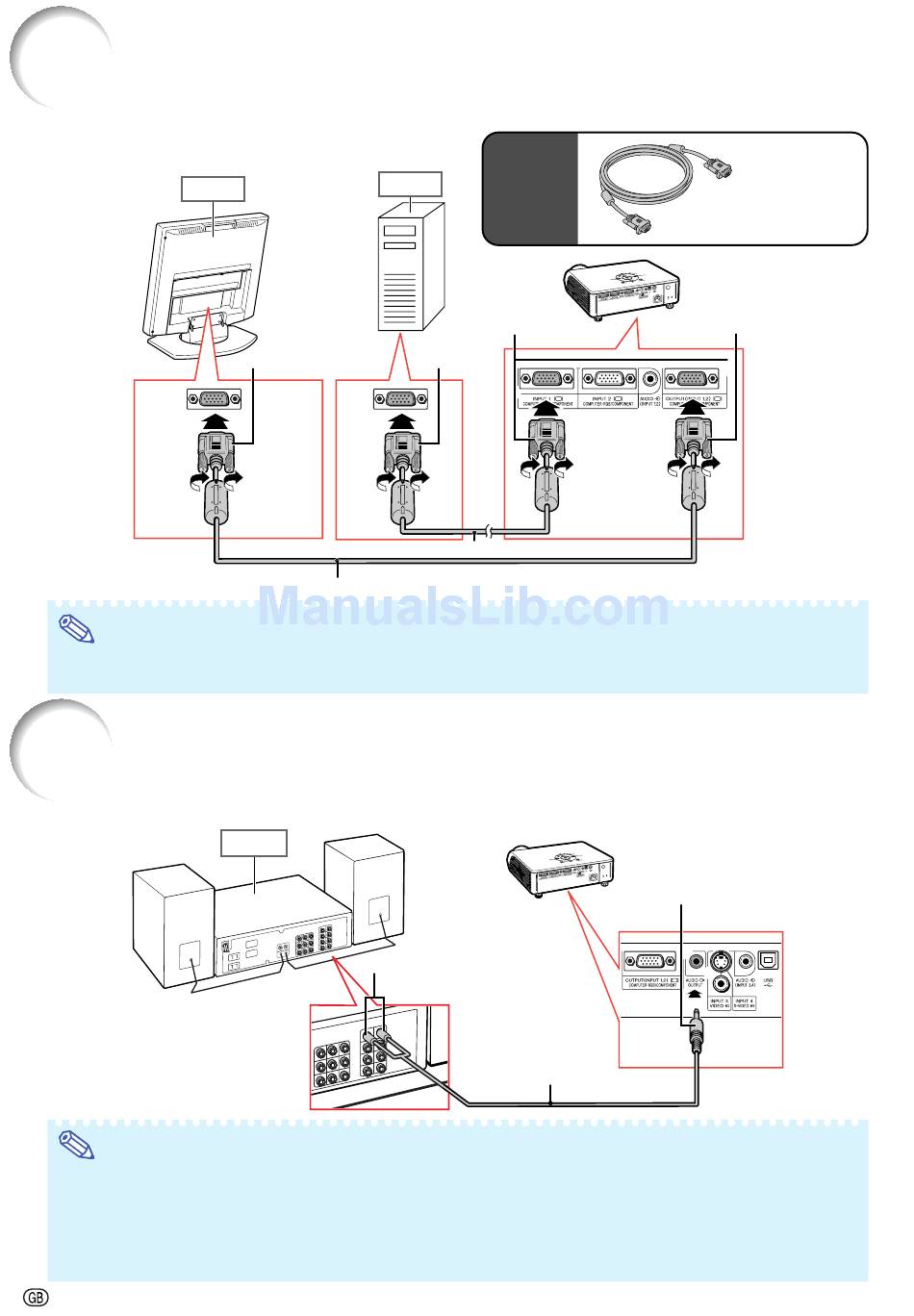

You can display computer images on both the projector and a separate monitor using two sets of RGB cables.
Monitor
Note
• RGB signals and Component signals can be output to the monitor.
• For this connection, another RGB cable (commercially available) is required.

Connecting to an Amplifier or Other Audio Equipment

Audio signals input from equipment connected to each audio input terminal of the projector can be output to audio equipment.
Note
• ø3.5 mm minijack to RCA audio cable (commercially available) is required for audio input.
• Turn off the power of both the projector and audio equipment when connecting.
• When turning off the power in the case of connecting an amplifier or other audio equipment, first turn off
the power of the amplifier and then turn off the power of the projector.
• By using external audio components, the volume can be amplified for better sound.
• For details on Variable Audio Output (VAO) and Fixed Audio Output (FAO), see page 57.
-28
Computer
To RGB input terminal
RGB cable (commercially available)
Amplifier
To audio input terminal
Supplied
accessory
To INPUT 1 terminal
To RGB output
terminal
RGB cable
ø3.5 mm minijack to
RCA audio cable
(commercially available)
RGB cable
To OUTPUT(INPUT 1, 2) terminal
To AUDIO OUTPUT terminal
