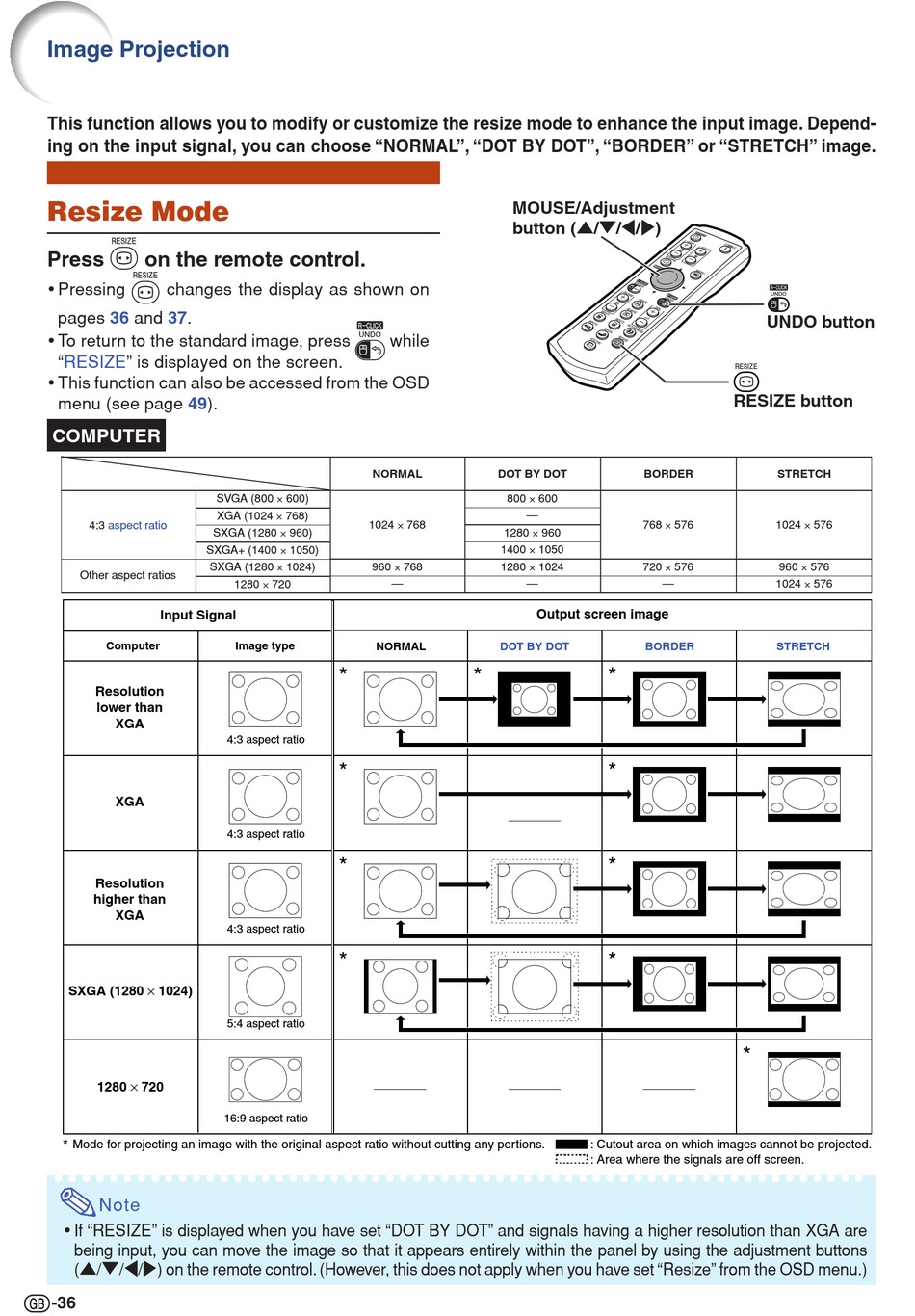

Image Projection
This function allows you to modify or customize the resize mode to enhance the input image. Depend-
ing on the input signal, you can choose "NORMAL", "DOT BY DOT", "BORDER" or "STRETCH" image.

Resize Mode

Press on the remote control.
• Pressing changes the display as shown on
pages 36 and 37.
• To return to the standard image, press
"RESIZE" is displayed on the screen.
• This function can also be accessed from the OSD
menu (see page 49).
COMPUTER
SVGA (800 × 600)
XGA (1024 × 768)
4:3 aspect ratio
SXGA (1280 × 960)
SXGA+ (1400 × 1050)
SXGA (1280 × 1024)
Other aspect ratios
Input Signal
Computer
Resolution
lower than
XGA
XGA
Resolution
higher than
XGA
SXGA (1280 × 1024)
1280 × 720
* Mode for projecting an image with the original aspect ratio without cutting any portions.
Note
• If "RESIZE" is displayed when you have set "DOT BY DOT" and signals having a higher resolution than XGA are
being input, you can move the image so that it appears entirely within the panel by using the adjustment buttons
('/"/\/|) on the remote control. (However, this does not apply when you have set "Resize" from the OSD menu.)
-36
while
NORMAL
1024 × 768
960 × 768
1280 × 720 —
Image type
NORMAL
*
4:3 aspect ratio
*
4:3 aspect ratio
*
4:3 aspect ratio
*
5:4 aspect ratio
16:9 aspect ratio
MOUSE/Adjustment
button ('/"/\/|)
DOT BY DOT BORDER
800 × 600
—
768 × 576
1280 × 960
1400 × 1050
1280 × 1024 720 × 576
—
Output screen image
DOT BY DOT BORDER
* *
*
*
*
: Cutout area on which images cannot be projected.
: Area where the signals are off screen.
UNDO button

RESIZE button

STRETCH
1024 × 576
960 × 576
— 1024 × 576
STRETCH
*
