Numbers in refer to the main pages in this operation manual where the topic is explained.

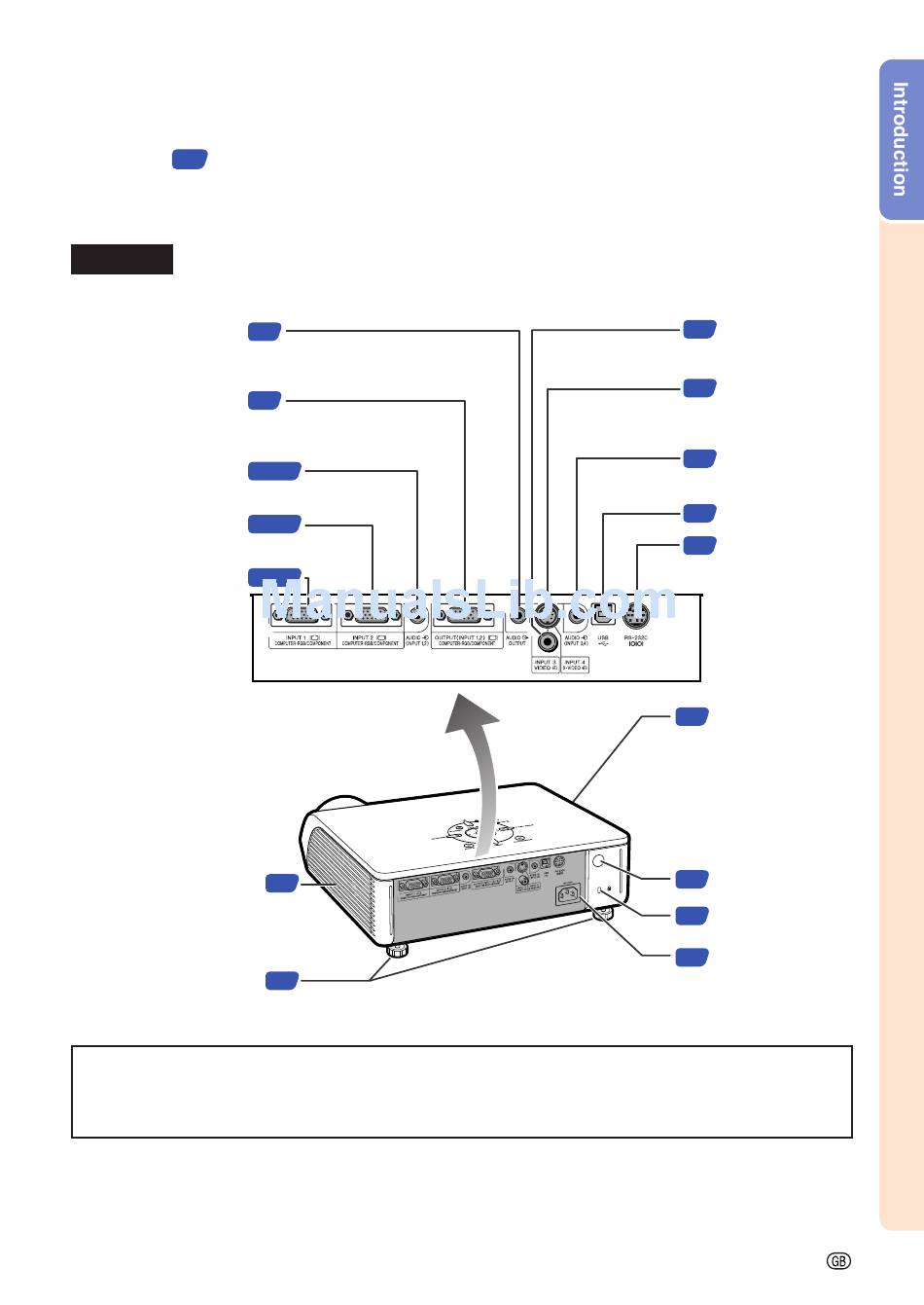

Projector (Rear View)
Terminals Refer to "INPUT/OUTPUT Terminals and Connectable Main Equipment" on
page 21.
AUDIO OUTPUT terminal
Audio output terminal of
equipment connected to the
AUDIO INPUT terminal.
OUTPUT (INPUT 1, 2) terminal
· Shared computer RGB and component
signals output terminal for INPUT 1 and 2.
· Terminal for connecting a monitor.
AUDIO INPUT 1, 2 terminal
Shared audio input terminal
for INPUT 1 and 2.
INPUT 2 terminal
Terminal for computer RGB
and component signals.
INPUT 1 terminal
Terminal for computer RGB
and component signals.
Intake vent
Rear adjustment feet
Using the Kensington Lock
• This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the system for instructions on how to use it to secure the
projector.
28
28
23·25
23·25
23·25
61
30
26
INPUT 3 terminal
Terminal for connecting
video equipment.
26
INPUT 4 terminal
Terminal for connecting
video equipment with an
S-video terminal.
26
AUDIO INPUT 3, 4 terminal
Shared audio input terminal
for INPUT 3 and 4.
23
USB terminal
27
RS-232C terminal
Terminal for controlling
the projector using a computer.
61
Exhaust vent
The speed and pitch of
the cooling fan may
change during operation
in response to internal
temperature changes.
This is normal operation
and does not indicate a
malfunction.
15
Remote control sensor
13
Kensington Security
Standard connector
29
AC socket
Connect the supplied
Power cord.
