Setting up the Projector

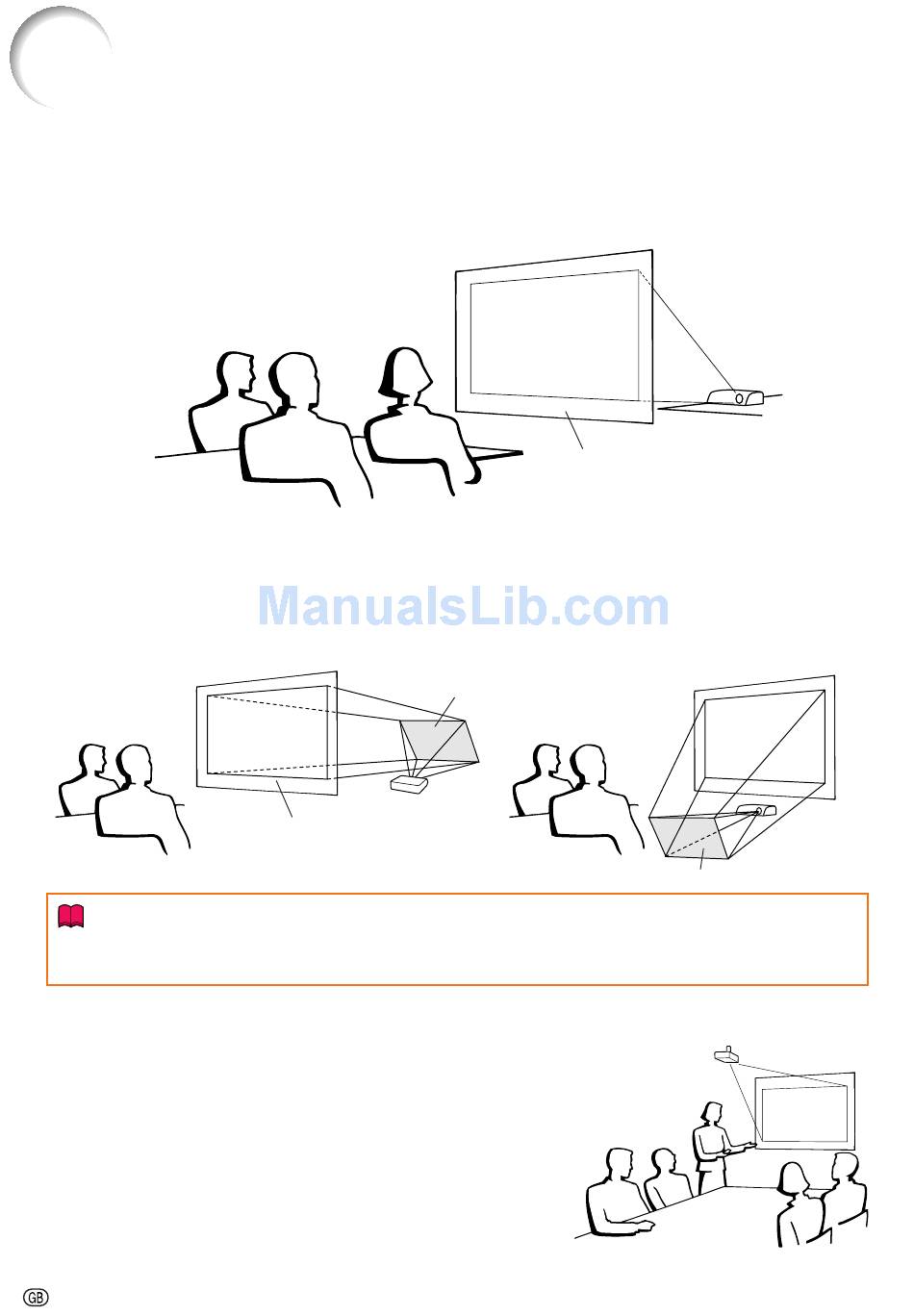

Projecting a Reversed Image

Projection from behind the Screen
■ Place a translucent screen between the projector and the audience.
■ Reverse the image by setting "Rear" in the "PRJ Mode" menu. (See page 57.)
Audience
Projection Using a Mirror
■ Place a mirror (normal flat type) in front of the lens.
■ When the translucent screen is placed between the mirror and audience, set to "Front" in the "PRJ Mode"
menu. (See page 57.)
■ When the mirror is placed on the audience side, set to "Rear" in the "PRJ Mode" menu. (See page 57.)
Set to "Front"
Audience
Info
• When using a mirror, ensure that both the projector and the mirror are carefully placed so the projected
light does not shine into the eyes of the audience.
Ceiling-mount Setup
■ It is recommended that you use the optional Sharp ceiling-mount
bracket for this installation.
Before mounting the projector, contact your nearest Sharp Au-
thorized Projector Dealer or Service Center to obtain the recom-
mended ceiling-mount bracket (sold separately).
• AN-MBCM10 ceiling-mount bracket, its AN-EP101B extension
tube and AN-JT200 universal bracket, adaptor for non-level
ceiling installation (for U.S.A.).
• AN-60KT ceiling-mount bracket, its AN-TK201 and AN-TK202
extension tubes (for countries other than the U.S.A.).
■ Invert the image by setting "Ceiling + Front" in "PRJ Mode". See
page 57 for use of this function.
-20
Translucent screen
Translucent screen
Set to "Rear"
Mirror
Audience
Mirror
