Projecting a Reversed/Inverted Image

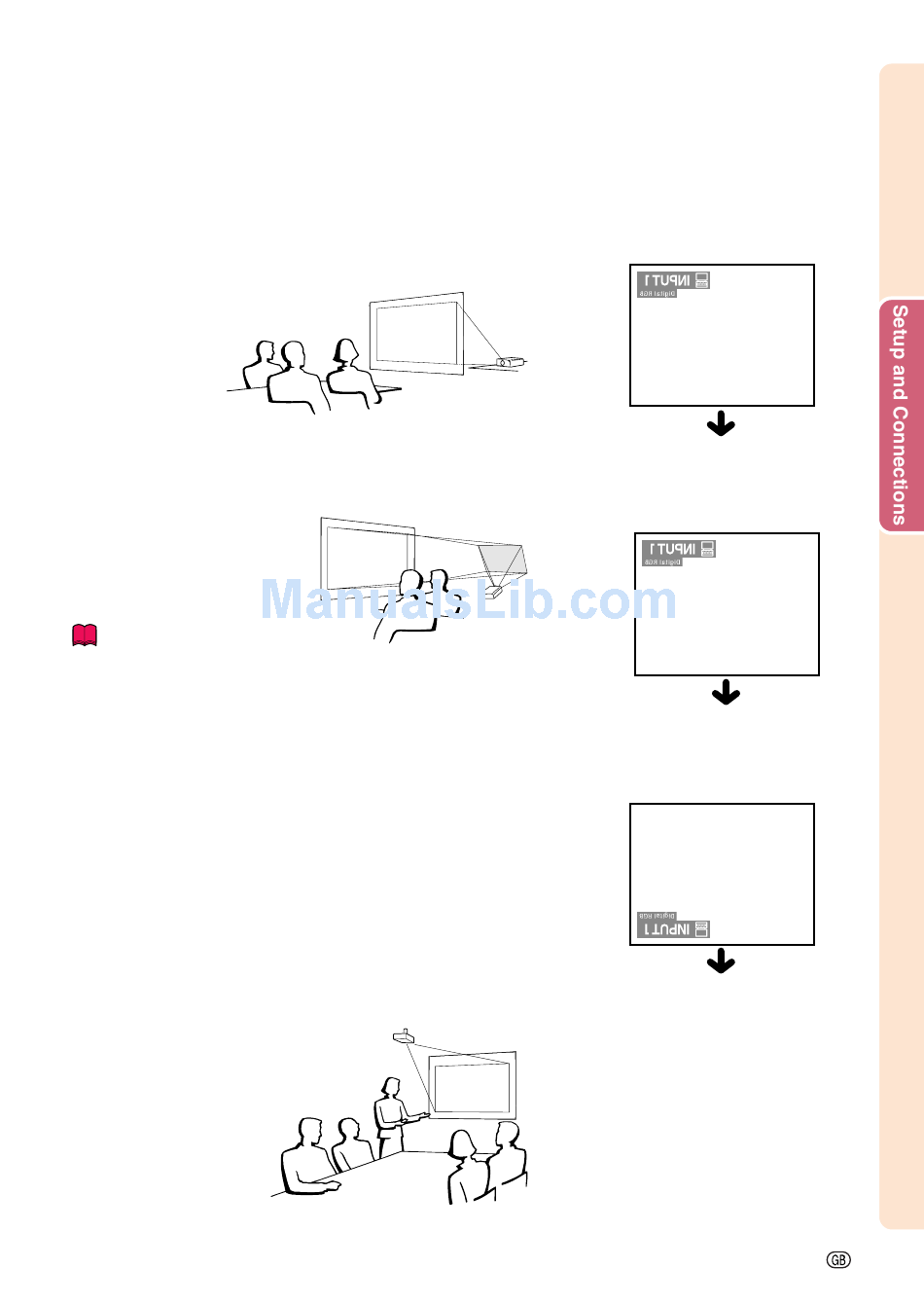

Projection from behind the screen
I Place a translucent screen between the projector and the
audience.
I Reverse the image by setting "Rear" in "PRJ Mode". See
page 60 for use of this function.
Projection using a mirror
I Place a mirror (normal flat type) in front of the lens.
I Reverse the image by setting "Rear" in "PRJ Mode", when the
mirror is placed on the audience side. See page
this function.
Info
• When using a mirror, be sure to carefully position both the pro-
jector and the mirror so the light does not shine into the eyes of
the audience.
Ceiling-mount setup
I It is recommended that you use the optional Sharp ceiling-mount
bracket for this installation.
Before mounting the projector, contact your nearest Sharp
Authorized Projector Dealer or Service Center to obtain the
recommended ceiling-mount bracket (sold separately.) (AN-
PGCM90 ceiling-mount bracket, its AN-EP101B extension tube
and AN-JT200 universal bracket, adaptor for non-level ceiling
installation (for U.S.A.), BB-M20T ceiling adaptor, its BB-
NVHOLDER280, BB-NVHOLDER550, BB-NVHOLDER900
ceiling mount systems (for GERMANY), or AN-60KT ceiling-
mount bracket, its AN-TK201 and AN-TK202 extension tubes
(for countries other than the U.S.A. and GERMANY))
I Be sure to adjust the position of the pro-
jector to match the distance (H) from
the lens center position (see page 18)
to the lower edge of the image, when
mounting the projector on the ceiling.
I Invert the image by
setting "Ceiling + Front"
in "PRJ Mode".
60 for use of
When using the default setting.
MOn-screen Display
The image is reversed.
When using the default setting.
MOn-screen Display
The image is reversed.
When using the default setting.
MOn-screen Display
The image is inverted.
