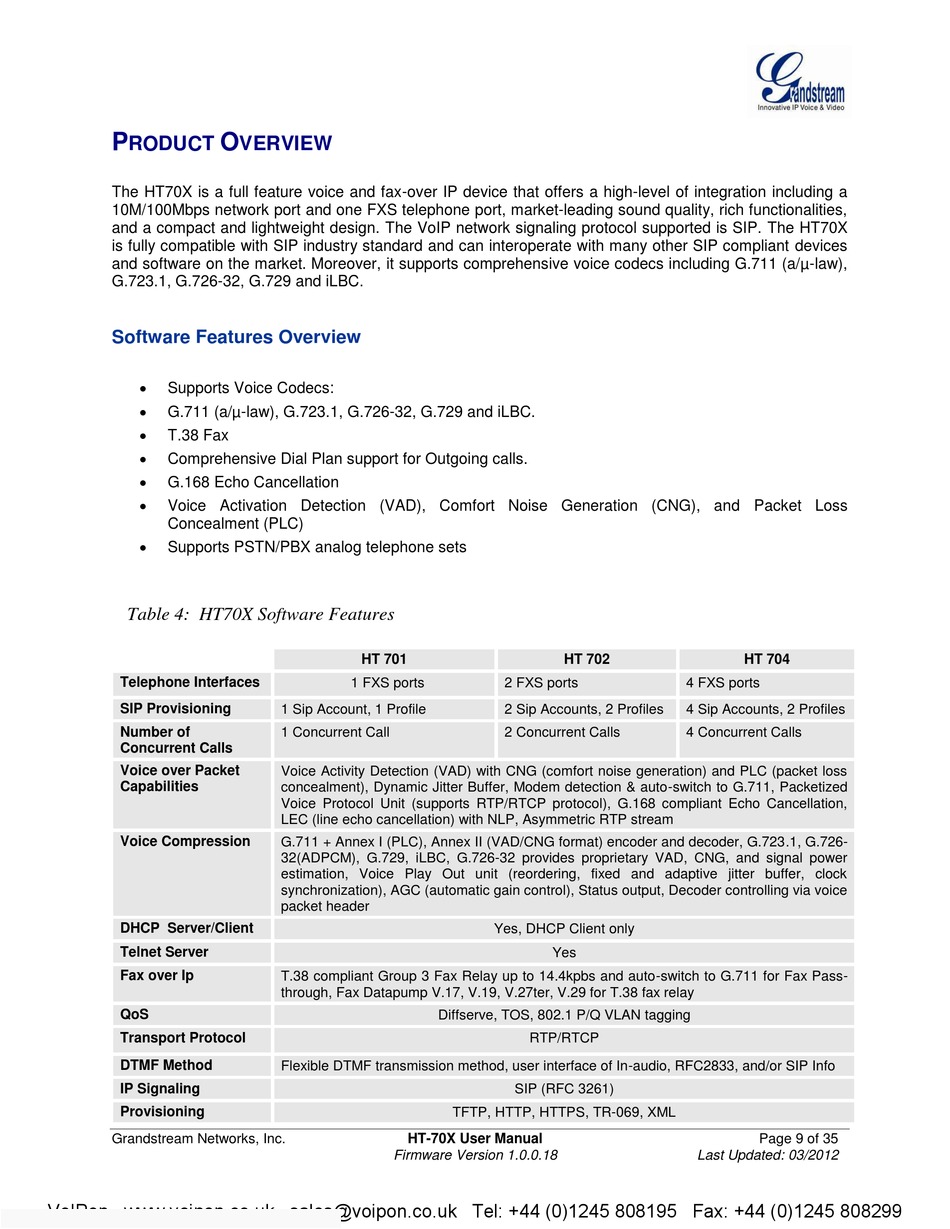

P O
RODUCT
The HT70X is a full feature voice and fax-over IP device that offers a high-level of integration including a
10M/100Mbps network port and one FXS telephone port, market-leading sound quality, rich functionalities,
and a compact and lightweight design. The VoIP network signaling protocol supported is SIP. The HT70X
is fully compatible with SIP industry standard and can interoperate with many other SIP compliant devices
and software on the market. Moreover, it supports comprehensive voice codecs including G.711 (a/µ-law),
G.723.1, G.726-32, G.729 and iLBC.

Software Features Overview


Supports Voice Codecs:

G.711 (a/µ-law), G.723.1, G.726-32, G.729 and iLBC.

T.38 Fax

Comprehensive Dial Plan support for Outgoing calls.

G.168 Echo Cancellation

Voice Activation Detection (VAD), Comfort Noise Generation (CNG), and Packet Loss
Concealment (PLC)

Supports PSTN/PBX analog telephone sets
Table 4: HT70X Software Features
Telephone Interfaces
SIP Provisioning
Number of
Concurrent Calls
Voice over Packet
Capabilities
Voice Compression
DHCP Server/Client
Telnet Server
Fax over Ip
QoS
Transport Protocol
DTMF Method
IP Signaling
Provisioning
Grandstream Networks, Inc.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
VERVIEW
HT 701
1 FXS ports
1 Sip Account, 1 Profile
1 Concurrent Call
Voice Activity Detection (VAD) with CNG (comfort noise generation) and PLC (packet loss
concealment), Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, Packetized
Voice Protocol Unit (supports RTP/RTCP protocol), G.168 compliant Echo Cancellation,
LEC (line echo cancellation) with NLP, Asymmetric RTP stream
G.711 + Annex I (PLC), Annex II (VAD/CNG format) encoder and decoder, G.723.1, G.726-
32(ADPCM), G.729, iLBC, G.726-32 provides proprietary VAD, CNG, and signal power
estimation, Voice Play Out unit (reordering, fixed and adaptive jitter buffer, clock
synchronization), AGC (automatic gain control), Status output, Decoder controlling via voice
packet header
T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-
through, Fax Datapump V.17, V.19, V.27ter, V.29 for T.38 fax relay
Flexible DTMF transmission method, user interface of In-audio, RFC2833, and/or SIP Info
HT-70X User Manual
Firmware Version 1.0.0.18
HT 702
2 FXS ports
2 Sip Accounts, 2 Profiles
2 Concurrent Calls
Yes, DHCP Client only
Yes
Diffserve, TOS, 802.1 P/Q VLAN tagging
RTP/RTCP
SIP (RFC 3261)
TFTP, HTTP, HTTPS, TR-069, XML
HT 704
4 FXS ports
4 Sip Accounts, 2 Profiles
4 Concurrent Calls
