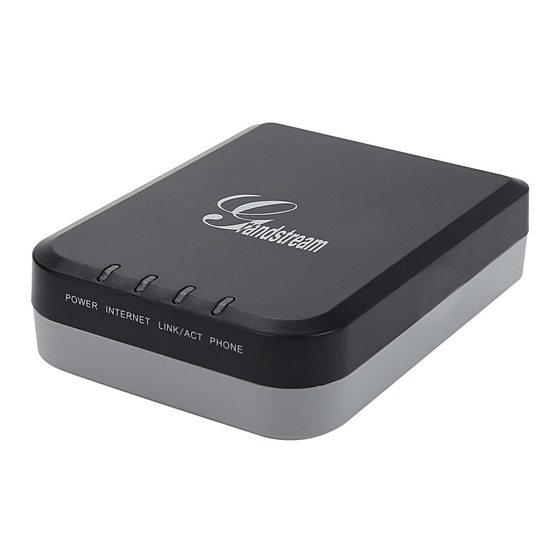

Grandstream Networks HT-701 Configuration Manual

From bicom systems
Hide thumbs Also See for HT-701:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Home
PBXware
SERVERware
TELCOware
SIPmon
SIPProt
Desktop & Mobile
BRM
UADs
Appliances
EOL
From Bicom Systems Wiki
Contents
1 Introduction
Introduction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-701 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grandstream Networks HT-701

Summary of Contents for Grandstream Networks HT-701

  • Page 1 Home PBXware SERVERware TELCOware SIPmon SIPProt Desktop & Mobile UADs Appliances From Bicom Systems Wiki Contents 1 Introduction 2 Requirements 2.1 Identifying phone model 2.2 Phone firmware 2.3 DHCP server 2.4 PBXware version 3 Installation 3.1 Basic Setup 3.2 Reset to factory settings 3.3 Manual Configuration 3.4 Auto Provisioning 4 Additional Configuration Template...
  • Page 2 This Configuration Guide is written as general guide on how to configure the Grandstream device model HT-701 to work with PBXware 4.1. Requirements Identifying phone model To start and successfully complete registration of your Grandstream device you need to know which phone model you will setup.
  • Page 3 Connect the ethernet cable between the Internet port on the device and the network port on a router or switch to access LAN. Connect analog phone to Phone port. After you connected analog phone to your HT-701 device pick up the phone and dial: *** - enter configuration menu 02 - IP address announcement Write down IP address for future reference.
  • Page 4 Creating Extension 1. Add Extension Navigate to Extensions and click Add Extension. The standard options window will be shown below. Select Grandstream model from the UAD drop down list. Select Location: Local or Remote. Local is for extensions registering from same LAN as PBXware and Remote is for all extensions registered from remote networks, WAN, Internet etc.
  • Page 5 Reset to factory settings This step is not required for brand new out-of-the-box devices, however, if the device has been already used then it is a must. Open a new browser window and enter your device IP address in order to access the web administration interface login screen.
  • Page 6 - Example for IP Address: 192.168.1.10 SIP User ID - PBXware extension number. Example: 1003 Authenticate ID - The same number as the SIP User ID. Authenticate Password - The Secret of the extension as received in the e-mail associated with this extension.
  • Page 7 Click on the Apply button at the bottom of the page. Dial *123 to verify registration. Auto Provisioning 1. Login to your device web administration interface Open new browser window and enter ATA IP address, for example 192.168.1.57 Login to web administration interface by entering password (default password for Grandstream web administration is: admin).
  • Page 8 PBXware. Dial *123 to verify registration. Additional Configuration Template If You want to include some additional UAD configuration for Grandstream HT-701, just add fields to User Agent General Auto Provisioning Template in Settings -> UAD ->...
