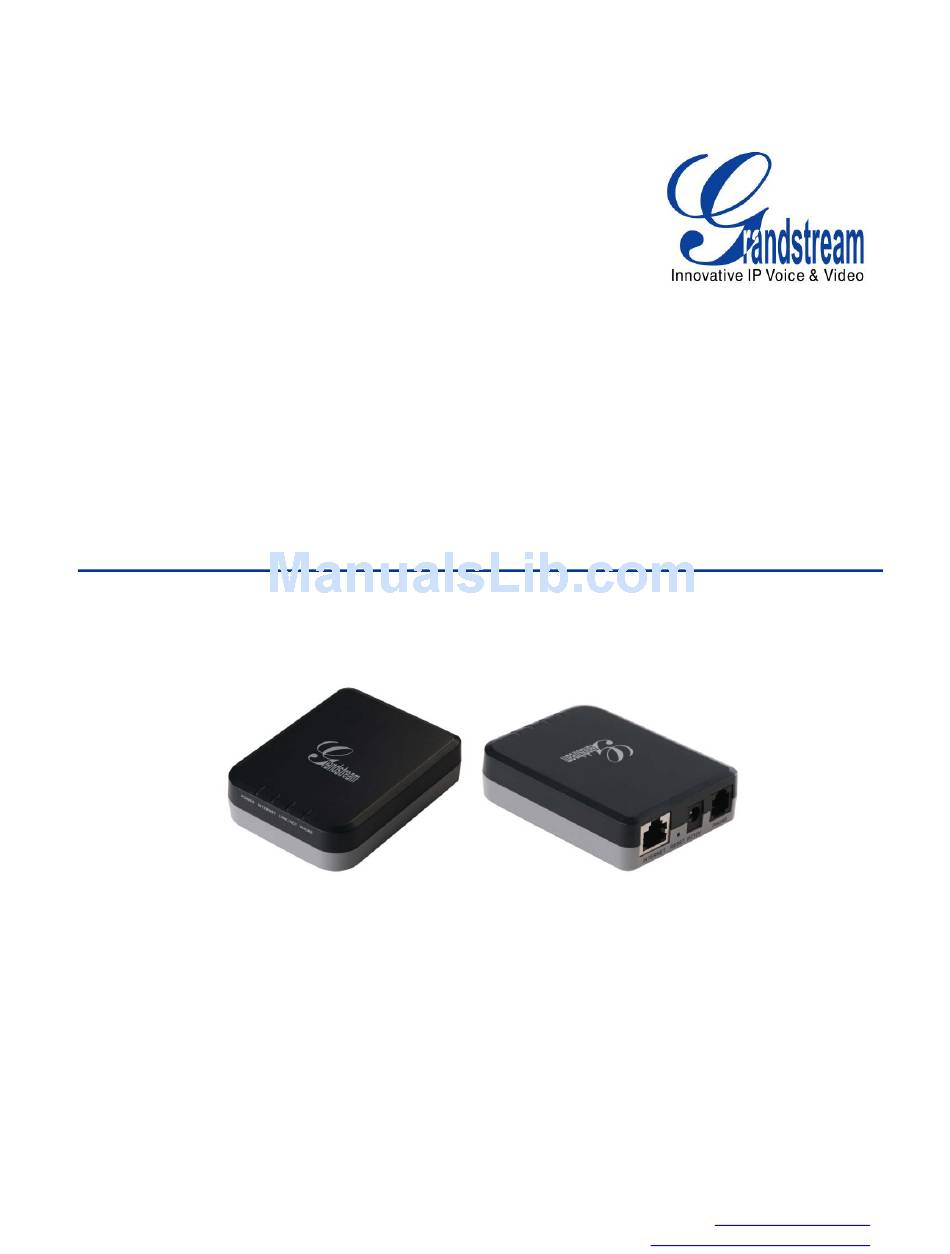

  • Page 1 Grandstream Networks, Inc. HT701 Analog Telephone Adaptor HT701 User Manual www.grandstream.com Firmware Version 1.0.0.17 http://esupport.grandstream.com...

  • Page 2: Table Of Contents

    ONTENTS HT701 User Manual   WELCOME..............................4   ..........................4 AFETY OMPLIANCES   ..............................4 ARRANTY   CONNECT YOUR HT701 ..........................5   ..........................5 QUIPMENT ACKAGING   HT701..........................5 ONNECTING THE   PRODUCT OVERVIEW ..........................8   ........................ 8...
  • Page 3 ONNECTORS 2: D HT701 LED ........................ 6 ABLE EFINITIONS OF THE 3: HT701 T ......................8 ABLE ECHNICAL PECIFICATIONS 5: HT701 IVR M ........................10 ABLE EFINITIONS 6: HT701 C ..........................14 ABLE EATURES 7: B ............................17 ABLE ASIC...

  • Page 4: Welcome

    User Manual, could void your manufacturer warranty. Please do not use a different power adaptor with the HT701 as it may cause damage to the products and void the manufacturer warranty.

  • Page 5: Connect Your Ht701

    2. Insert a standard RJ11 telephone cable into the Phone1 port and connect the other end of the telephone cable to the analog telephone. 3. Insert the Ethernet cable into the WAN port of HT701 and connect the other end of the Ethernet cable to an uplink port (a router or a modem, etc.) 4.
  • Page 6 There are four (4) LED buttons that help you manage the status of your HandyTone. Table 2: Basic Definitions of the HT701 LEDs Pattern LEDs POWER LED Indicates Power. Remains ON when power is connected Internet LED Indicates Access to Internet. Remains ON while there is Access...
  • Page 7 Phone LED-18 During Firmware Recovery Stage* Internet / 0.4sec ON/ 0.4sec OFF Phone *Note: In Provisioning and Firmware Recovery Stage, the power LED is Steady ON. Figure 2: HT701 Connection Diagram Cordless Phone Analog Internet ADSL/Cable Modem Ethernet Grandstream Networks, Inc.

  • Page 8: Product Overview

    RODUCT VERVIEW The HT701 is a full feature voice and fax-over IP device that offers a high-level of integration including a 10M/100Mbps network port and one FXS telephone port, market-leading sound quality, rich functionalities, and a compact and lightweight design. The VoIP network signaling protocol supported is SIP. The HT701 fully compatible with SIP industry standard and can interoperate with many other SIP compliant devices and software on the market.

  • Page 9: Hardware Specification

    Device Management Web interface or via secure encrypted AES or non-encrypted central configuration file for mass deployment using Grandstream binary file or xml format. Auto/manual provisioning system or via built-in IVR. NAT-friendly remote software upgrade (via TFTP/HTTP/HTTPS) for deployed devices including behind firewall/NAT.

  • Page 10: Basic Operations

    Understanding HT701 Voice Prompt HT701 has a built-in voice prompt menu for simple device configuration. The IVR menu and the LED button work with any of the FXS port. Pick up the handset and dial “***” to use the IVR menu.

  • Page 11: Placing A Phone Call

    2. Both HT701 and other VoIP Device are on the same LAN using private IP addresses, or 3. Both HT701 and other VoIP Device can be connected through a router using public or private IP addresses (with necessary port forwarding or DMZ).

  • Page 12: Call Hold

    Note: continuous busy tone does not indicate the transfer has been successful, nor does it indicate the transfer has failed. It often means there was a failure to receive second NOTIFY – check firmware for most recent release. Grandstream Networks, Inc. HT-701 User Manual Page 12 of 31 Firmware Version 1.0.0.17...

  • Page 13: 3-Way Conferencing

    4. If Caller C does not answer the call, Caller A can press “flash” to resume call with Caller B. NOTE: When Attended Transfer fails and A hangs up, the HT701 will ring back user A to remind A that B is still on the call.

  • Page 14: Call Features

    EATURES The HT701 supports all the traditional and advanced telephony features. Table 7: HT701 Call Features Call Features Forcing a Codec (per call) *027110 (PCMU), *027111 (PCMA), *02723 (G723), *02729 (G729), *0272616 (G726-r16), *0272624 (G724-r24), *0272632 (G726-r32), *0272640 (G726-r40), *027201 (iLBC) Disable LEC (pe call) Dial “*03”...

  • Page 15: Configuration Guide

    Select voice menu option 01 to enable HT701 to use DHCP. STATIC IP M Select voice menu option 01 to enable HT701 to use STATIC IP mode, then use option 02, 03, 04, 05 to set up IP address, Subnet Mask, Gateway and DNS server respectively.

  • Page 16: Important Settings

    Set priority of DTMF methods according to your preference. This setting should be based on your server DTMF setting. VOCODER (C REFERRED ODEC The HT701 supports a broad range of voice codecs. Under Profile web pages, choose your preferred order of different codecs:  PCMU/A (or G711µ/a) Grandstream Networks, Inc.
  • Page 17 DHCP mode: all the field values for the Static IP mode are not used (even though they are still saved in the Flash memory.) The HT701 acquires its IP address from the first DHCP server it discovers from the LAN it is connected. Using the PPPoE feature: set the PPPoE account settings.
  • Page 18 This field shows the status of the unit and its actual memory. System Up Time Shows system up time since the last reboot. PPPoE Link Up Indicates whether the PPPoE connection is up if the HT701 is connected to DSL modem. Grandstream Networks, Inc. HT-701 User Manual Page 18 of 31 Firmware Version 1.0.0.17...

  • Page 19: Advanced User Configuration

    IP address or Domain name of the STUN server. Keep-alive interval This parameter specifies how often the HT701 sends a blank UDP packet to the SIP server in order to keep the “hole” on the NAT open. Default is 20 seconds. Minimum value is 20 seconds.
  • Page 20 23. If select “Yes, weekly on day” make sure you input the day of the week (in format 0-6, 0 is Sunday) you want it to check for update. When set to No, HT701 will only do the following option you select; “Always check for New Firmware at Boot up” will check for new firmware every time the device reboots.
  • Page 21 NTP serve Syslog Server The IP address or URL of System log server. This feature is especially useful for the ITSP (Internet Telephone Service Provider) Grandstream Networks, Inc. HT-701 User Manual Page 21 of 31 Firmware Version 1.0.0.17...
  • Page 22 Syslog Level Select the HT701 to report the log level. Default is NONE. The level is one of DEBUG, INFO, WARNING or ERROR. Syslog messages are sent based on the following events: product model/version on boot up (INFO level) NAT related info (INFO level)
  • Page 23 Retry registration if the process failed. Default is 20 seconds. Time Local SIP port Defines the local SIP port the HT701 will listen and transmit. The default value for FXS port is 5060.. Local RTP port Defines the local RTP-RTCP port pair the HT701 will listen and transmit. It is the base RTP port for channel 0.
  • Page 24 This parameter allows users to configure a User ID or extension number that is automatically dialed when off-hook. Only the user part of a SIP address needs to be entered here. The HT701 will automatically append the “@” and the host portion of the corresponding SIP address.
  • Page 25 <=1617>[2-9]xxxxxx - allows dialing to local area code (617) numbers by dialing 7 numbers and 1617 area code will be added automatically • 1[2-9]xx[2-9]xxxxxx |- allows dialing to any US/Canada Number with 11 digits length Grandstream Networks, Inc. HT-701 User Manual Page 25 of 31 Firmware Version 1.0.0.17 Last Updated: 02/2012...
  • Page 26 INVITE. Preferred Vocoder The HT701 supports up to 5 different Vocoder types including G.711 A-/U-law, G.726 (Supports bit rates 16, 24, 32 and 40), G.723.1, G.729A/B/E, iLBC and AAL2. The user can configure Vocoders in a preference list that will be included with the same preference order in SDP message.
  • Page 27 Default is No. If set to “Yes”, polarity will be reversed upon call establishment and termination. Loop Current Default is No. Set it to Yes if the traditional PBX you are using with HT701 uses this Disconnect method for signaling call termination. Method initiates short voltage drop on the line when remote (VoIP) side disconnects an active call.

  • Page 28: Saving The Configuration Changes

    Saving the Configuration Changes Click the “Update” button in the Configuration page to save the changes to the HT701 configuration. The following screen confirms that the changes are saved. Reboot or power cycle the HT701 to make the changes take effect.

  • Page 29: Software Upgrade

    TFTP/HTTP/HTTPS fails for any reason (e.g. TFTP/HTTP/HTTPS server is not responding, there are no code image files available for upgrade, or checksum test fails, etc), the HT701 will stop the TFTP/HTTP/HTTPS process and simply boot using the existing code image in the flash.

  • Page 30: Configuration File Download

    Microsoft IIS web server. Configuration File Download Grandstream SIP Device can be configured via Web Interface as well as via Configuration File through TFTP or HTTP/HTTPS. “Config Server Path” is the TFTP or HTTP/HTTPS server path for configuration file. It needs to be set to a valid URL, either in FQDN or IP address format. The “Config Server Path” can be same or different from the “Firmware Server Path”.

  • Page 31: Restore Factory Default Setting

    1. Factory Reset will be disabled if the “Lock keypad update” is set to “Yes”. 2. Please be aware by default the HT701 WAN side HTTP access is disabled. After a factory reset, the device’s web configuration page can be accessed only from its LAN port.
