B O
ASIC PERATIONS

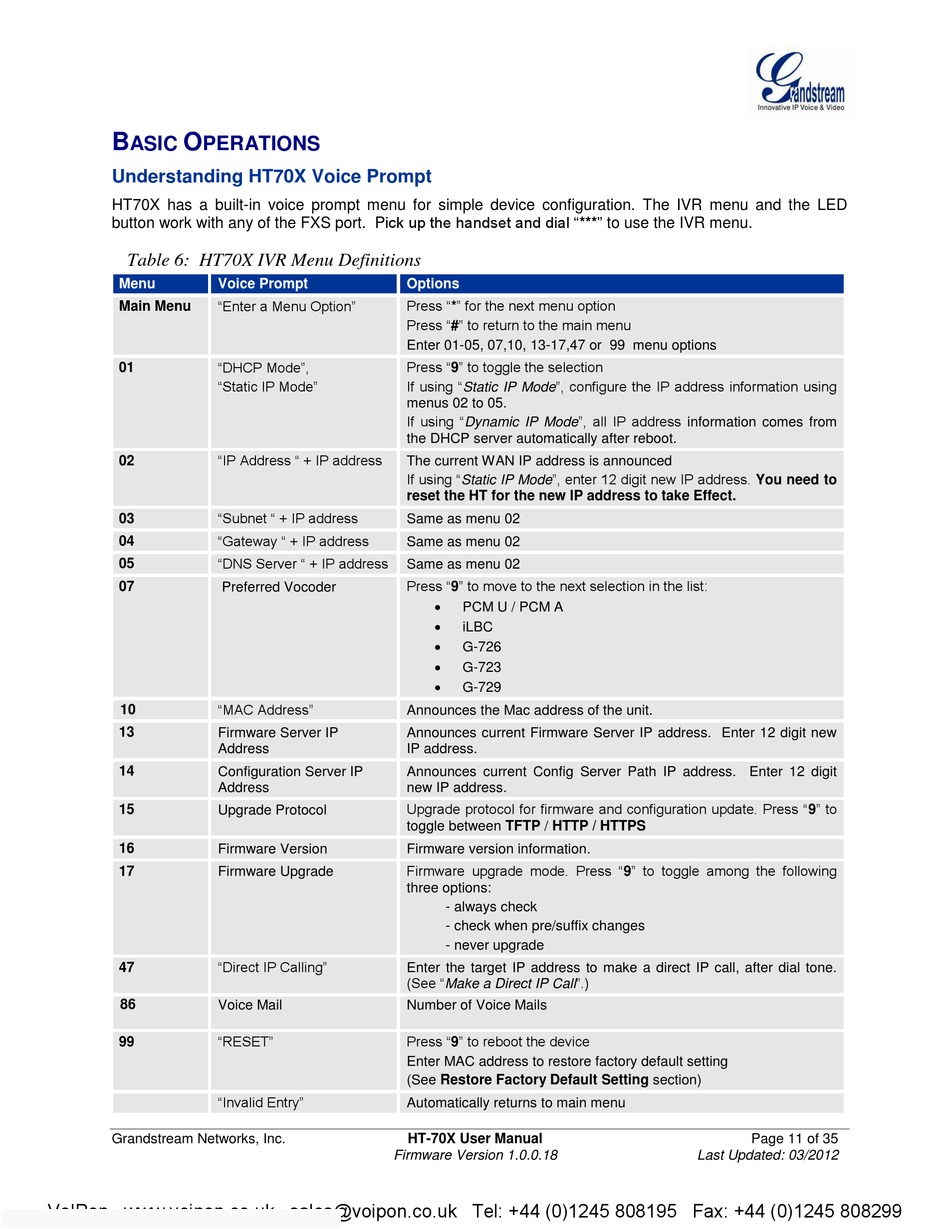

Understanding HT70X Voice Prompt

HT70X has a built-in voice prompt menu for simple device configuration. The IVR menu and the LED
button work with any of the FXS port. Pick up the handset and dial "***" to use the IVR menu.
Table 6: HT70X IVR Menu Definitions
Menu Voice Prompt
"Enter a Menu Option"
Main Menu
"DHCP Mode",
01
"Static IP Mode"
"IP Address " + IP address
02
"Subnet " + IP address
03
"Gateway " + IP address
04
"DNS Server " + IP address
05
07 Preferred Vocoder
"MAC Address"
10
13 Firmware Server IP
Address
14 Configuration Server IP
Address
15
Upgrade Protocol
16 Firmware Version
17 Firmware Upgrade
"Direct IP Calling"
47
86
Voice Mail
"RESET"
99
"Invalid Entry"
Grandstream Networks, Inc.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Options
Press "*" for the next menu option
Press "#" to return to the main menu
Enter 01-05, 07,10, 13-17,47 or 99 menu options
Press "9" to toggle the selection
If using "Static IP Mode", configure the IP address information using
menus 02 to 05.
If using "Dynamic IP Mode", all IP address information comes from
the DHCP server automatically after reboot.
The current WAN IP address is announced
If using "Static IP Mode", enter 12 digit new IP address. You need to
reset the HT for the new IP address to take Effect.
Same as menu 02
Same as menu 02
Same as menu 02
Press "9" to move to the next selection in the list:

PCM U / PCM A

iLBC

G-726

G-723

G-729
Announces the Mac address of the unit.
Announces current Firmware Server IP address. Enter 12 digit new
IP address.
Announces current Config Server Path IP address. Enter 12 digit
new IP address.
Upgrade protocol for firmware and configuration update. Press "9" to
toggle between TFTP / HTTP / HTTPS
Firmware version information.
Firmware upgrade mode. Press "9" to toggle among the following
three options:
- always check
- check when pre/suffix changes
- never upgrade
Enter the target IP address to make a direct IP call, after dial tone.
(See "Make a Direct IP Call".)
Number of Voice Mails
Press "9" to reboot the device
Enter MAC address to restore factory default setting
(See Restore Factory Default Setting section)
Automatically returns to main menu
